Installation

LIGHTING (EXT): AFS ECU: INSTALLATION

INSTALLATION

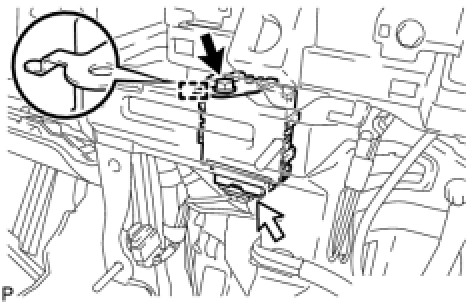

1. INSTALL AFS ECU

(a) Engage the guide.
(b) Install the AFS ECU with the bolt.
(c) Connect the connector.
2. INSTALL SHIFT LEVER ASSEMBLY (for 2WD)
HINT: Refer to the procedure from Install Shift Lever Assembly .

3. INSTALL SHIFT LEVER ASSEMBLY (for AWD)
HINT: Refer to the procedure from Install Shift Lever Assembly .
