Installation

MF1A TRANSFER / 4WD / AWD: 4WD CONTROL ECU: INSTALLATION

INSTALLATION

1. INSTALL 4WD CONTROL ECU

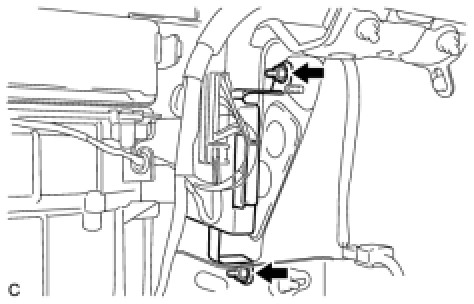

(a) Install the ECU with the 2 nuts.
Torque: 8.5 Nm (87 kgf-cm, 75in-lbf)

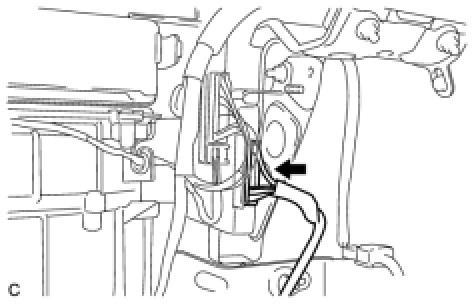

(b) Connect the connector.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation
3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
5. INSTALL FRONT DOOR SCUFF PLATE RH
