1AR-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR

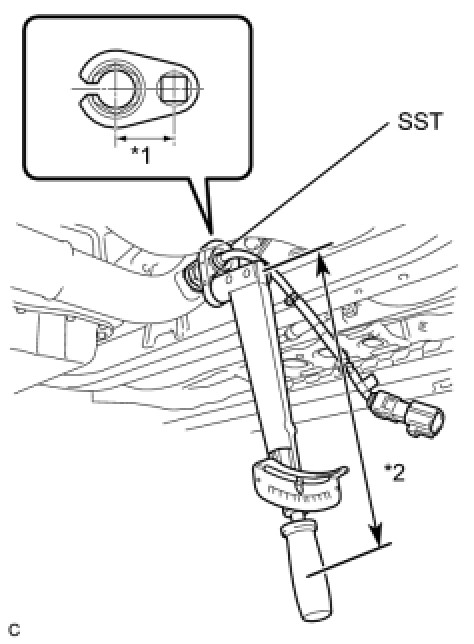

(a) Using SST, install the heated oxygen sensor to the front exhaust pipe.

Text in Illustration





SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30ft-lbf)

NOTICE:

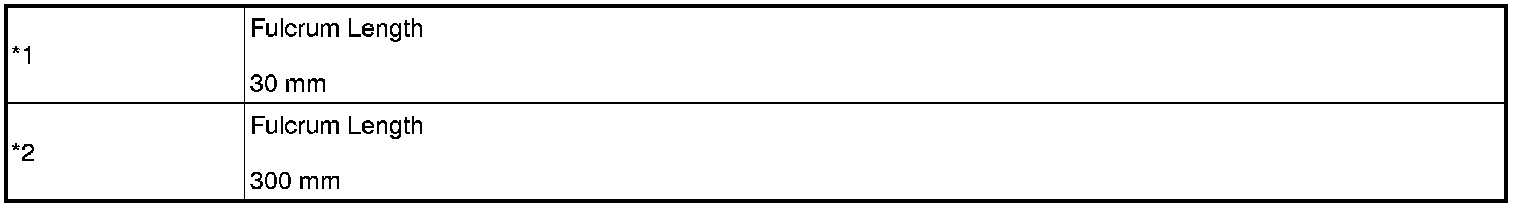

- The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
- The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) Service Precautions.
- This torque value is effective when SST is parallel to the torque wrench.

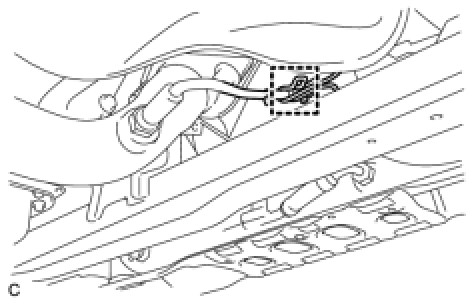

(b) Connect the heated oxygen sensor connector.

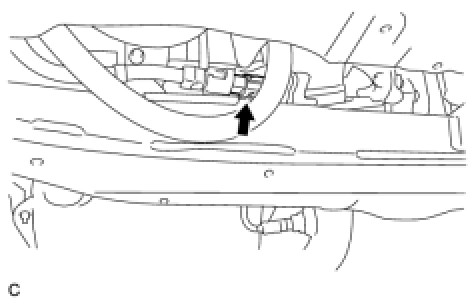

(c) Install the wire harness to wire harness clamp.
2. INSPECT FOR EXHAUST GAS LEAK
3. INSTALL NO. 2 ENGINE UNDER COVER
4. INSTALL NO. 1 ENGINE UNDER COVER
