Removal

1AR-FE ENGINE CONTROL: KNOCK SENSOR: REMOVAL

REMOVAL

1. REMOVE INTAKE MANIFOLD
(a) Remove the intake manifold Removal.

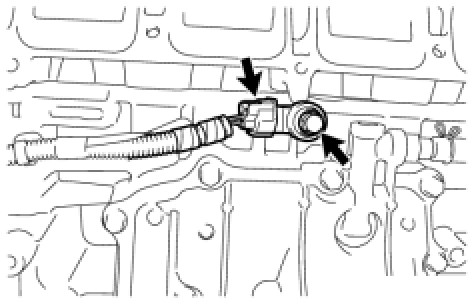

2. REMOVE KNOCK SENSOR





(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
