Removal








1AR-FE ENGINE CONTROL: MASS AIR FLOW METER: REMOVAL

REMOVAL

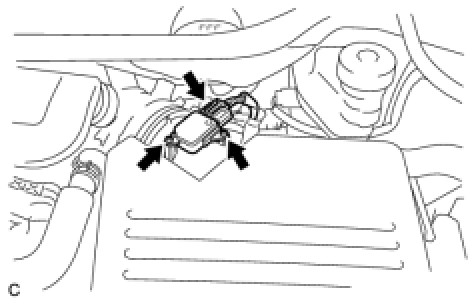

1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY





(a) Disconnect the mass air flow meter connector.
(b) Remove the 2 screws and mass air flow meter.
