HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (w/o Seat Heater System) Removal
3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (w/ Seat Heater System) Removal
4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY





(a) Remove the screw.

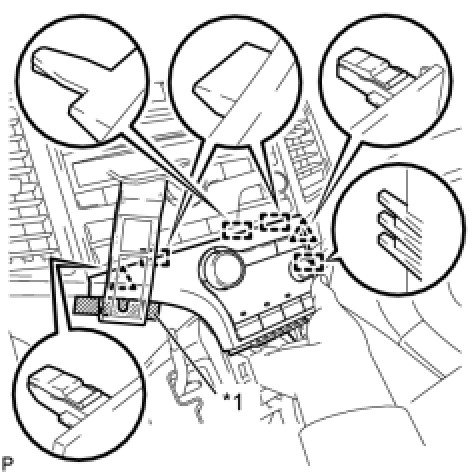

(b) Apply protective tape to the area shown in the illustration.

Text in Illustration





(c) Using a moulding remover, disengage the 2 clips and 4 guides as shown in the illustration.
(d) Disconnect the connector and remove the air conditioning control assembly.
