Active Control Engine Mount System: Location

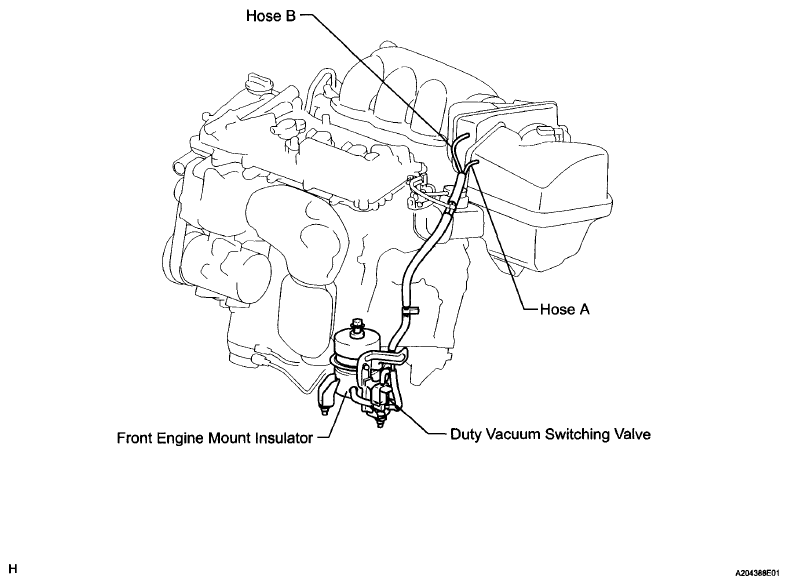

Fig 1: Identifying Front Engine Mount Insulator, Duty Vacuum Switching Valve And Hose
G06023847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
