REAR SPEED SENSOR (for AWD): Components
Fig 1: Identifying Rear Speed Sensor Replacement Components (For AWD) (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

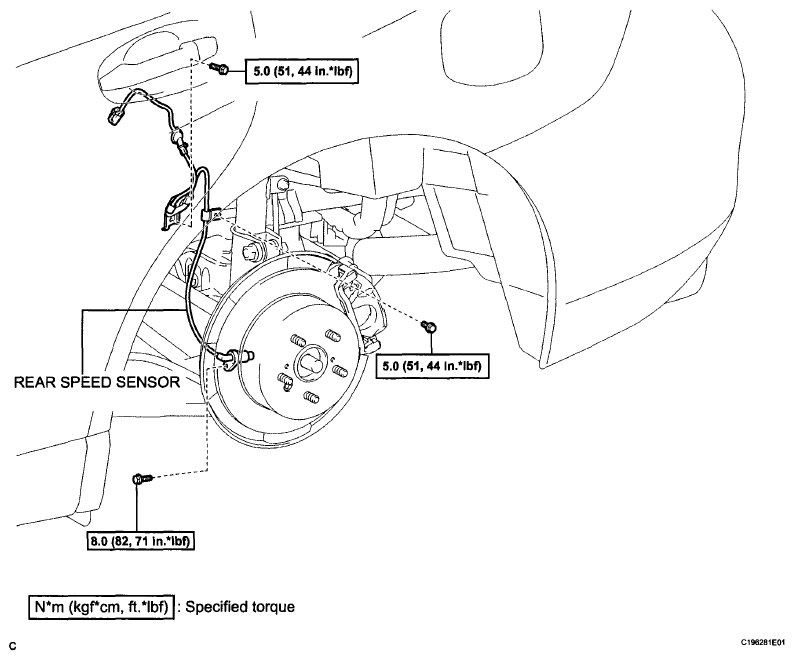

Fig 2: Identifying Rear Speed Sensor Replacement Components With Torque Specification (For AWD) (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Rear Speed Sensor Replacement Components With Torque Specifications (For AWD) (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
