Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING TECHSTREAM (CRUISE CONTROL MAIN SWITCH)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Cruise Control / Data List.
    5. Check the Data List for proper functioning of the cruise control main switch.
      Fig 1: Connecting Techstream To DLC3
      G05647233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      ECM (Cruise control)

      ECM ITEM RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      CCS Main SW M-CPU Main switch signal (Main CPU)/ ON or OFF ON: Main switch on
      OFF: Main switch off
      -
      Cancel Switch CANCEL switch signal/ON or OFF ON: CANCEL switch on
      OFF: CANCEL switch off
      -
      SET/COAST Switch SET/COAST switch signal/ON or OFF ON: - (COAST)/SET switch on
      OFF: - (COAST)/SET switch off
      -
      RES/ACC Switch RES/ACC switch signal/ON or OFF ON: + (ACCEL)/RES (RESUME) switch on
      OFF: + (ACCEL)/RES (RESUME) switch off
      -

      OK: When the cruise control main switch is operated, the display changes as shown above.

      Result

      DTC RESULT REFERENCE

      Result Proceed to
      OK A
      NG (All items are defective) B
      NG (1 to 3 items are defective) C

    B: Go to step 2

    C: REPLACE CRUISE CONTROL MAIN SWITCH  (See REMOVAL  )

    A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )

  2. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Remove the cruise control main switch (See REMOVAL  ).
    2. Measure the resistance according to the value(s) in the table below.

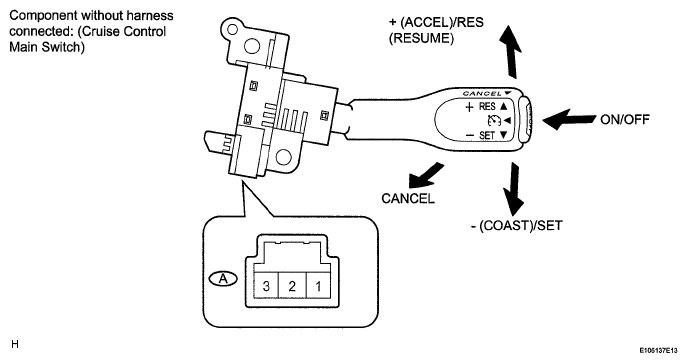

      Fig 2: Identifying Cruise Control Main Switch Without Harness
      G05419687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      A-3 (CCS) - A-1 (ECC) Neutral 10 kΩ or higher
      A-3 (CCS) - A-1 (ECC) + (ACCEL)/RES (RESUME) 235 to 245 Ω
      A-3 (CCS) - A-1 (ECC) - (COAST)/SET 620 to 640 Ω
      A-3 (CCS) - A-1 (ECC) CANCEL 1510 to 1570 Ω
      A-3 (CCS) - A-1 (ECC) Main switch on Below 1 Ω
    3. Reinstall the cruise control main switch.

    NG: REPLACE CRUISE CONTROL MAIN SWITCH  (See REMOVAL  )

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (CRUISE CONTROL MAIN SWITCH - SPIRAL CABLE)
    1. Disconnect the z1 connector from the spiral cable.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      A-3-Z1-3 Always Below 1 Ω
      A-1-z1-4 Always Below 1 Ω
    3. Reconnect the spiral cable connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 3: Identifying Z1 Connector Of Spiral Cable
    G05407275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  4. INSPECT SPIRAL CABLE
    NOTE: The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the page shown in the brackets.

    HINT:

    1. Remove the spiral cable.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Spiral Cable Position Specified Condition
      z1-3(CCS) - H54-1 (CCS) Center Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      z1-4(ECC) - H54-2 (ECC) Center Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right

      HINT:

      The spiral cable makes a maximum of approximately 5 rotations.

    3. Reinstall the spiral cable.

    NG: REPLACE SPIRAL CABLE  (See REMOVAL )

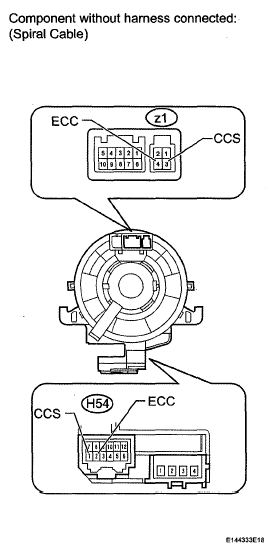

    Fig 4: Identifying Z1 Connector Terminal And H54 Connector Terminal
    G05647236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - ECM AND BODY GROUND)
    1. Disconnect the A27 connector from the ECM.
    2. Disconnect the H54 connector from the spiral cable.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      H54-1(CCS) - A27-45 (CCS) Always Below 1 Ω
      A27-45 (CCS) - Body ground Always 10 kΩ or higher
      H54-2 (ECC) - Body ground Always Below 1 Ω
    4. Reconnect the ECM and spiral cable connector.

      Result

      DTC RESULT REFERENCE

      Result Proceed to
      NG A
      OK (for 2UZ-FE) B
      OK (for 3UR-FE) C

    B: REPLACE ECM  (See REMOVAL )

    C: REPLACE ECM  (See REMOVAL )

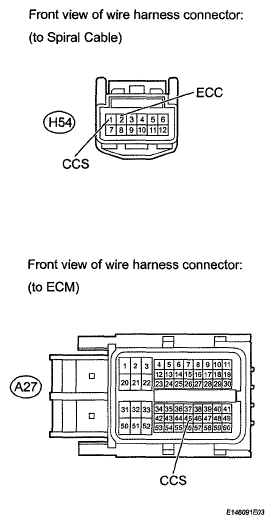

    Fig 5: Identifying A27 Connector Terminal And H54 Connector Terminal
    G05647237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    A: REPAIR OR REPLACE HARNESS OR CONNECTOR
