Cruise Control Main Switch: Inspection

WARNING: This page is about a different car, the 2008 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT CRUISE CONTROL MAIN SWITCH (w/o Dynamic Laser Cruise Control System)

Measure the resistance according to the value(s) in the table below.

Fig 1: Locating Cruise Control Main Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Inspecting Cruise Control Main Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

RESISTANCE REFERENCE

Tester Connection	Switch Condition	Specified Condition
1 (ECC) - 3 (CCS)	Neutral	10 kΩ or higher
1 (ECC) - 3 (CCS)	+RES	235 to 245 Ω
1 (ECC) - 3 (CCS)	-SET	620 to 640 Ω
1 (ECC) - 3 (CCS)	CANCEL	1510 to 1570 Ω
1 (ECC) - 3 (CCS)	Main Switch OFF	10 kΩ or higher
1 (ECC) - 3 (CCS)	Main Switch ON	Below 1 Ω

If the result is not as specified, replace the cruise control main switch.

REMOVE CRUISE CONTROL MAIN SWITCH (w/ Dynamic Laser Cruise Control System)

Measure the resistance according to the value(s) in the table below.

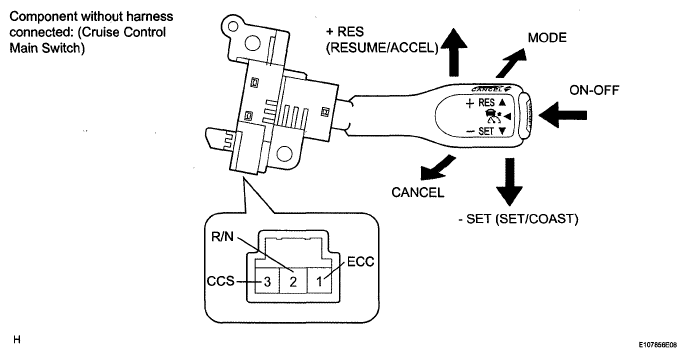

Fig 3: Removing Cruise Control Main Switch

Standard Resistance

RESISTANCE REFERENCE

Tester Connection	Switch Condition	Specified Condition
1 (ECC) - 2 (R/N)	Neutral	10 kΩ or higher
1 (ECC) - 3 (CCS)	Neutral	10 kΩ or higher
1 (ECC) - 3 (CCS)	+RES	235 to 245 Ω
1 (ECC) - 3 (CCS)	-SET	620 to 640 Ω
1 (ECC) - 3 (CCS)	CANCEL	1510 to 1570 Ω
1 (ECC) - 3 (CCS)	Main Switch OFF	10 kΩ or higher
1 (ECC) - 3 (CCS)	Main Switch ON	Below 1 Ω
1 (ECC) - 2 (R/N)	Main Switch ON and MODE Switch ON	Below 1 Ω

If the result is not as specified, replace the cruise control main switch.
