System Diagram

WARNING: This page is about a different car, the 2008 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

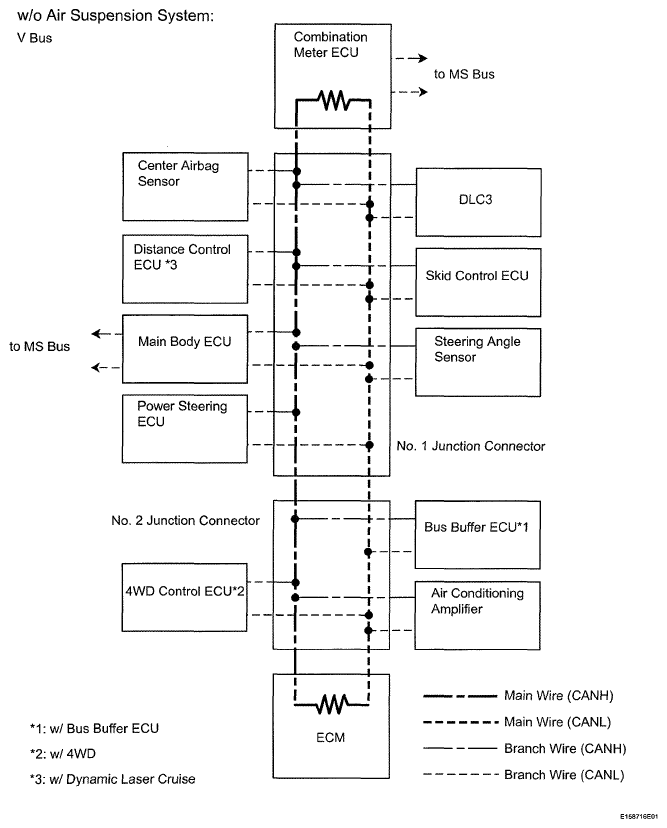

Fig 1: CAN Communication System Diagram (W/O Air Suspension System)
G05652950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

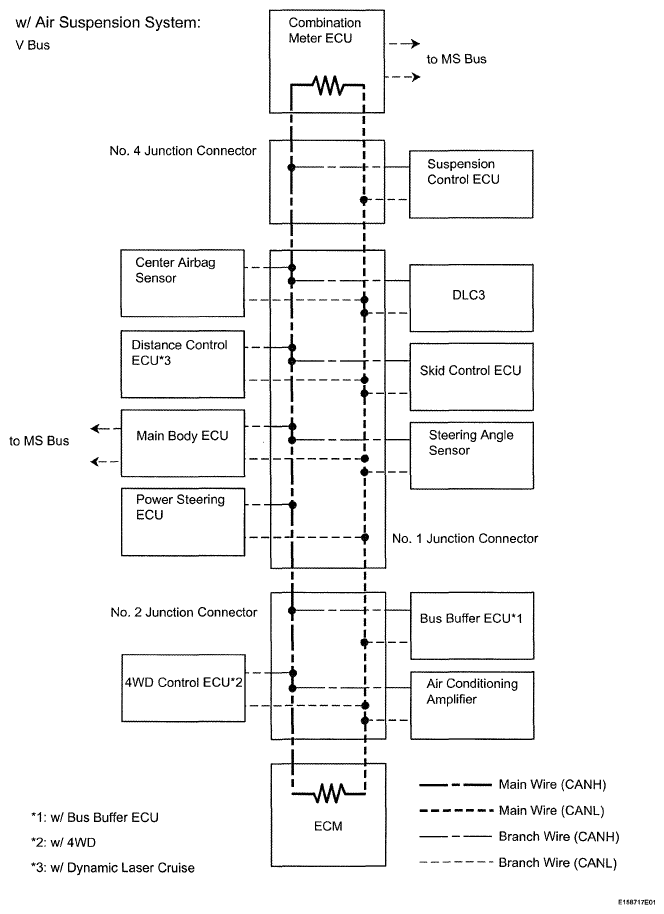

Fig 2: CAN Communication System Diagram (W/ Air Suspension System)
G05652951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

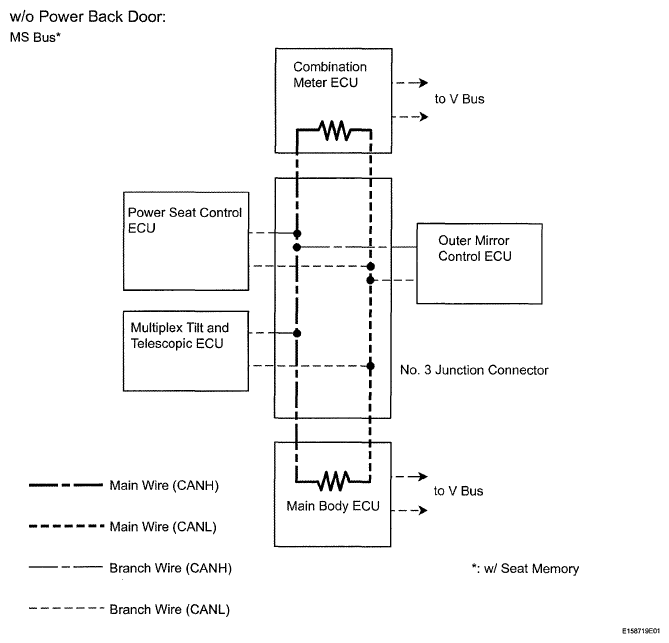

Fig 3: CAN Communication System Diagram (W/O Power Back Door)
G05652952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

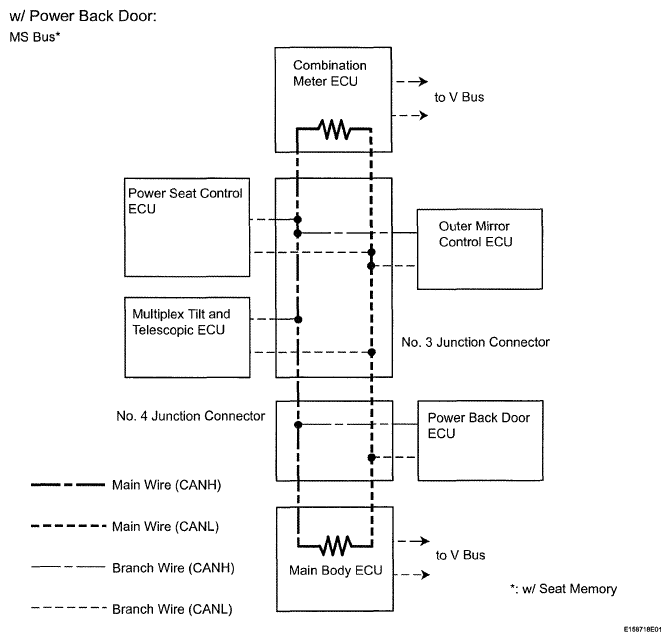

Fig 4: CAN Communication System Diagram (W/ Power Back Door)
G05652953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
