Shift Lock (Column Shift): Notes

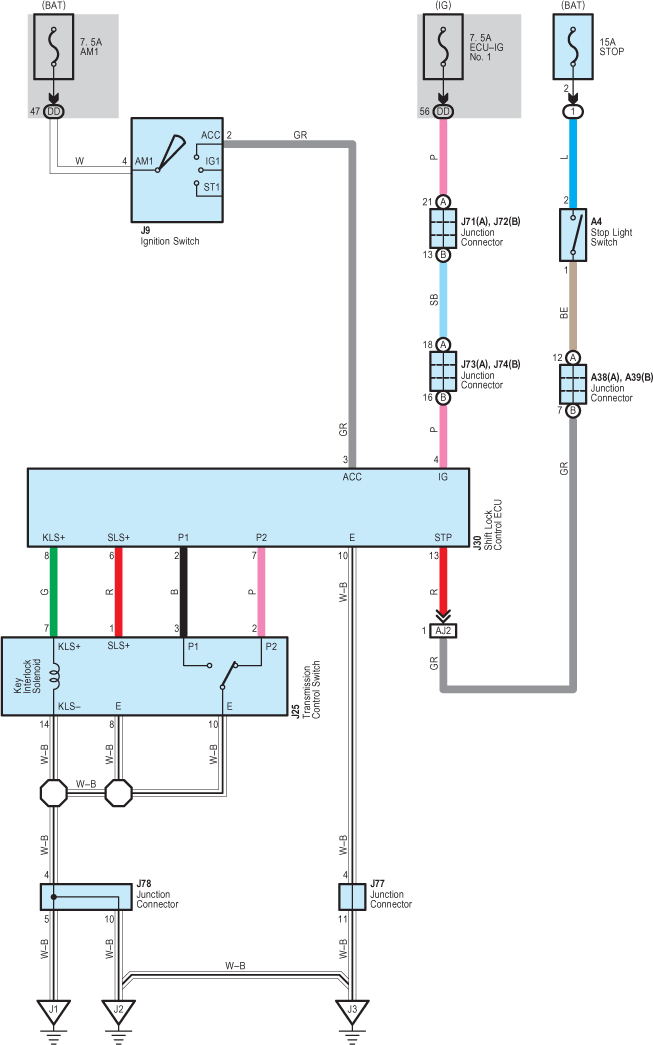

Fig 1: Shift Lock (Column Shift) - Circuit Diagram
G07624367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
