System Diagram

  1. FUEL FLOW DIAGRAM

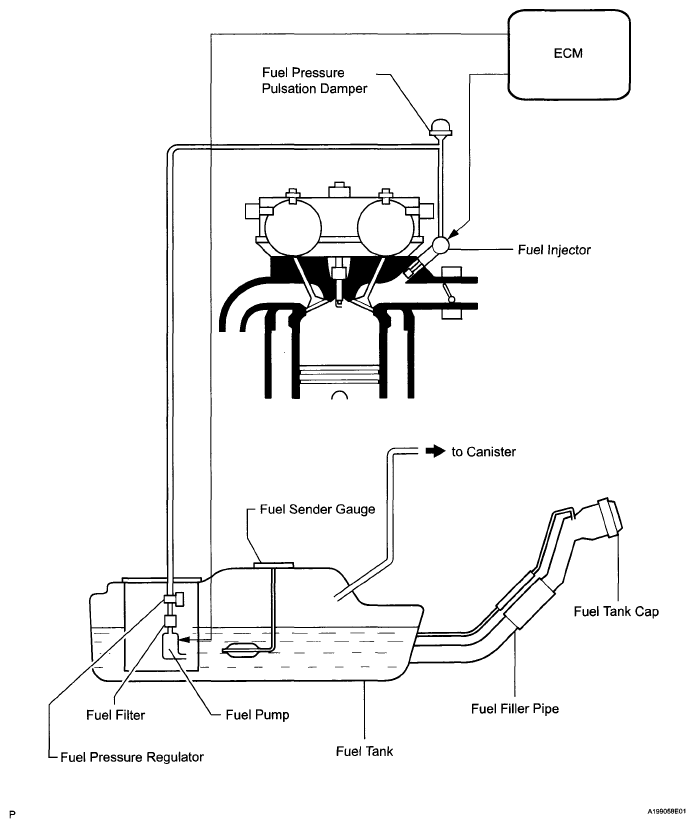

    Fig 1: Fuel Flow System Diagram
    G05998416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FUEL SYSTEM WIRING DIAGRAM

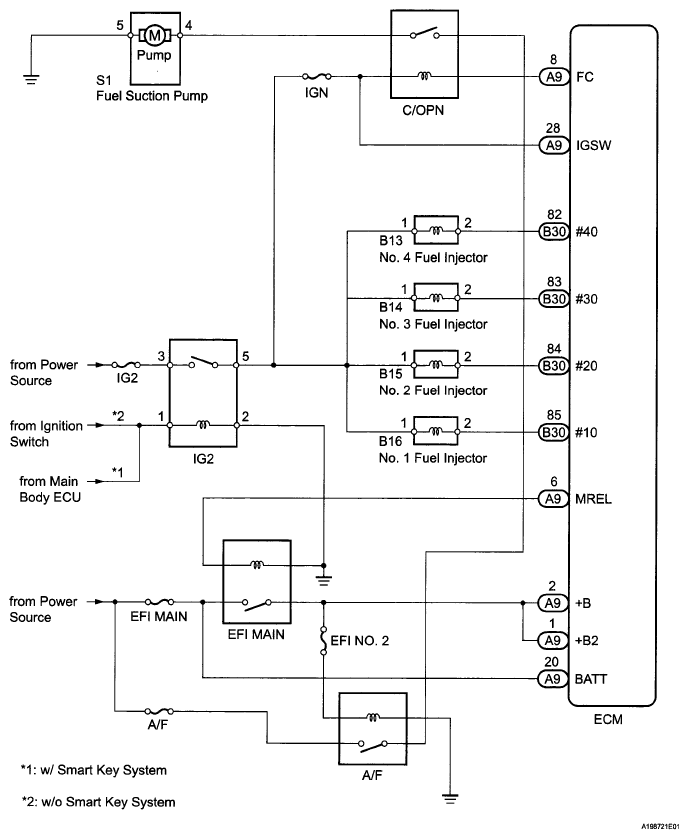

    Fig 2: Fuel System - Wiring Diagram
    G05998417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
