Fuel Filter: Components

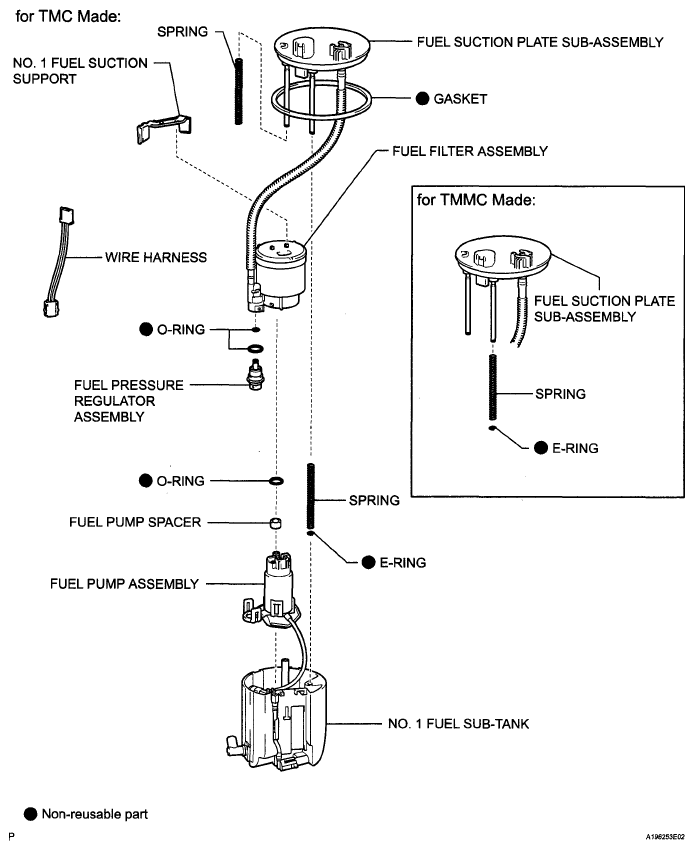

Fig 1: Identifying Fuel Filter Components

G05998567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
