Rear Power Outlet Socket: Components

Fig 1: Rear Door Replacement Components With Torque Specifications
G06000543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

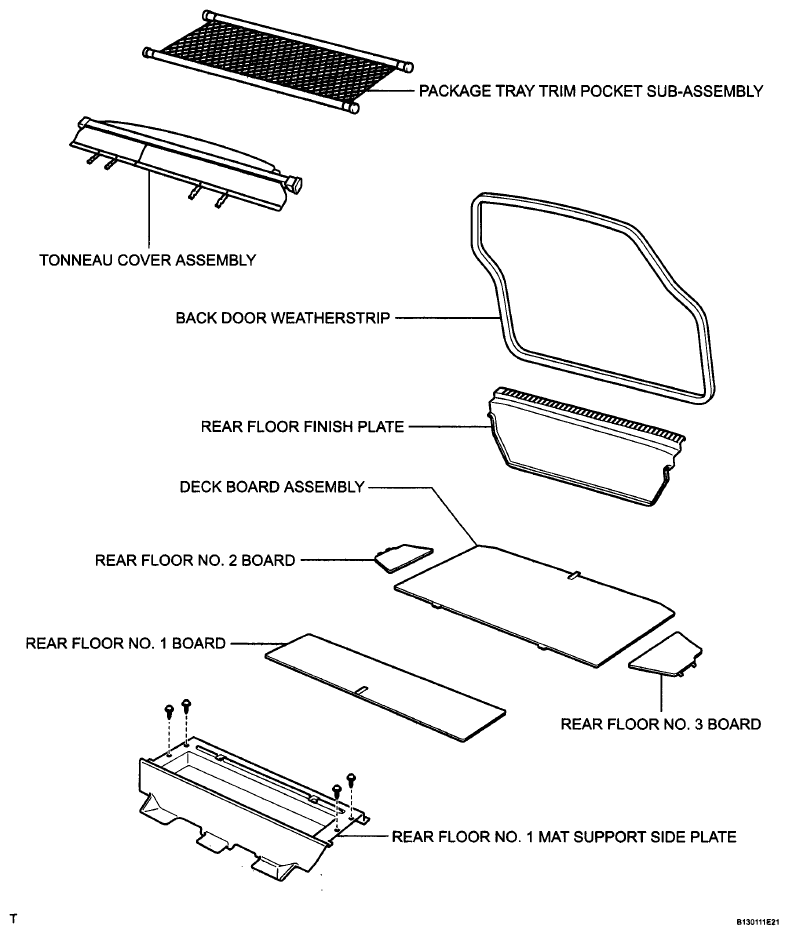

Fig 2: Identifying Rear Floor Components
G06000544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
