On-Vehicle Inspection

INSPECT BRAKE PEDAL LOAD SENSING SWITCH

HINT:

Do not remove the brake pedal load sensing switch from the brake pedal support.
When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal support.

Disconnect the brake pedal load sensing switch connector.

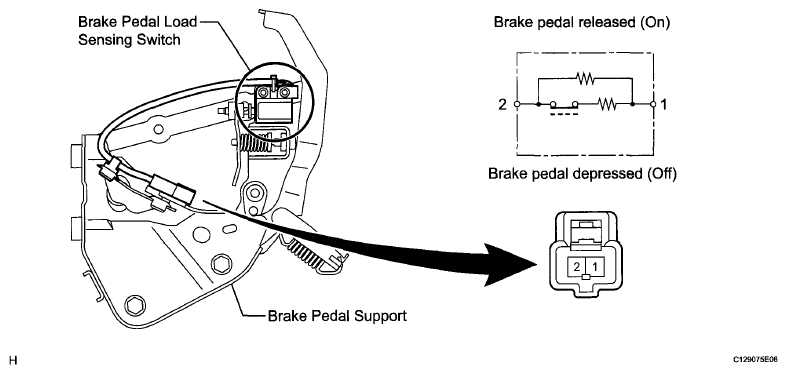

Fig 1: Inspecting Brake Pedal Load Sensing Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
1 - 2	Brake pedal depressed	Approx. 1 kΩ
1 - 2	Brake pedal released	Approx. 213 Ω

If the result is not as specified, replace the brake pedal support assembly (See REMOVAL ).
