Roof Headlining: Components

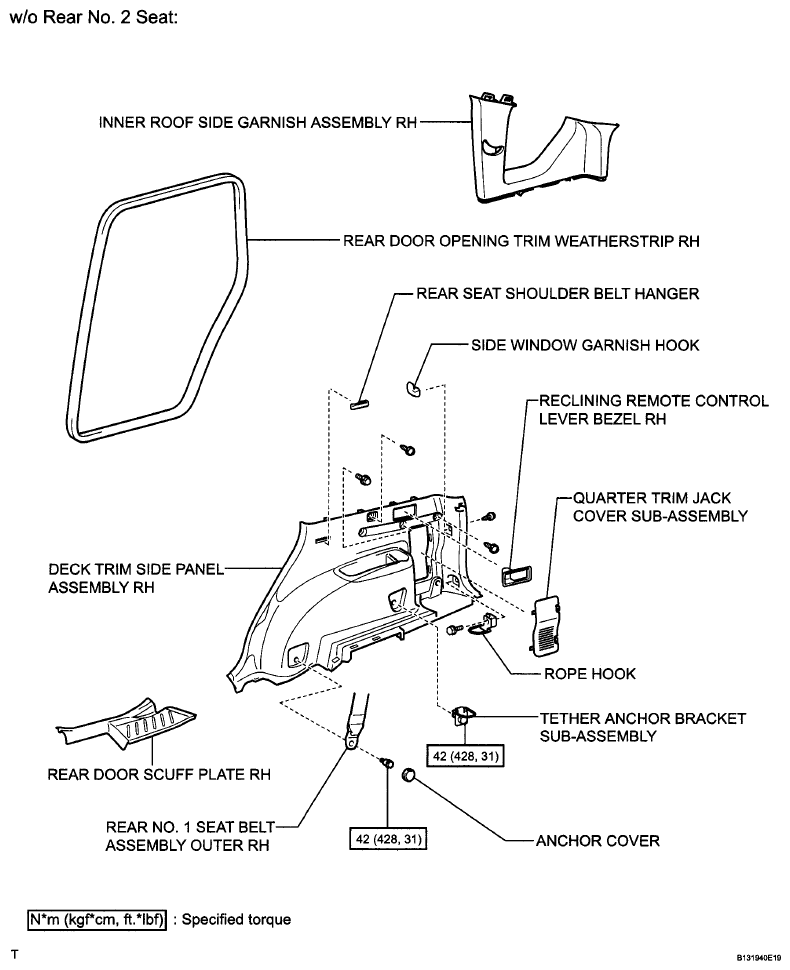

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

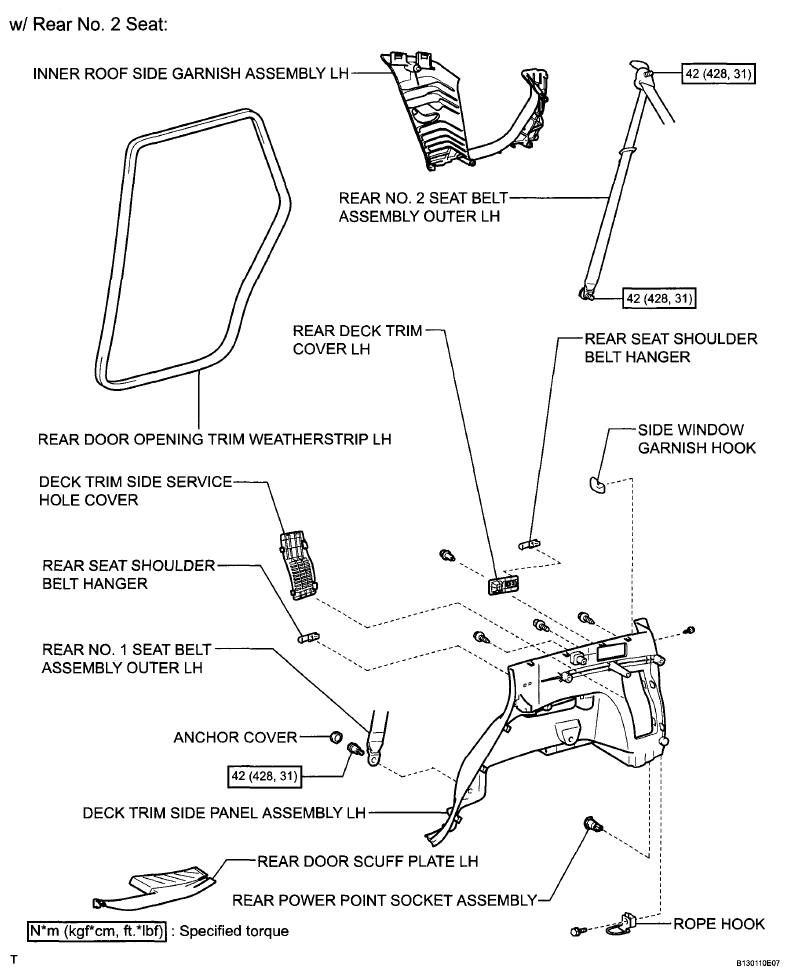

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

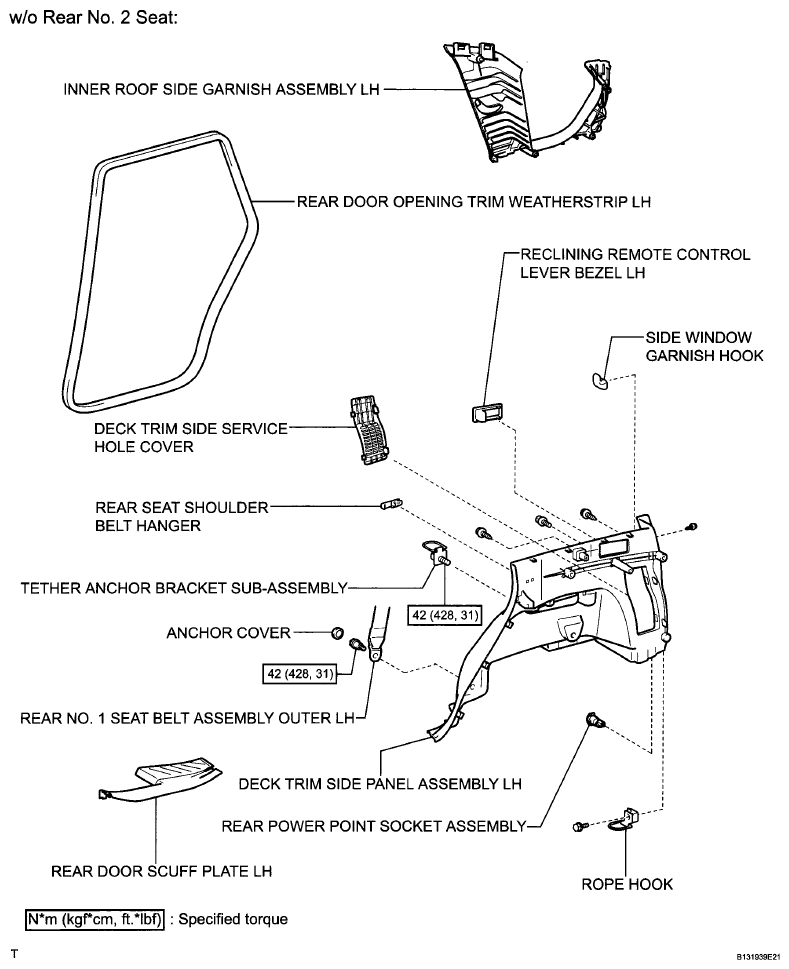

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

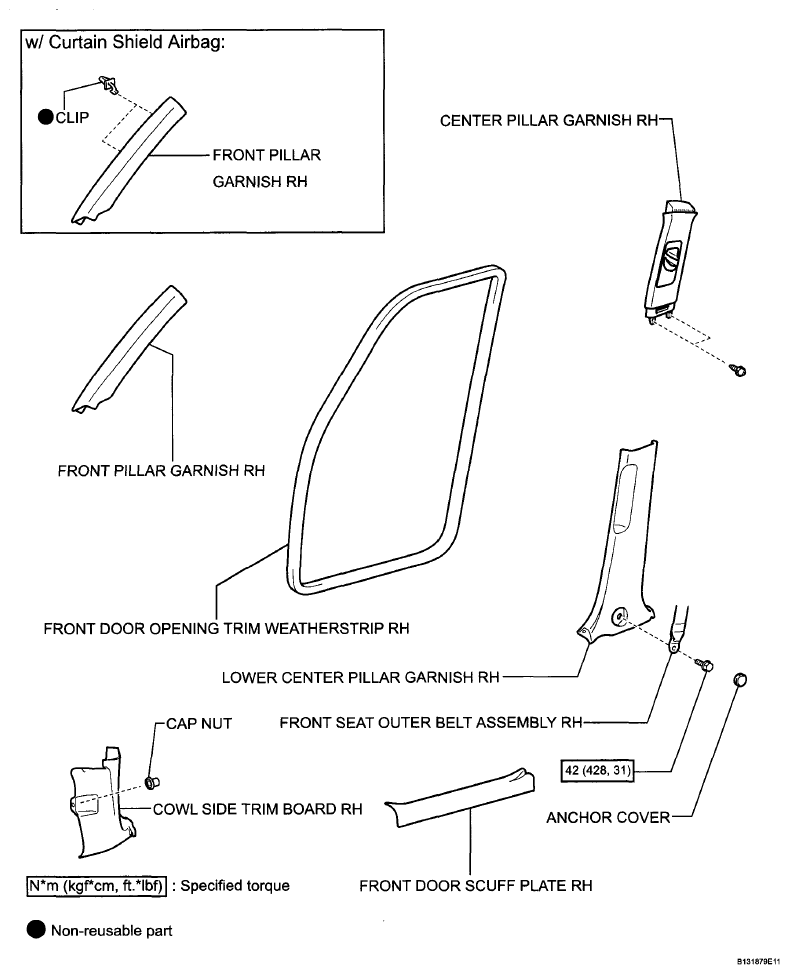

Fig 4: Roof Headlining Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Roof Headlining Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Roof Headlining Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Fuel Lid Lock Control Replacement Components With Torque Specifications (12 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Fuel Lid Lock Control Replacement Components With Torque Specifications (13 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Roof Headlining Replacement Components With Torque Specifications (9 Of 12)

Fig 10: Roof Headlining Replacement Components With Torque Specifications (10 Of 12)

Fig 11: Roof Headlining Replacement Components With Torque Specifications (11 Of 12)

Fig 12: Roof Headlining Replacement Components With Torque Specifications (12 Of 12)
