Fuel Lid Lock Control: Components

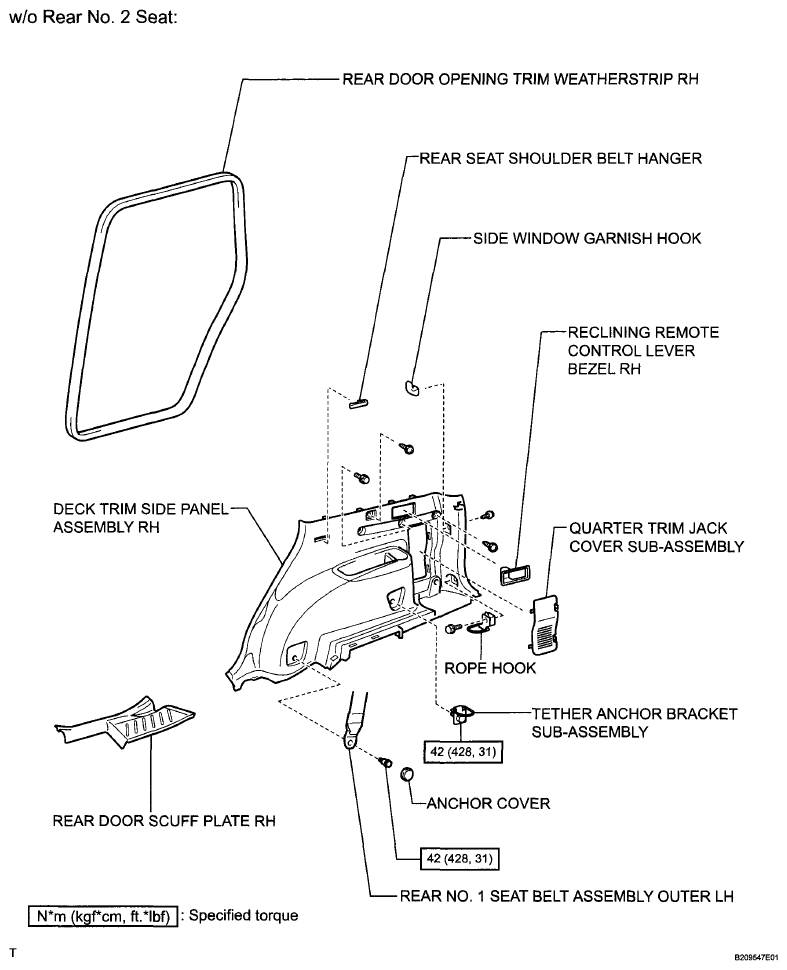

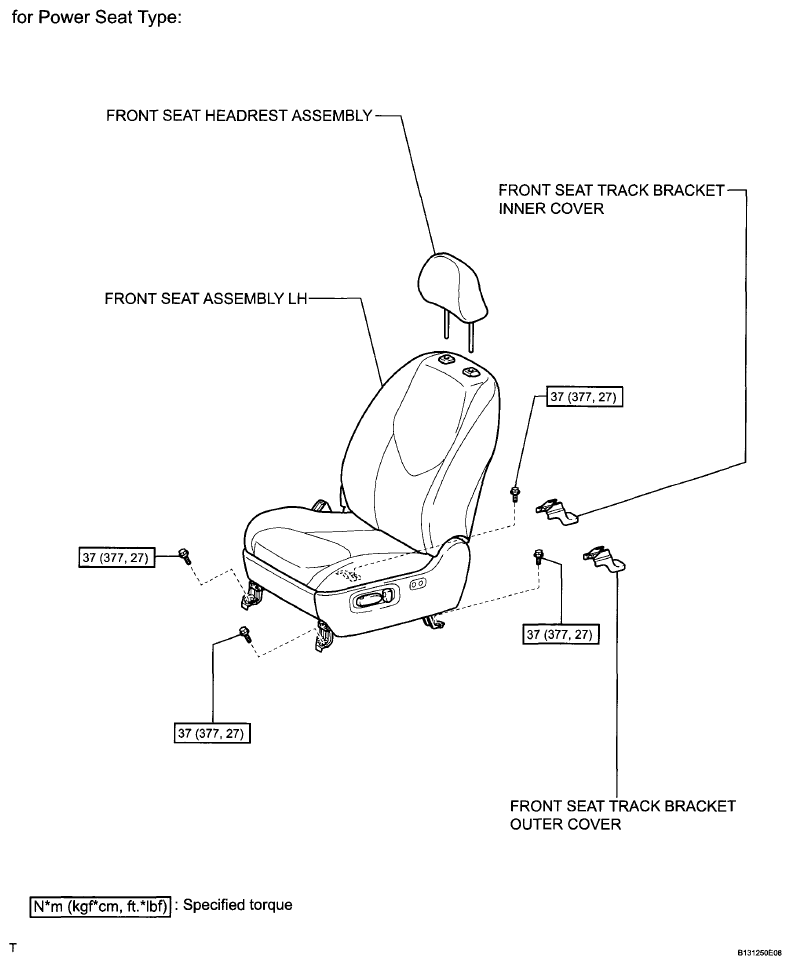

Fig 1: Fuel Lid Lock Control Replacement Components With Torque Specifications (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

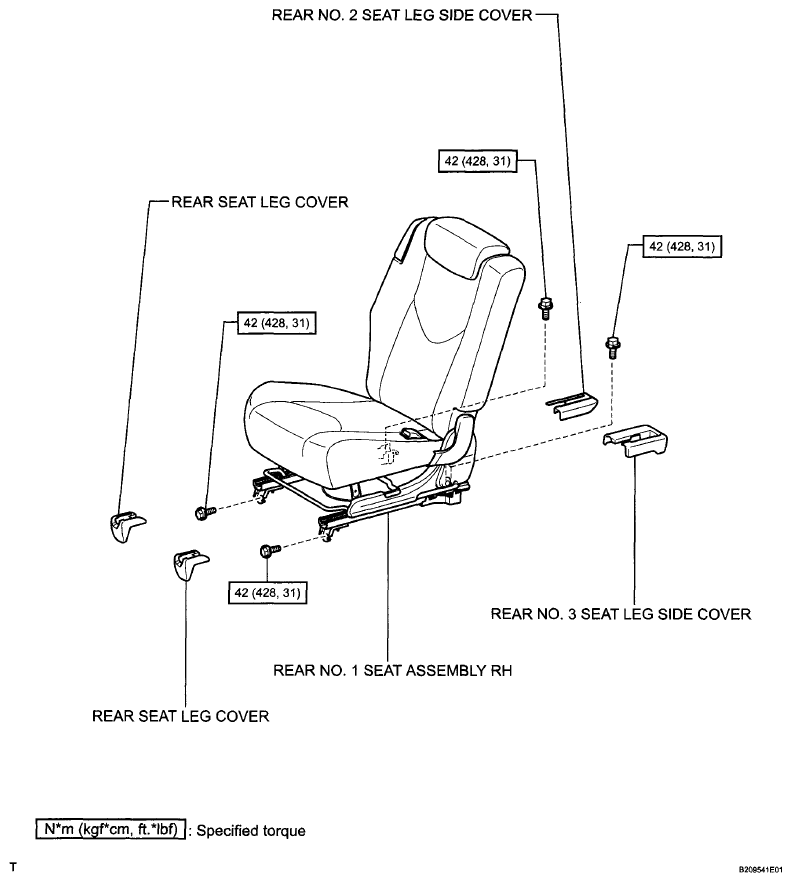

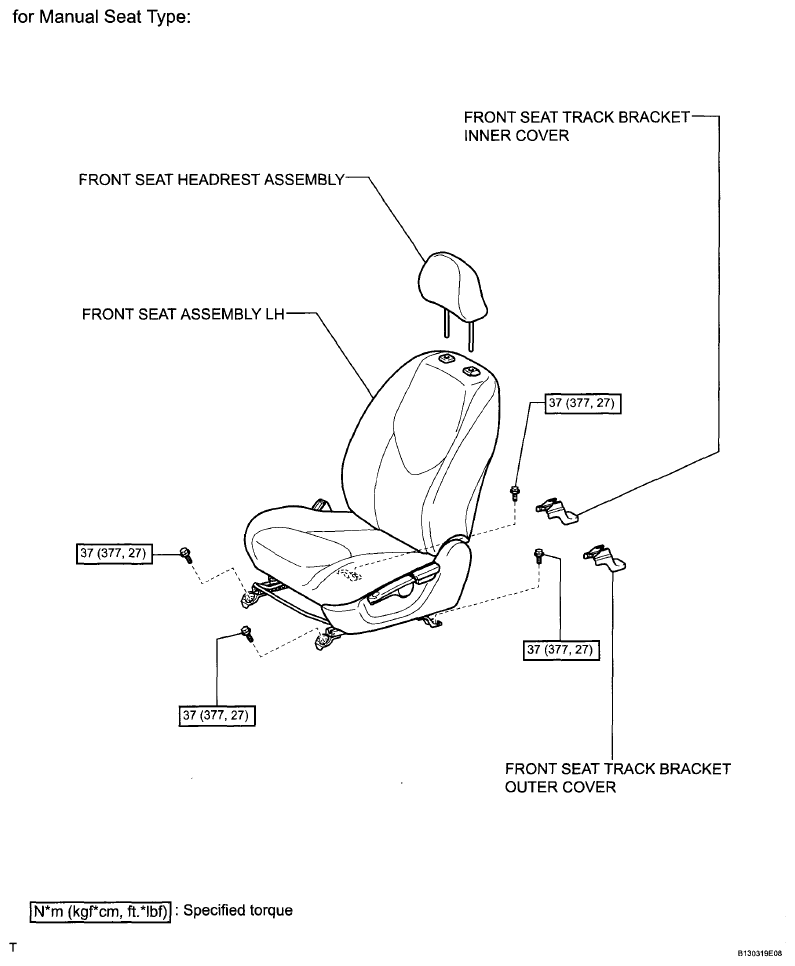

Fig 2: Fuel Lid Lock Control Replacement Components With Torque Specifications (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

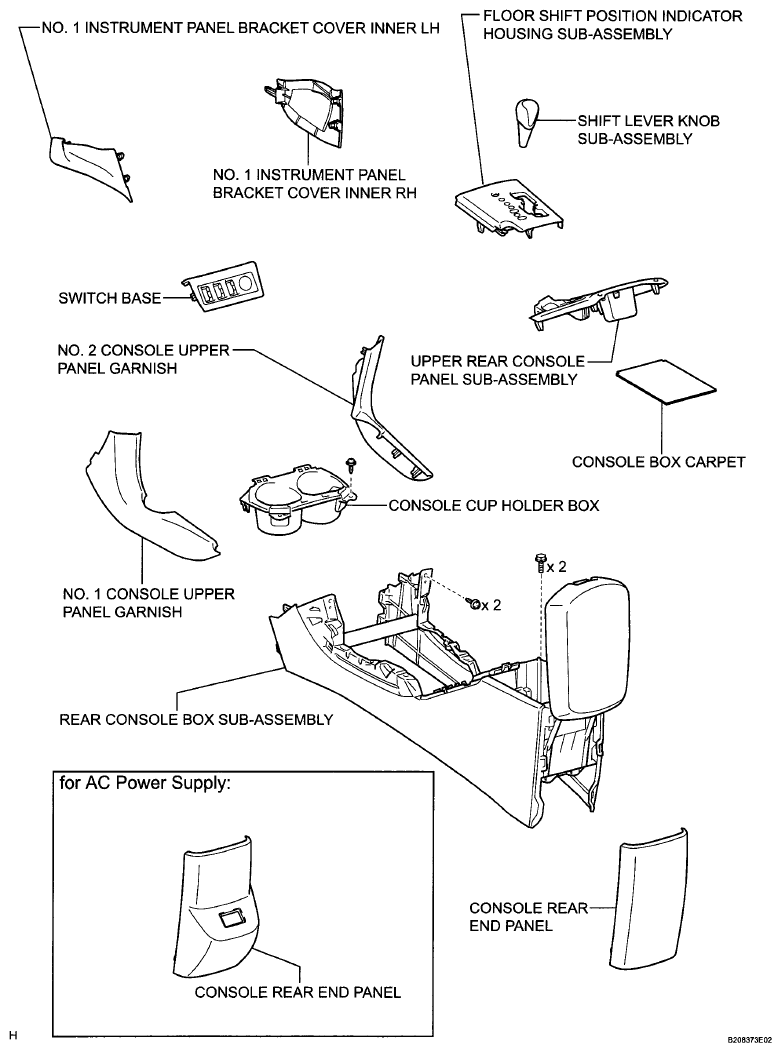

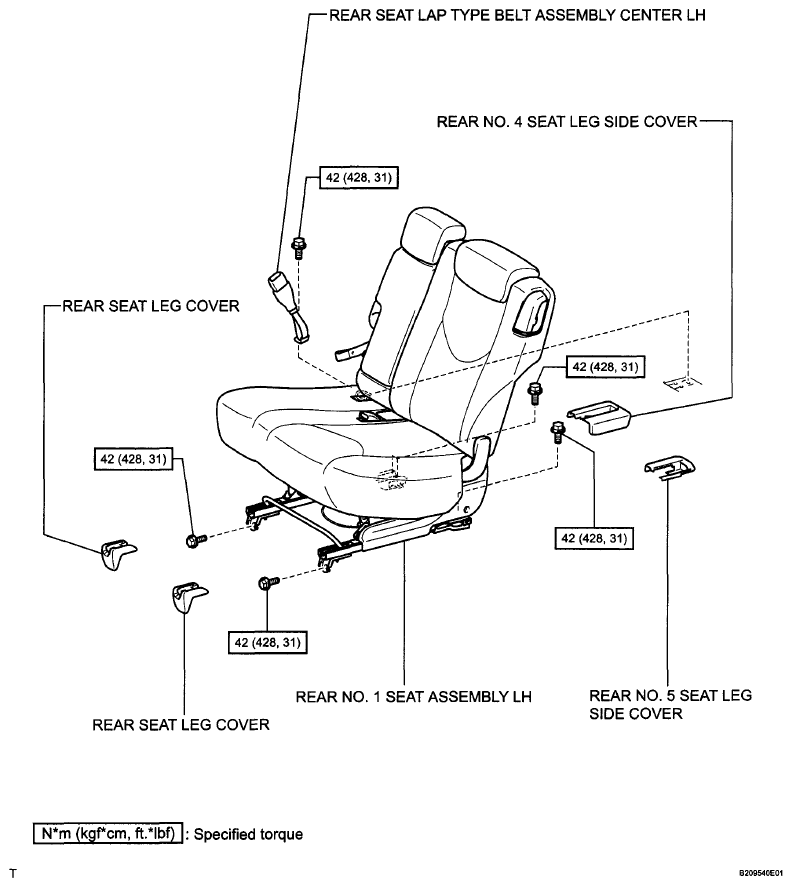

Fig 3: Fuel Lid Lock Control Replacement Components With Torque Specifications (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

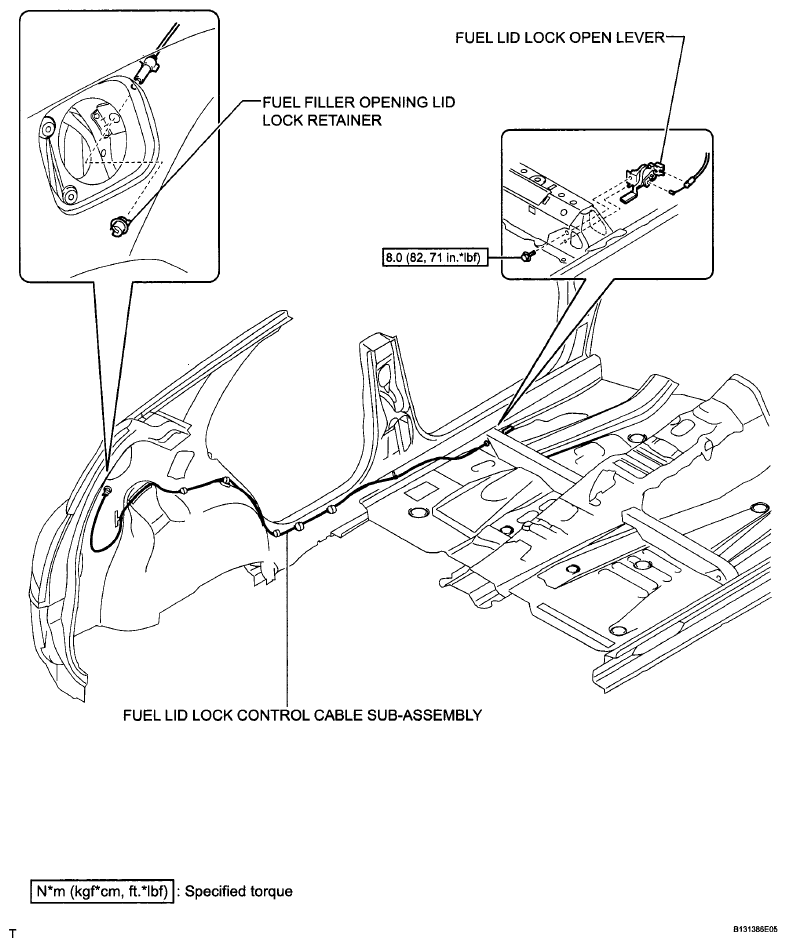

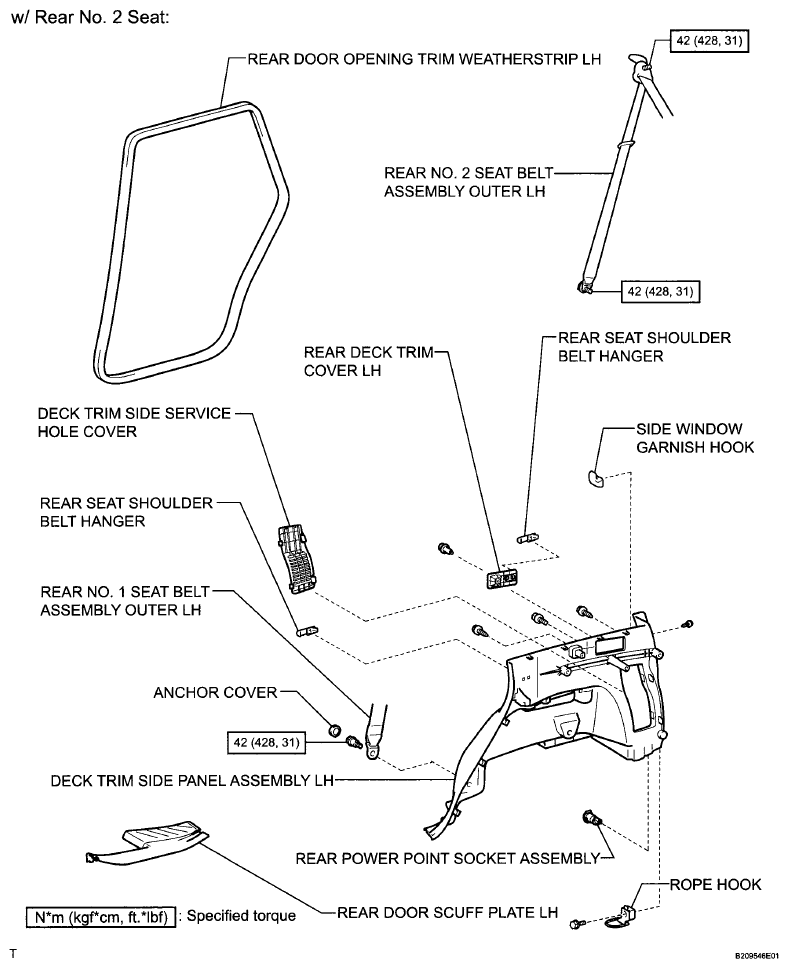

Fig 4: Fuel Lid Lock Control Replacement Components With Torque Specifications (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

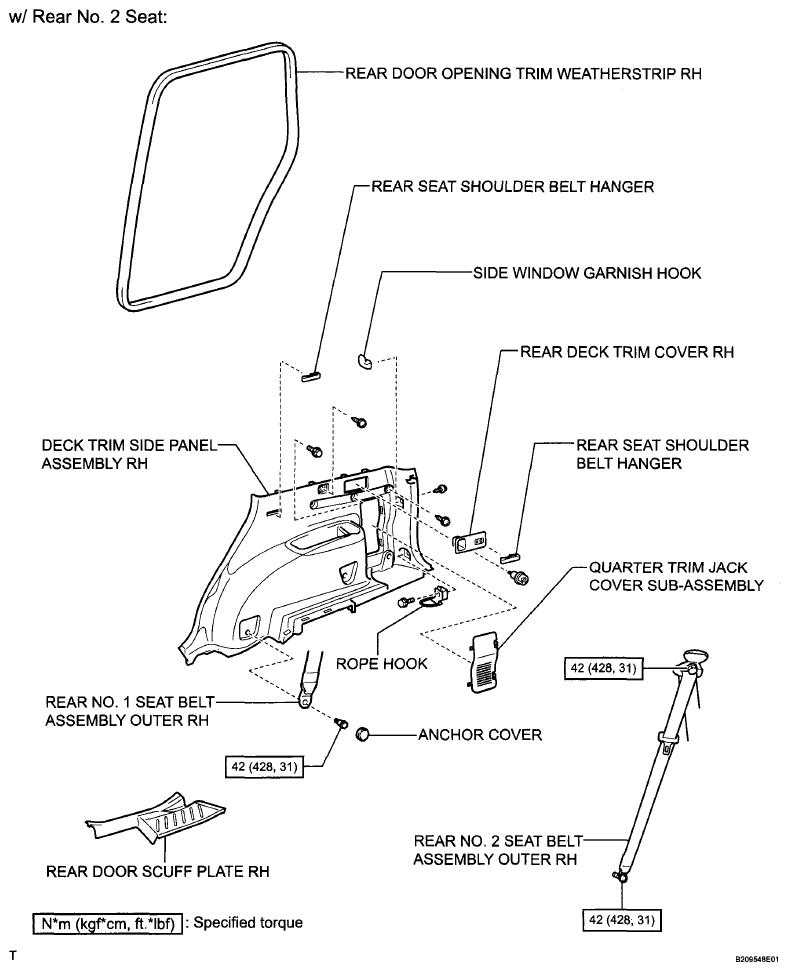

Fig 5: Fuel Lid Lock Control Replacement Components With Torque Specifications (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

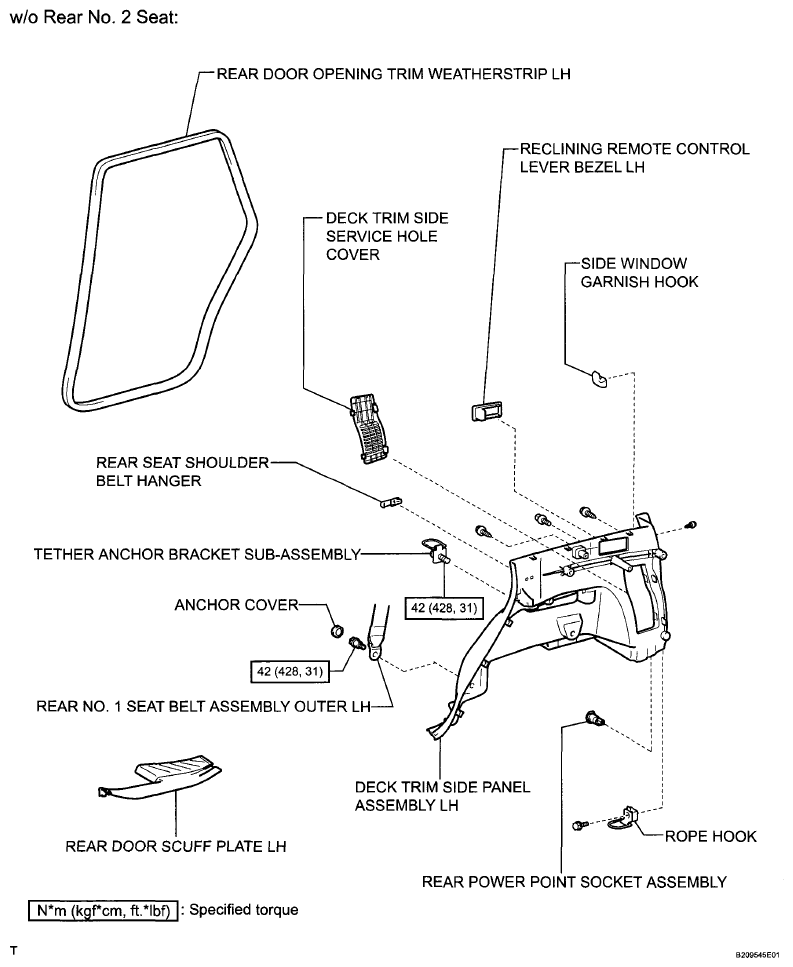

Fig 6: Fuel Lid Lock Control Replacement Components With Torque Specifications (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

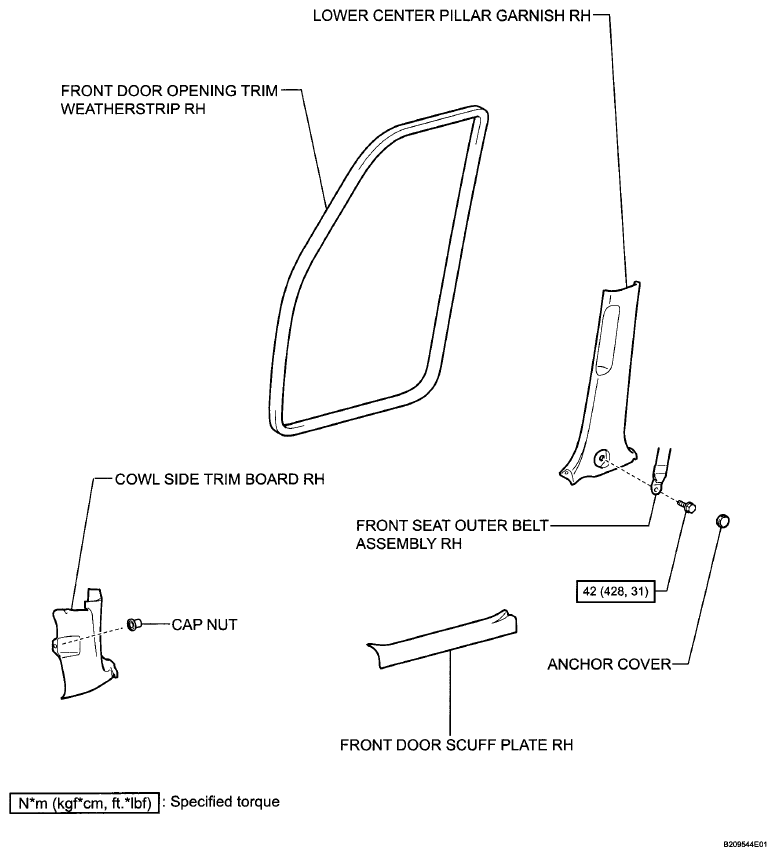

Fig 7: Fuel Lid Lock Control Replacement Components With Torque Specifications (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

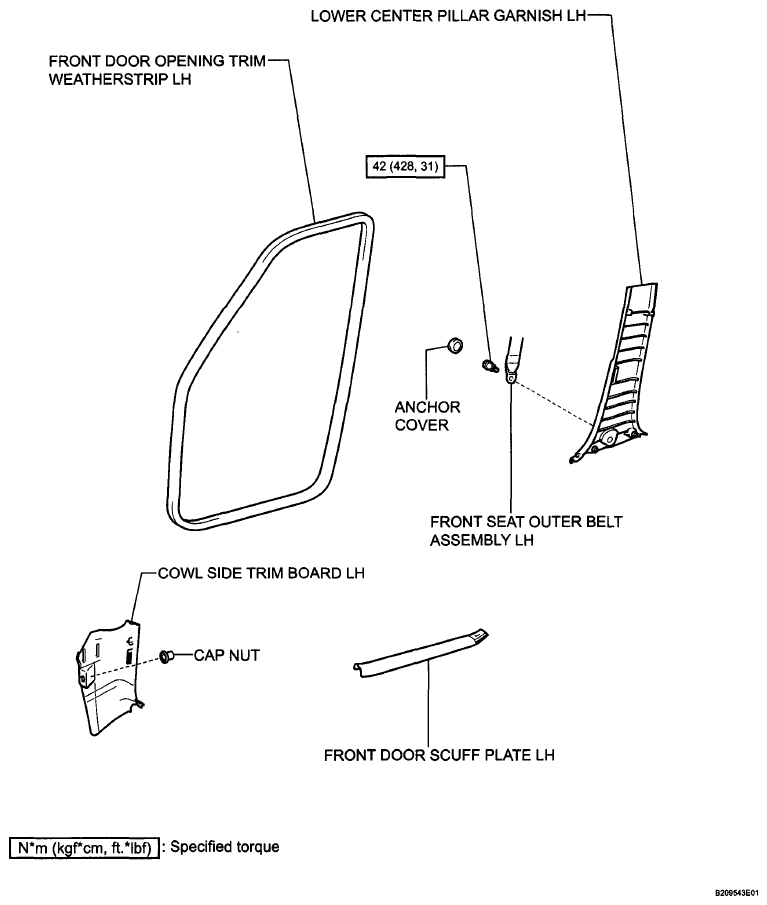

Fig 8: Fuel Lid Lock Control Replacement Components With Torque Specifications (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Fuel Lid Lock Control Replacement Components With Torque Specifications (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Fuel Lid Lock Control Replacement Components With Torque Specifications (10 Of 14)

Fig 11: Fuel Lid Lock Control Replacement Components With Torque Specifications (11 Of 14)

Fig 12: Fuel Lid Lock Control Replacement Components With Torque Specifications (12 Of 14)

Fig 13: Fuel Lid Lock Control Replacement Components With Torque Specifications (13 Of 14)

Fig 14: Fuel Lid Lock Control Replacement Components With Torque Specifications (14 Of 14)
