Door Control Transmitter Module: Components

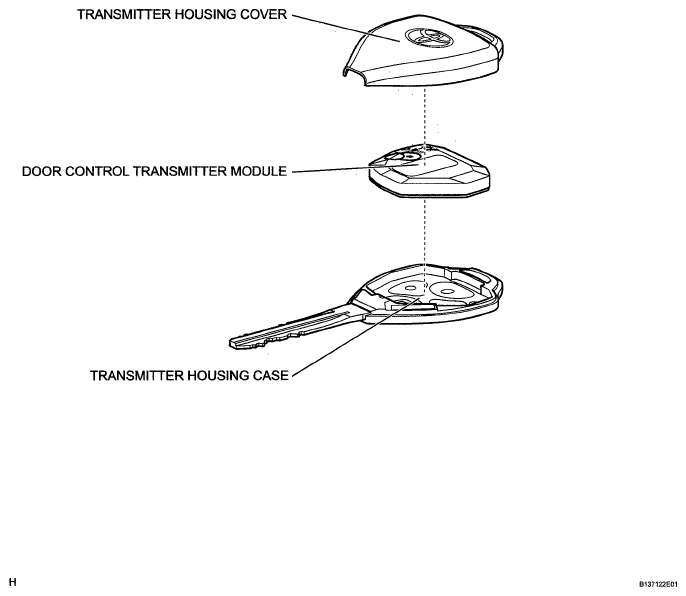

Fig 1: Identifying Door Control Transmitter Module Components
G05586163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
