Oil Pump: Components

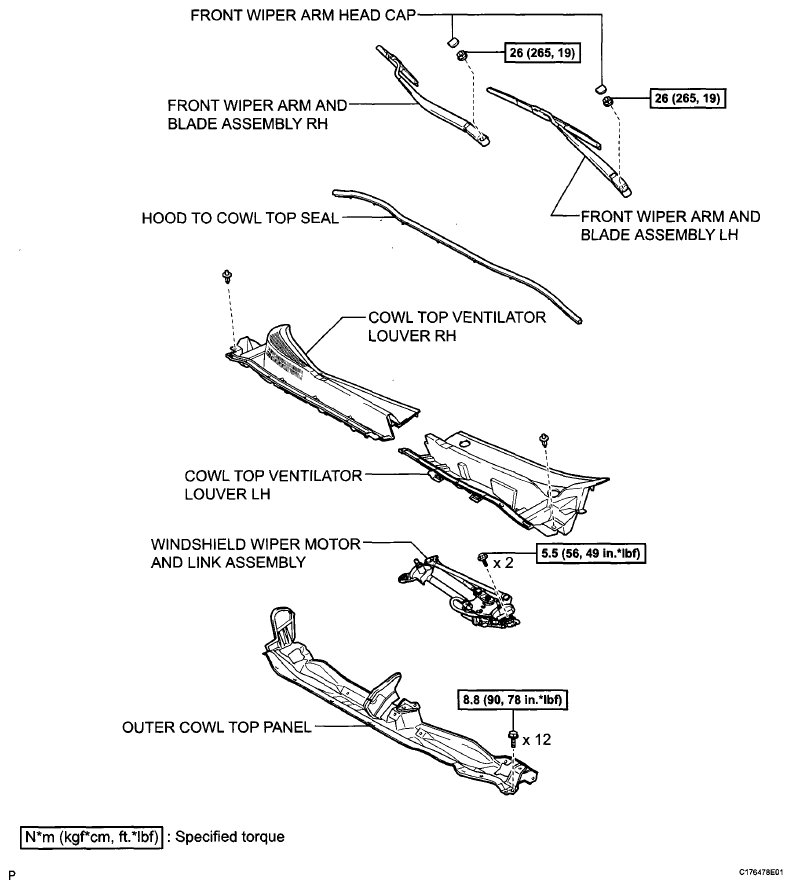

Fig 1: Wiper And Windshield Assembly Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

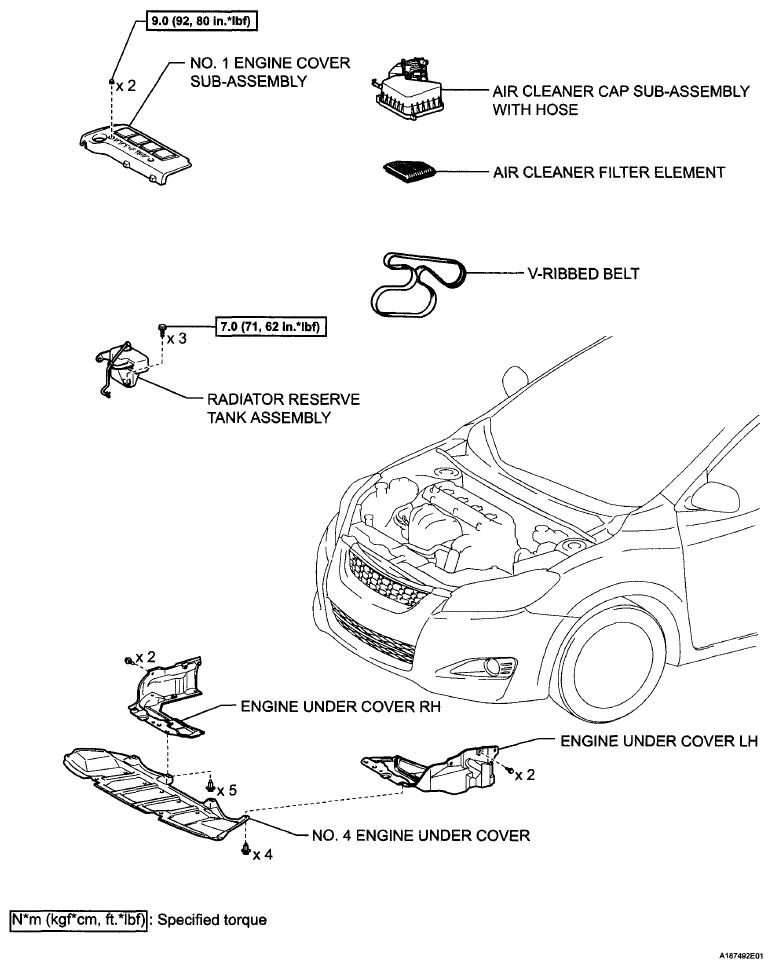

Fig 2: Radiator, Air cleaner, Engine Under Cover Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

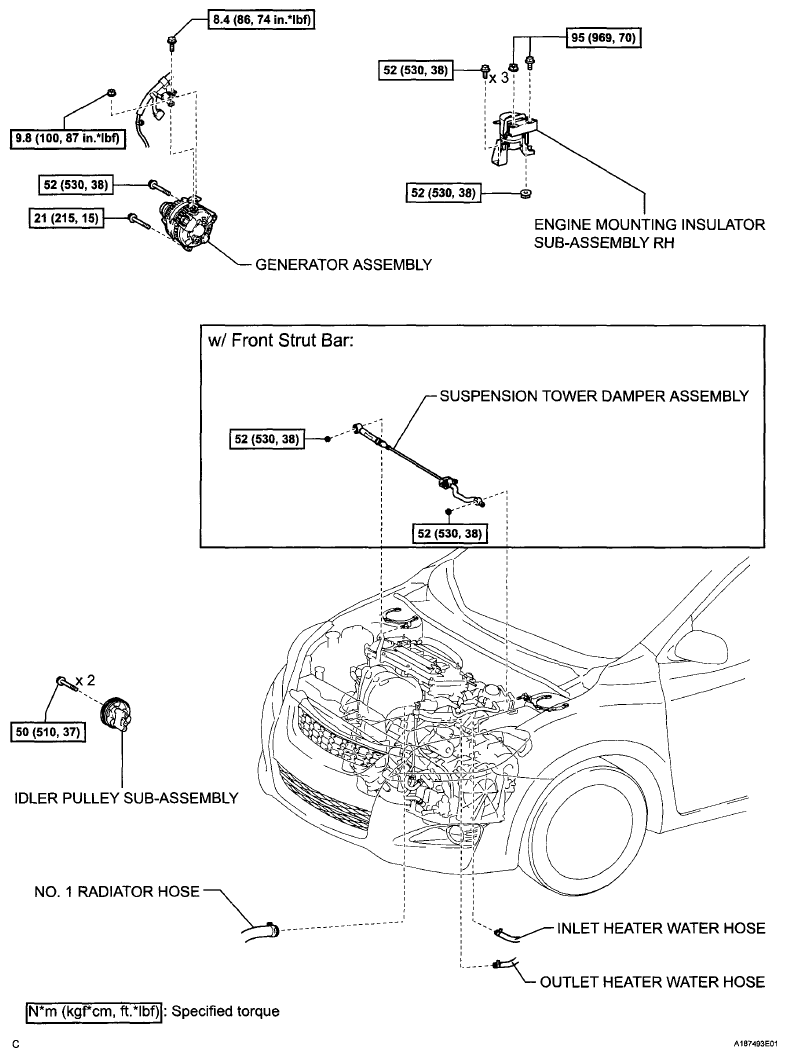

Fig 3: Generator, Suspension And Heater Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

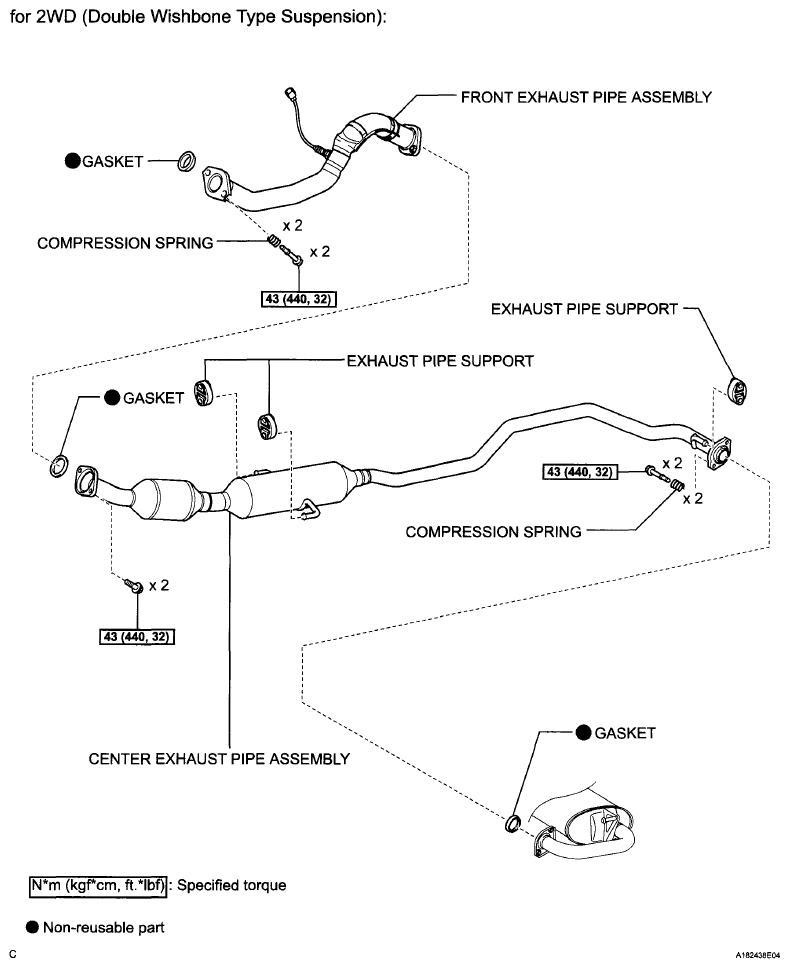

Fig 4: Exhaust System Replacement Components With Torque Specifications (2WD - Double Wishbone Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

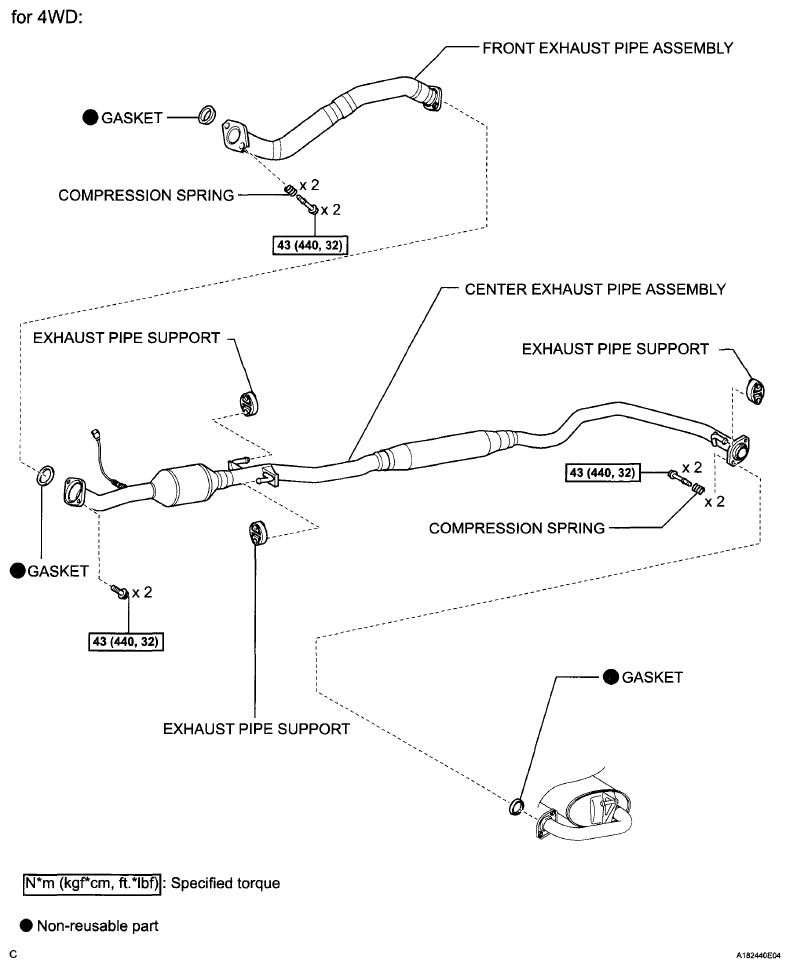

Fig 5: Exhaust System Replacement Components With Torque Specifications (4WD - Double Wishbone Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

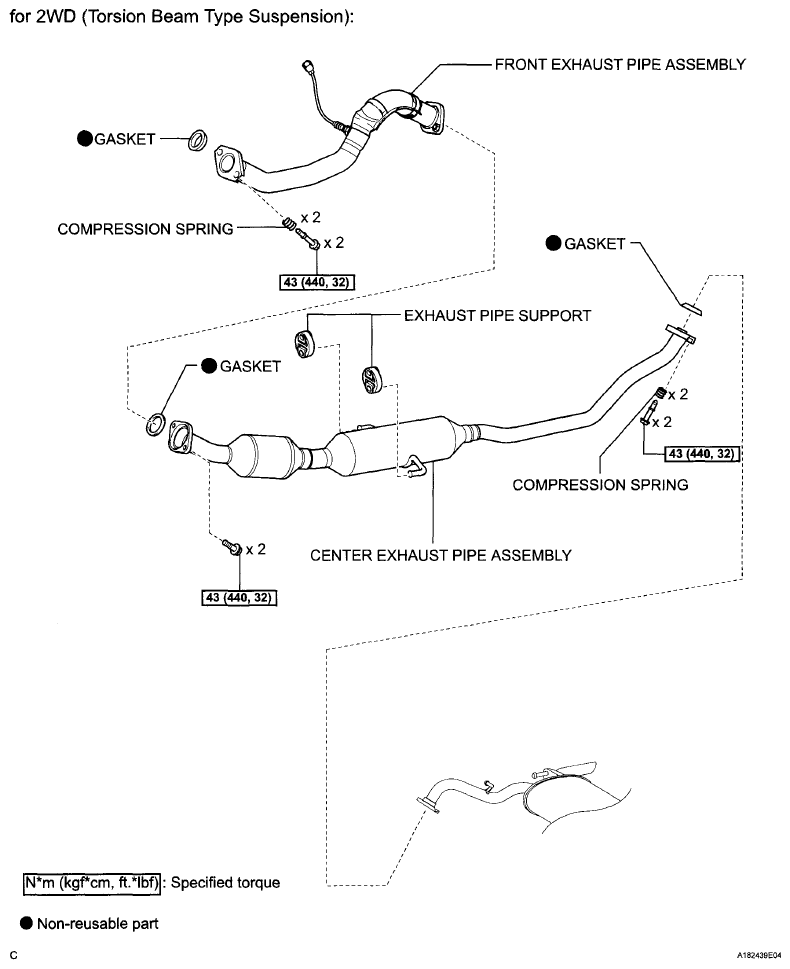

Fig 6: Exhaust System Replacement Components With Torque Specifications (2WD - Torsion Beam Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Throttle Body Assembly Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

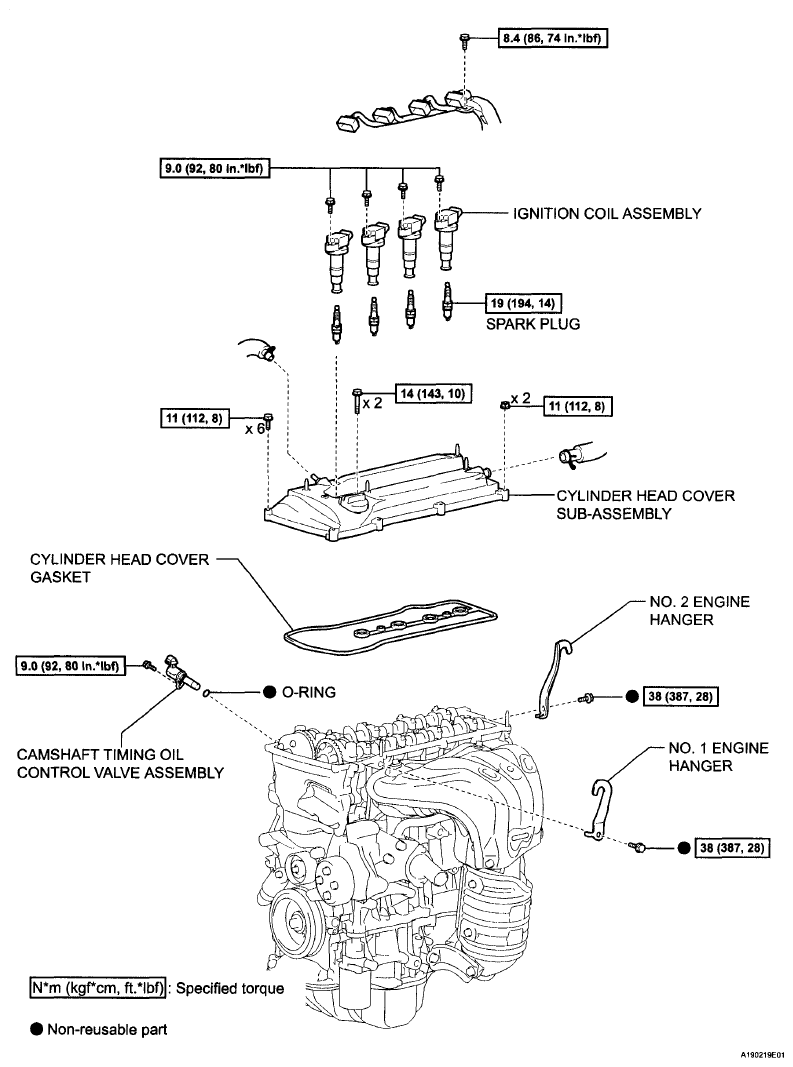

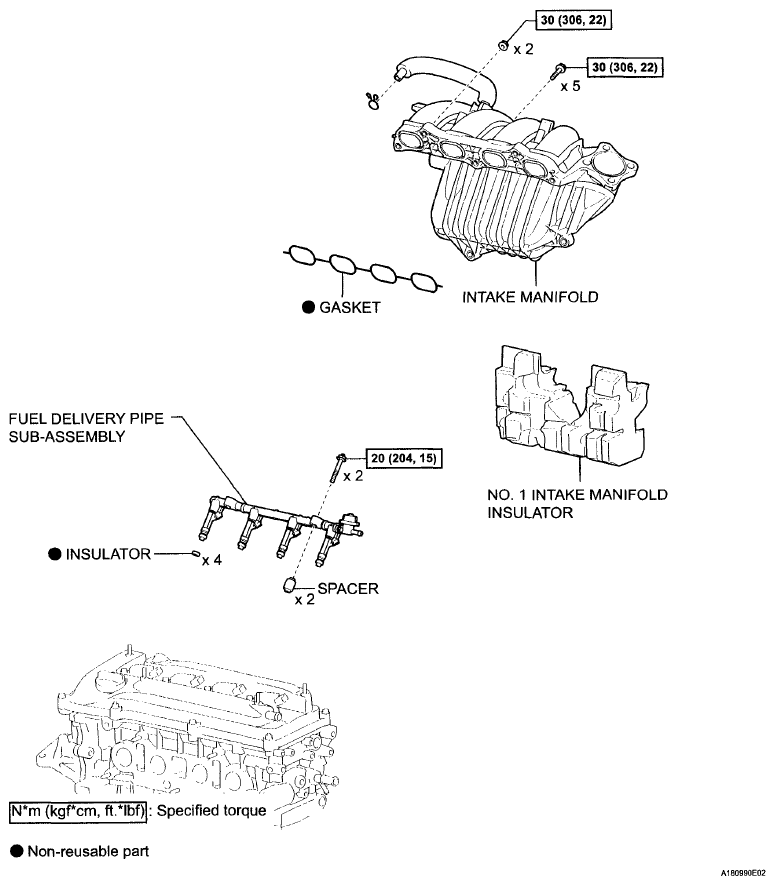

Fig 8: Engine Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

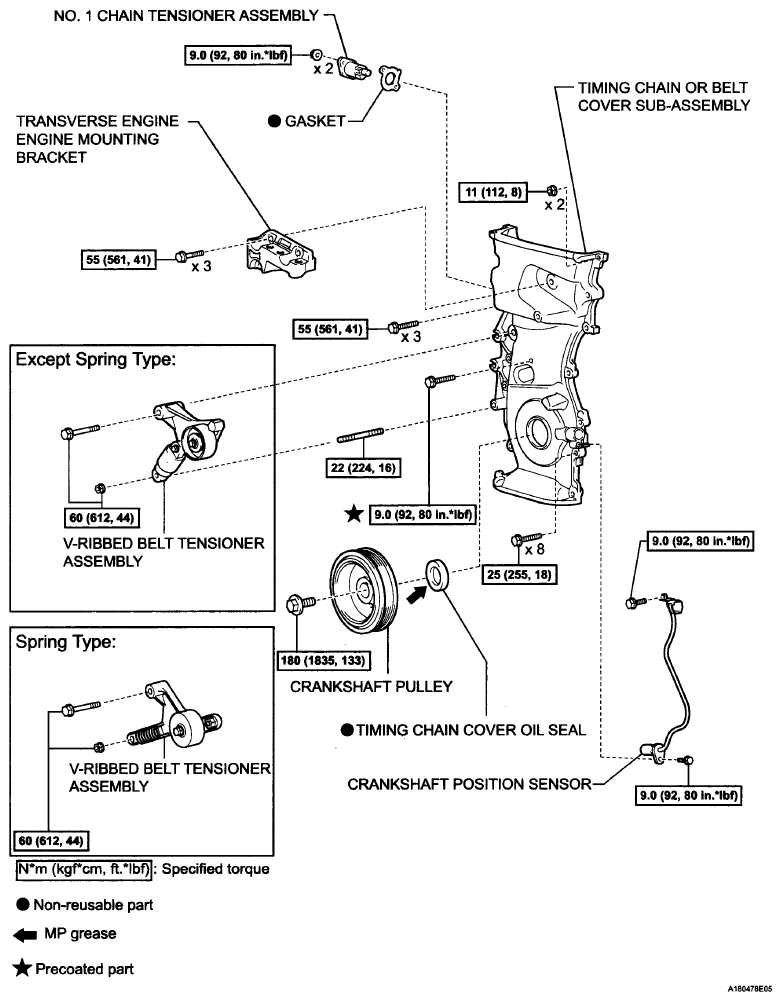

Fig 9: Engine Replacement Components With Torque Specifications (2 Of 5)

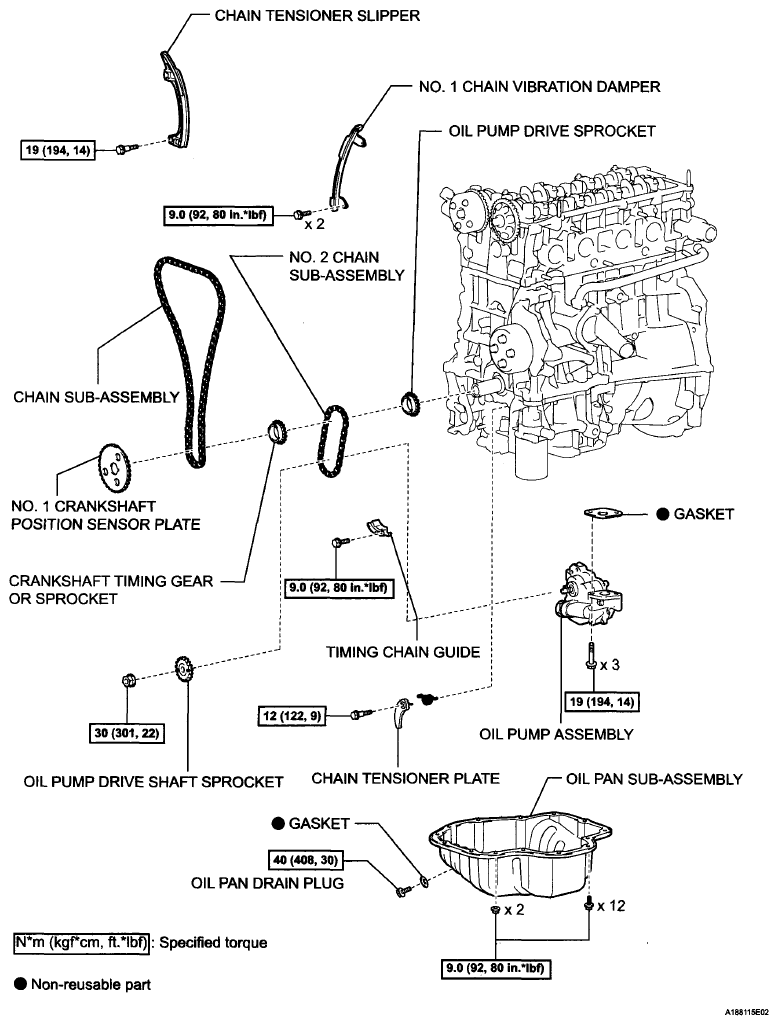

Fig 10: Engine Replacement Components With Torque Specifications (3 Of 5)

Fig 11: Engine Replacement Components With Torque Specifications (4 Of 5)

Fig 12: Engine Replacement Components With Torque Specifications (5 Of 5)

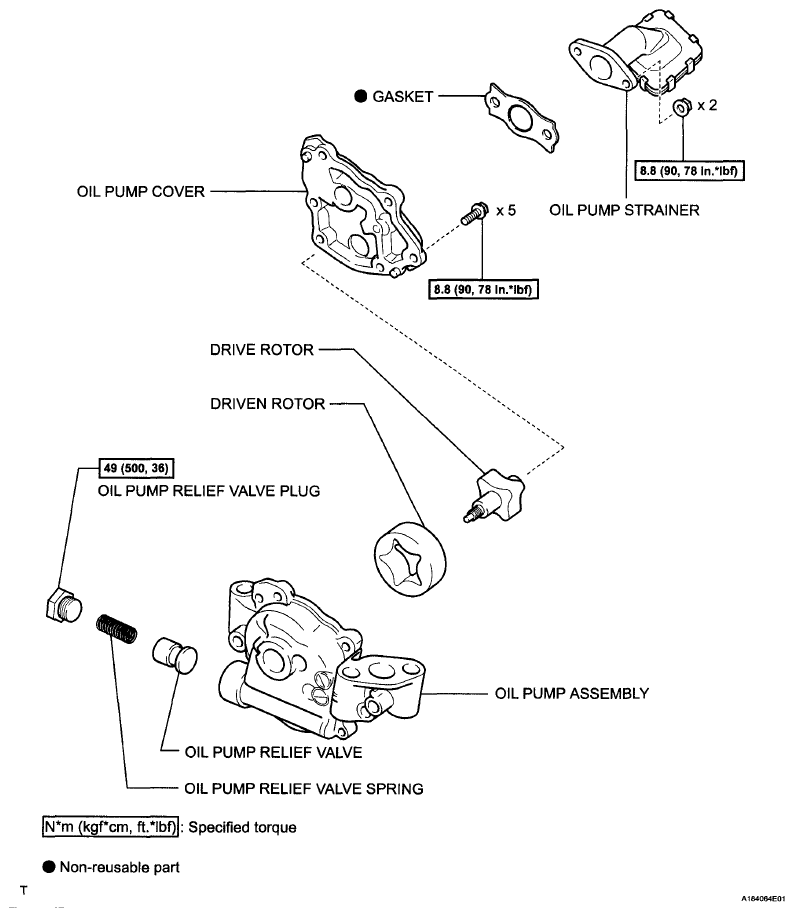

Fig 13: Oil Pump Replacement Components With Torque Specifications
