Power Steering ECU Communication Stop Mode: Wiring Diagram

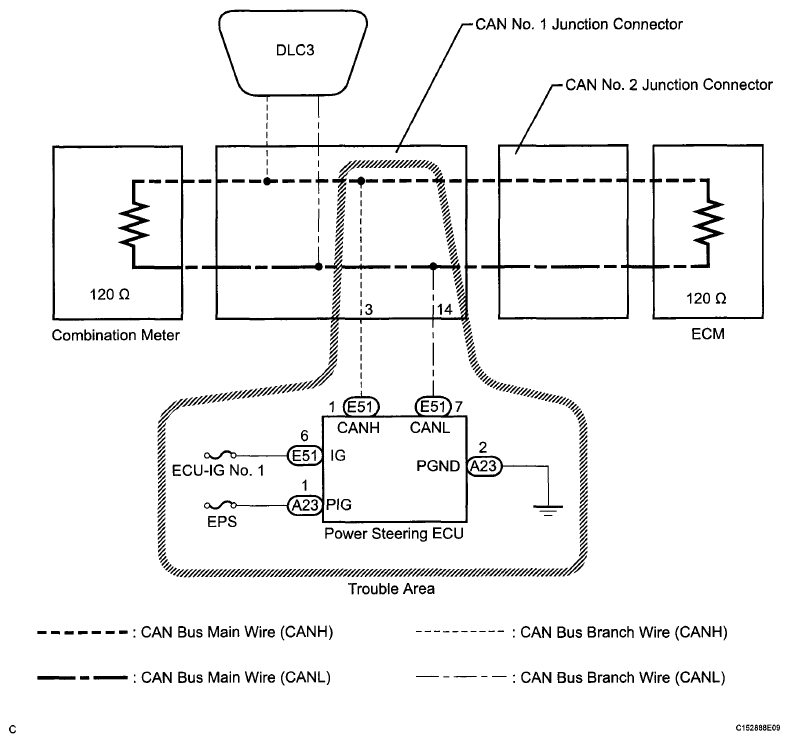

Fig 1: Power Steering ECU Communication - Wiring Diagram
G06036160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
