Components

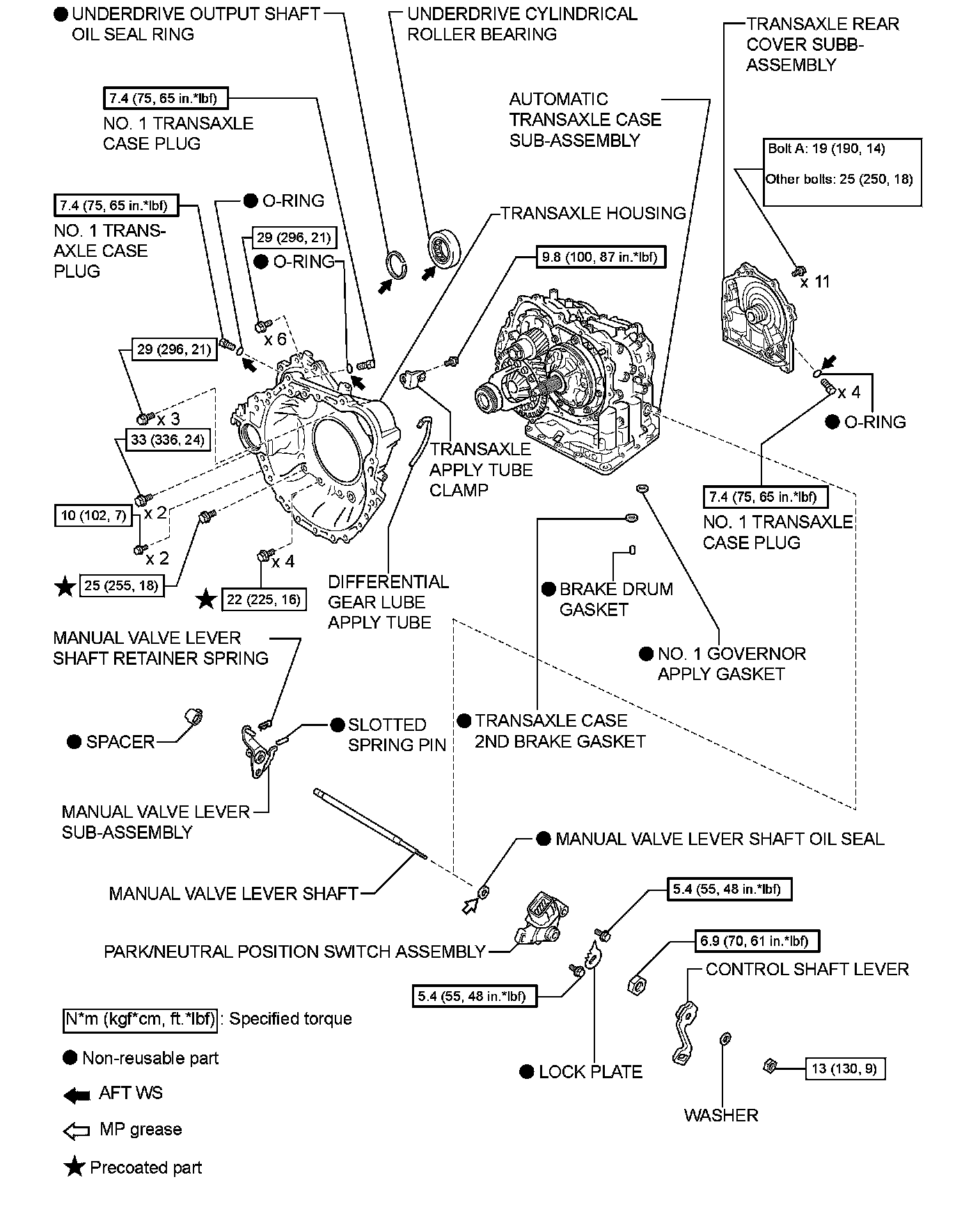

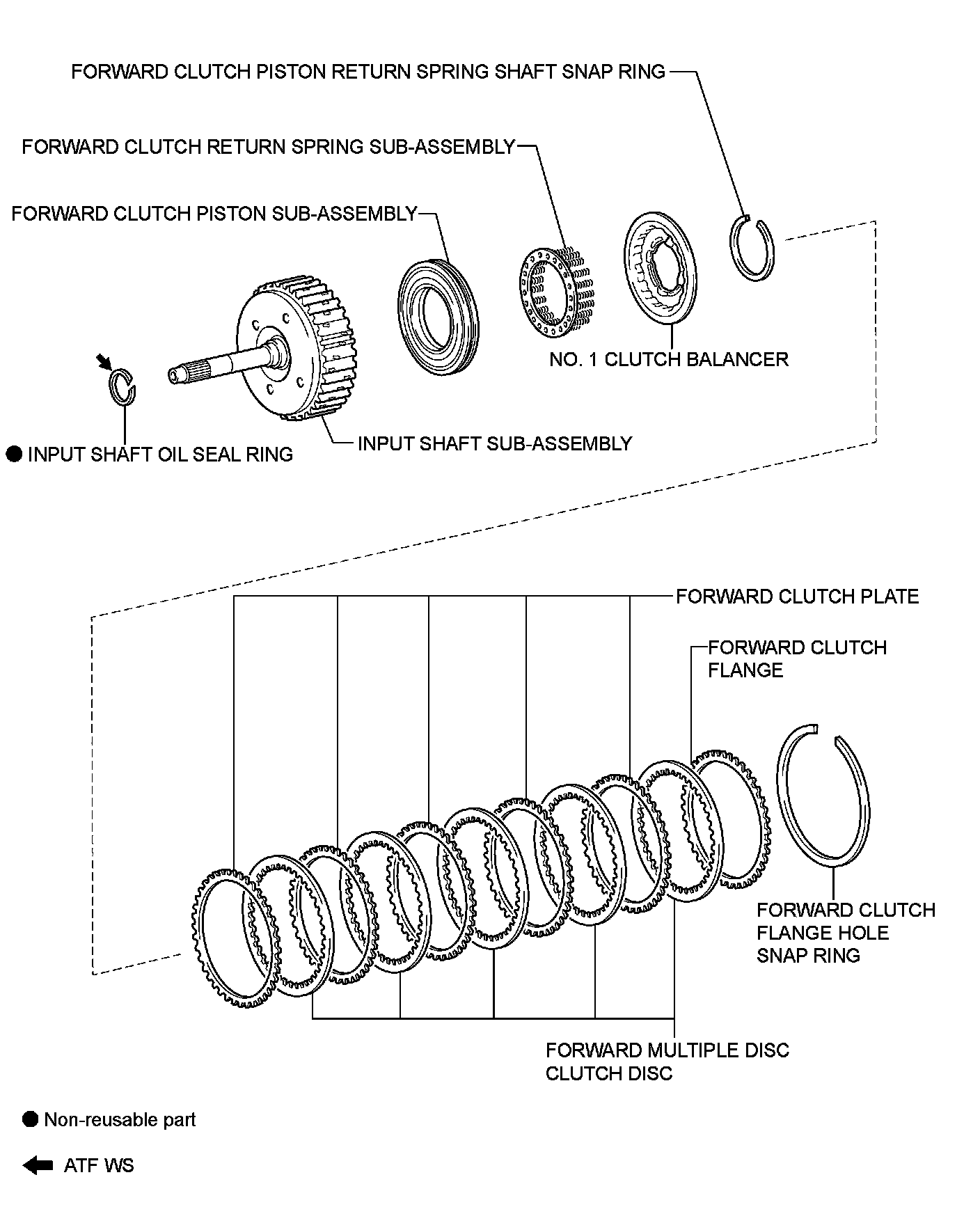

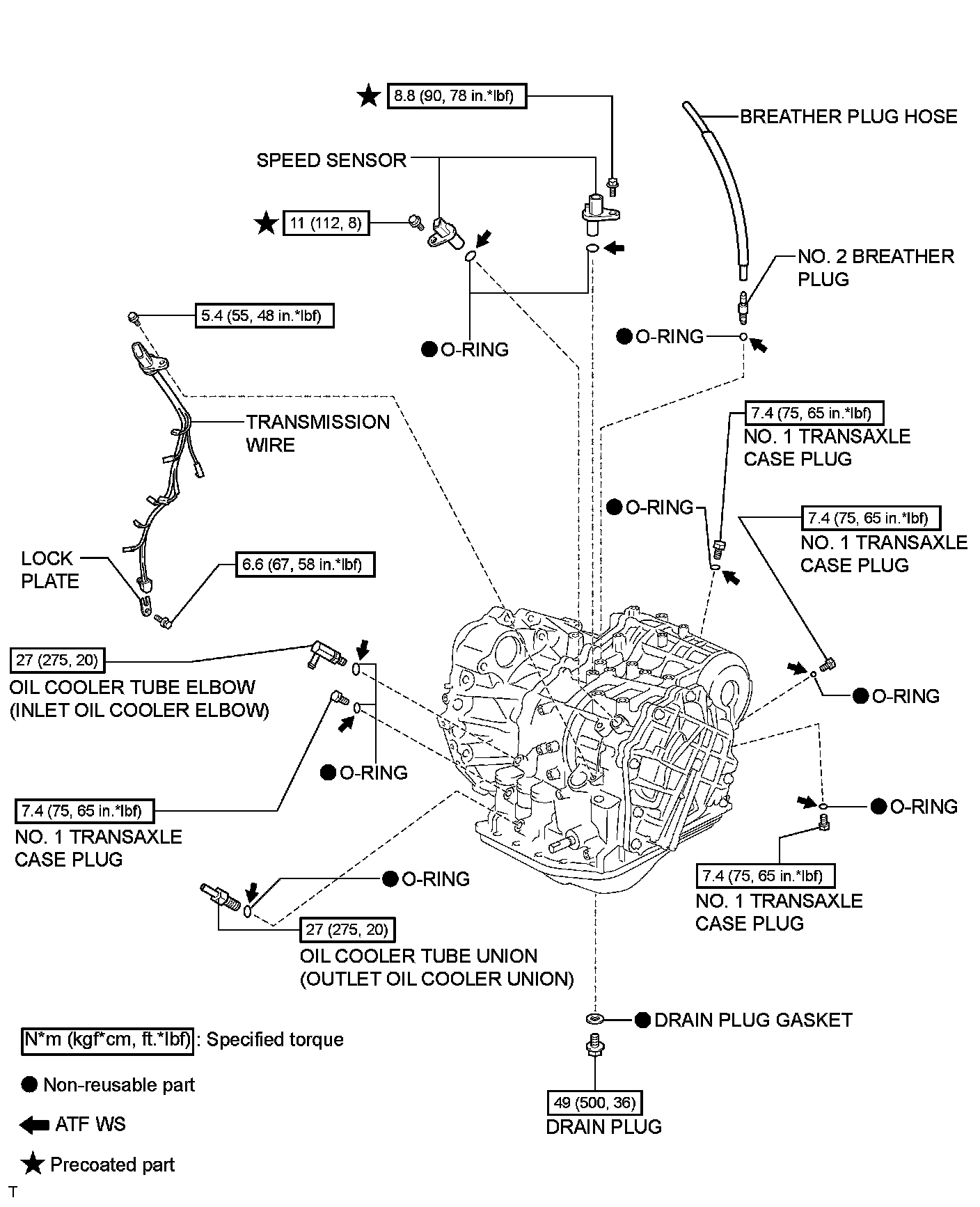

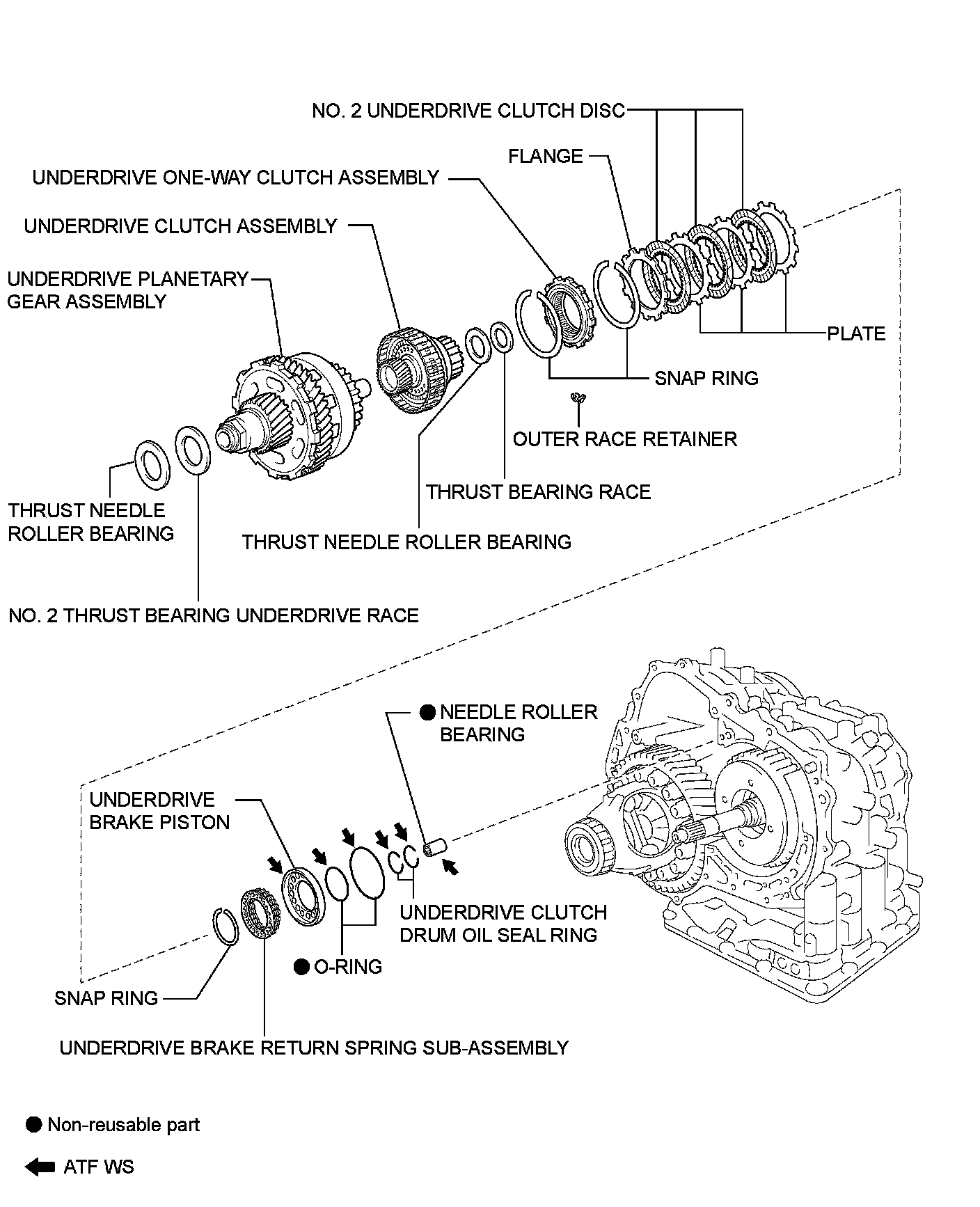

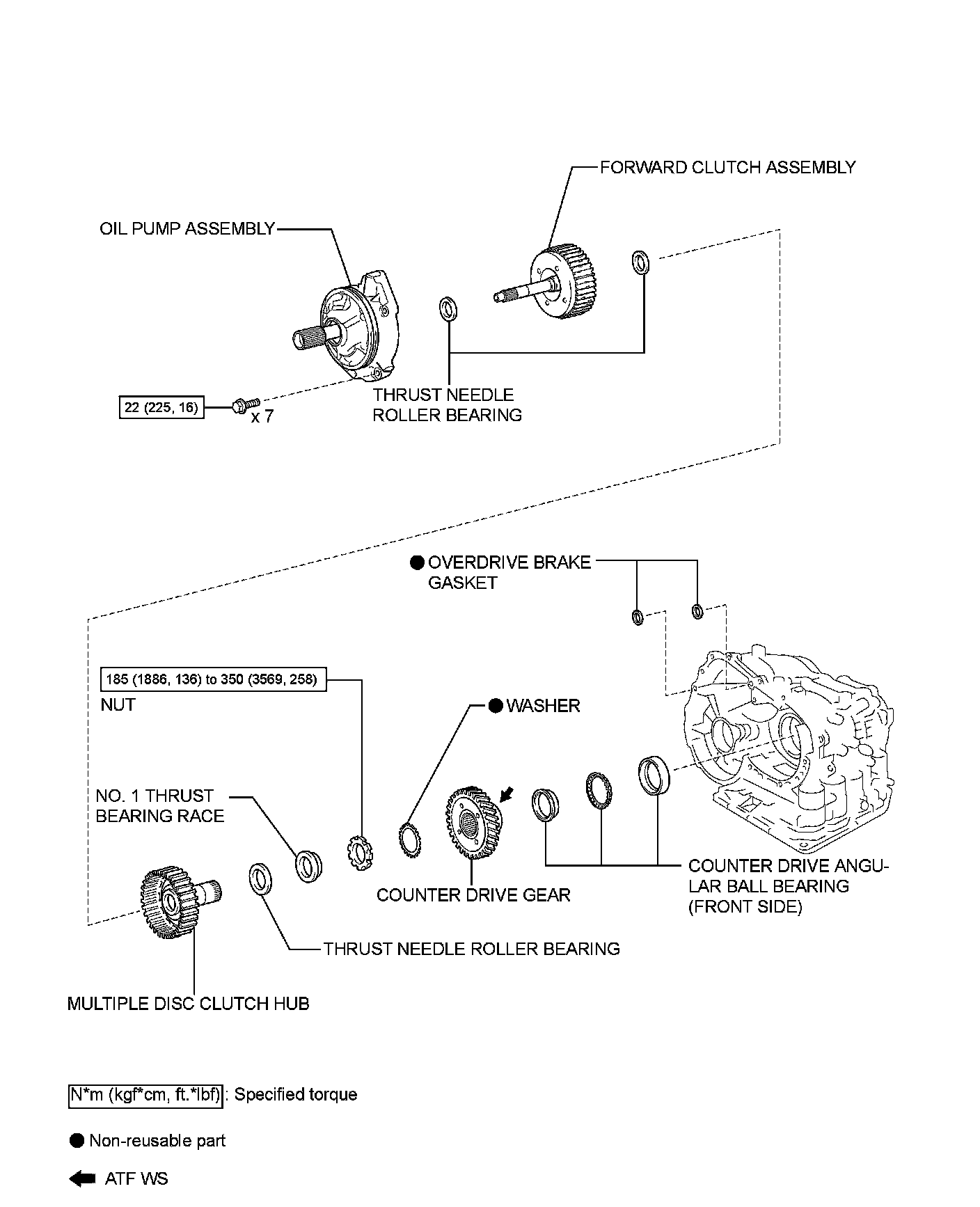

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: COMPONENTS

COMPONENTS

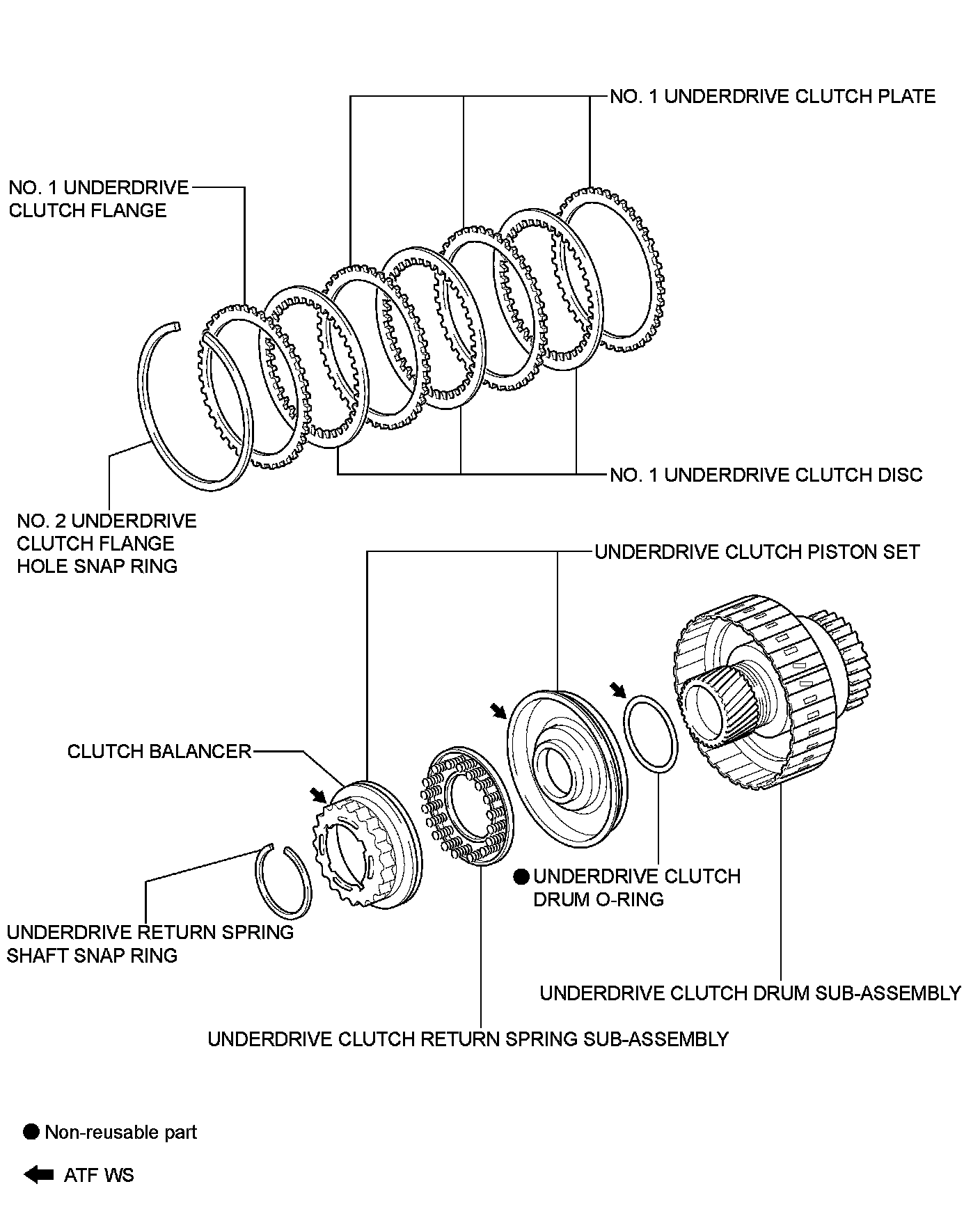

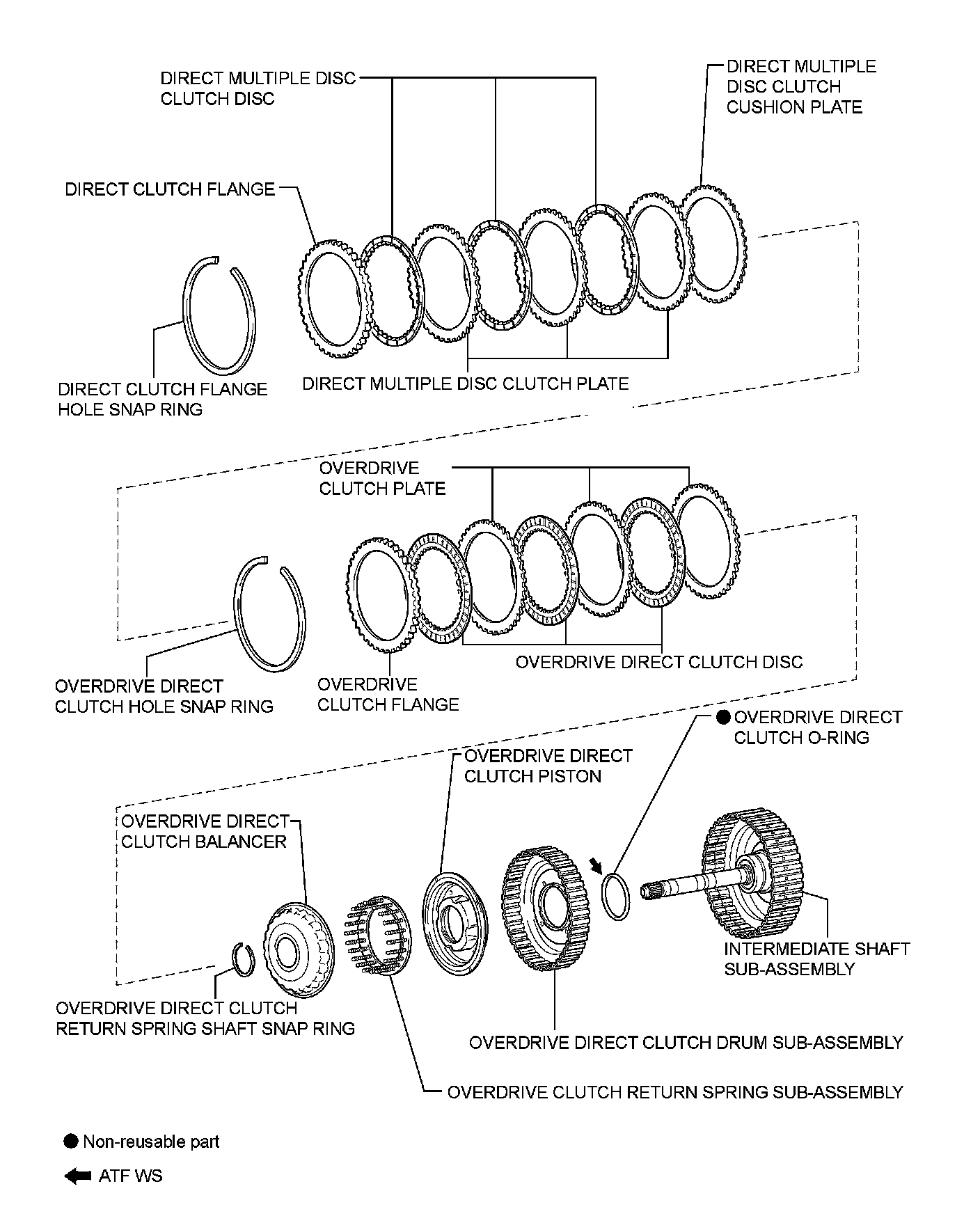

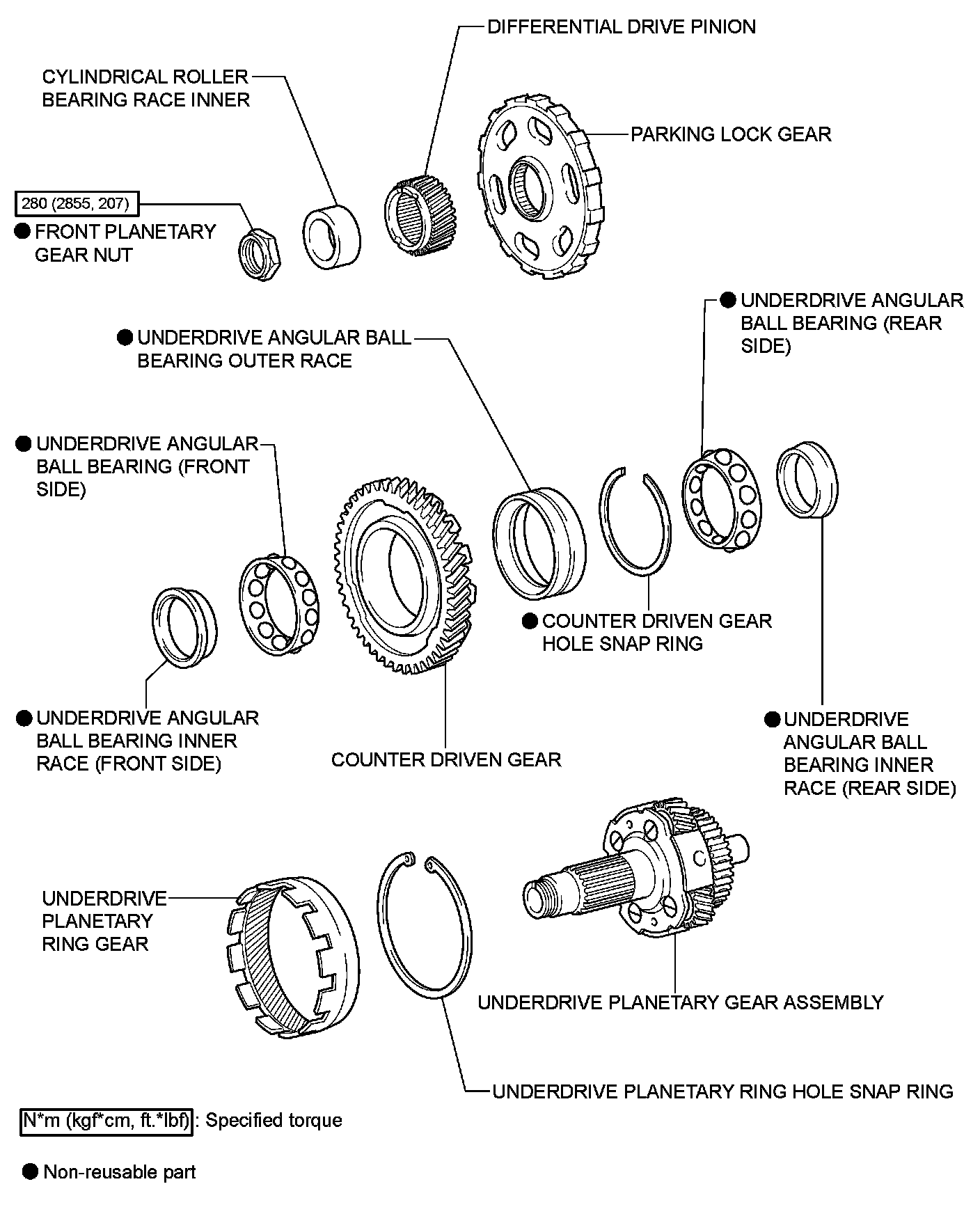

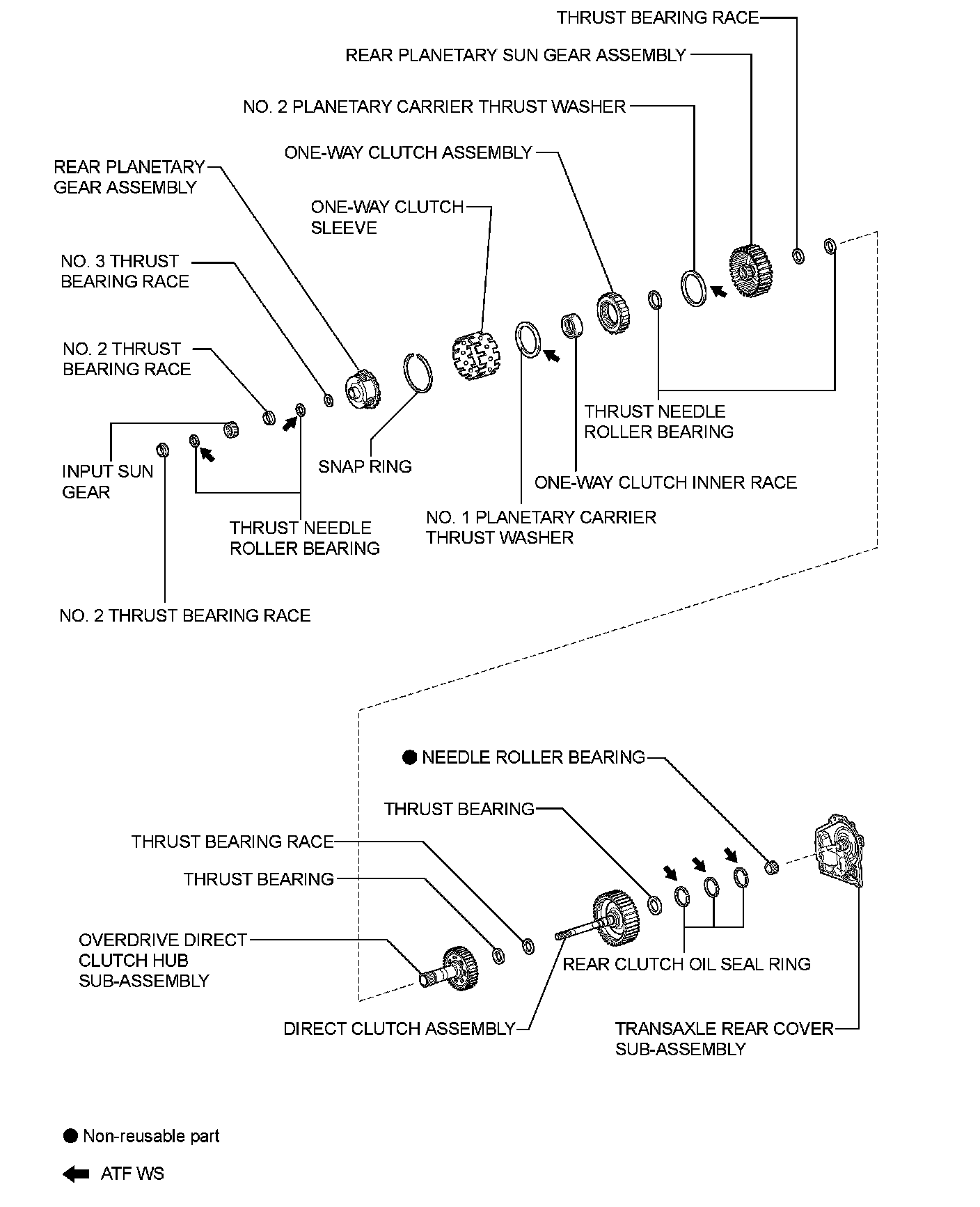

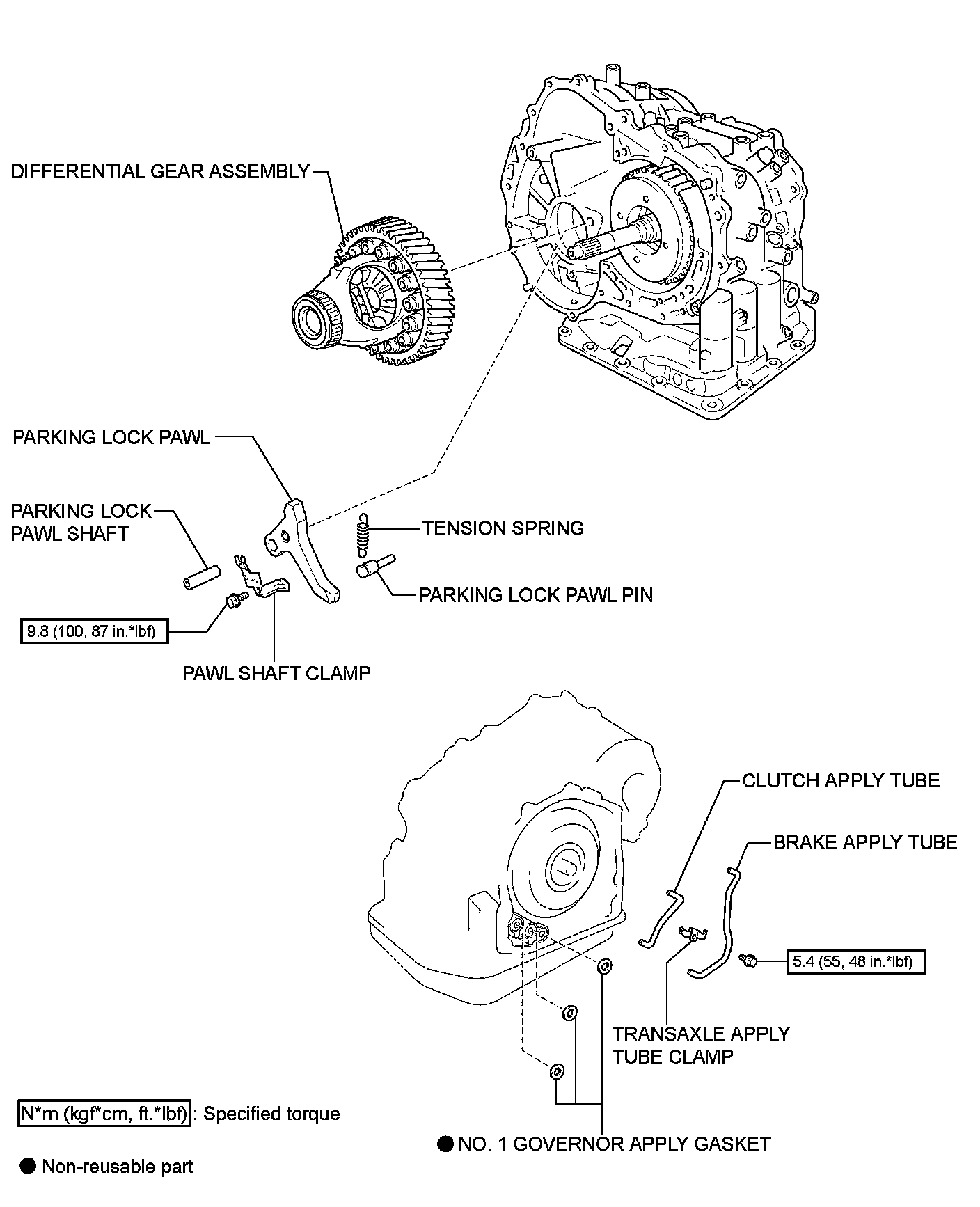

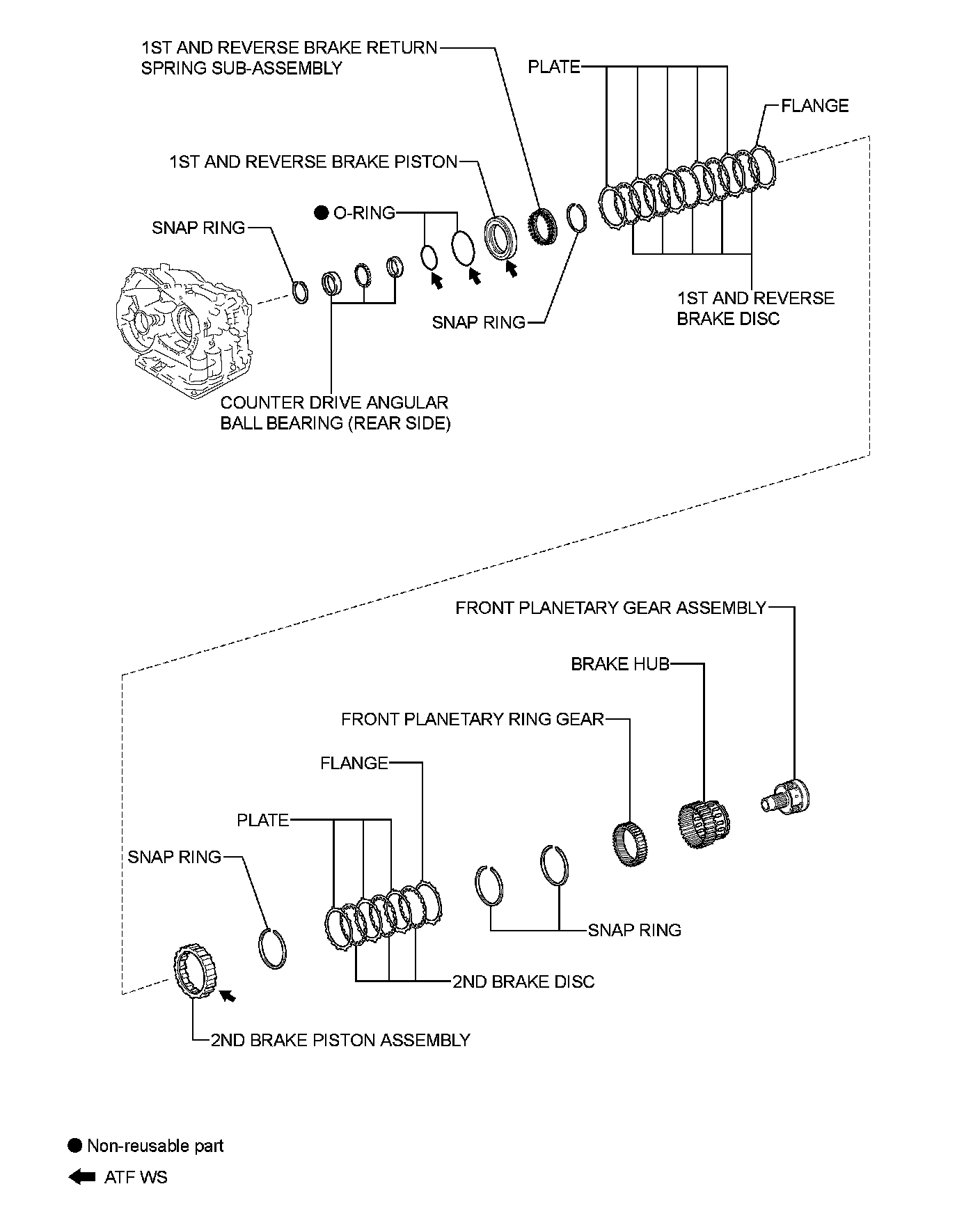

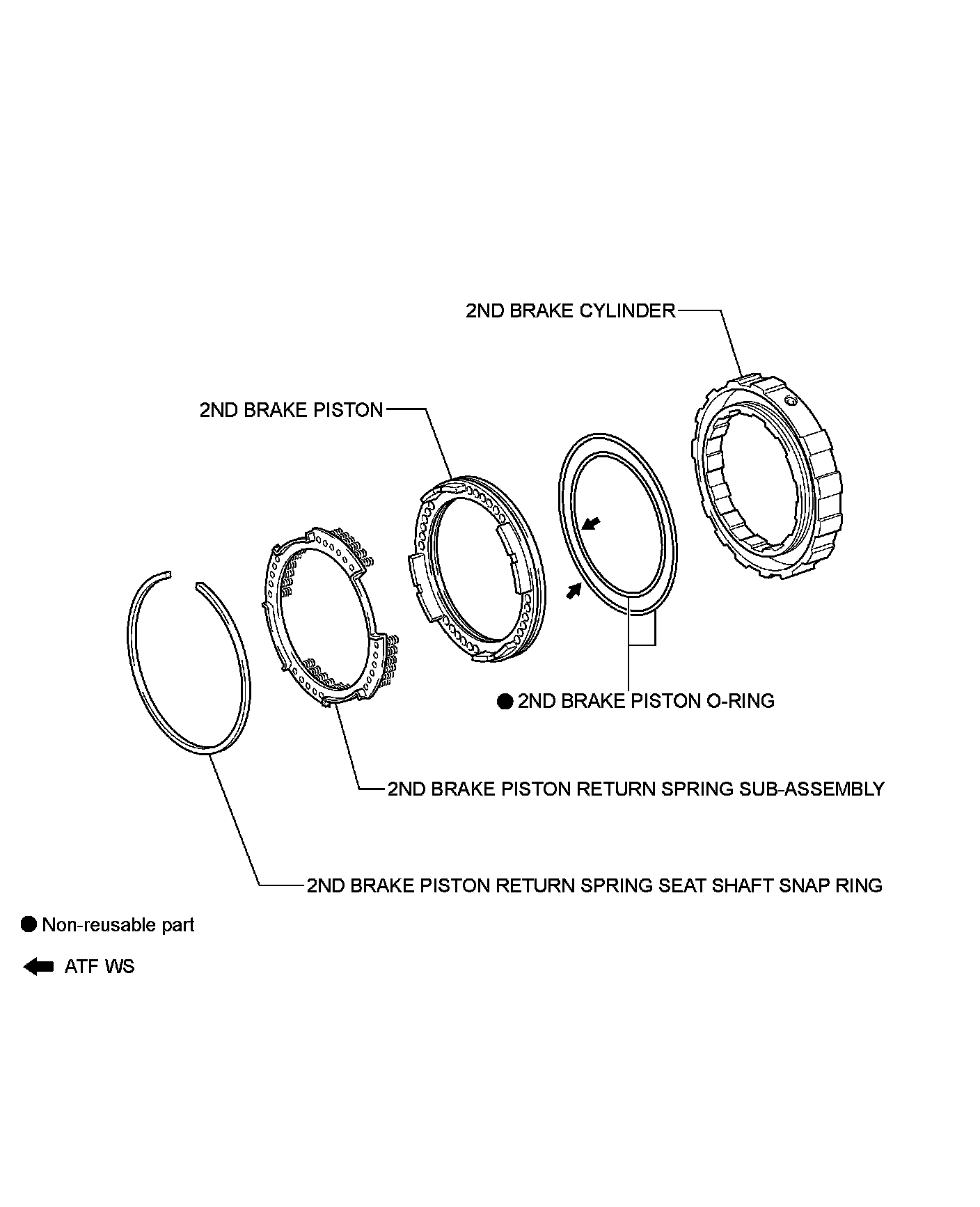

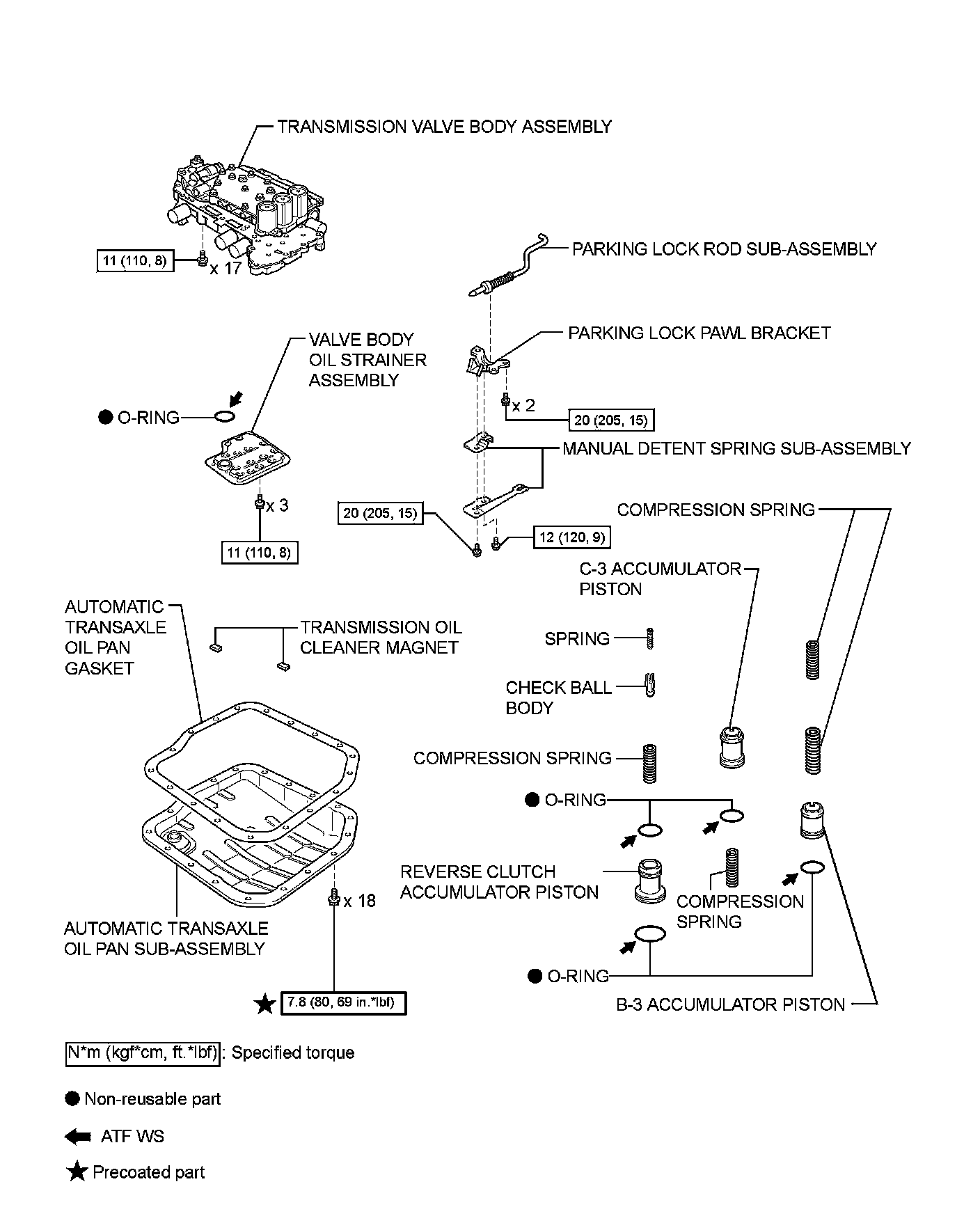

ILLUSTRATION
