Removal

2AZ-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

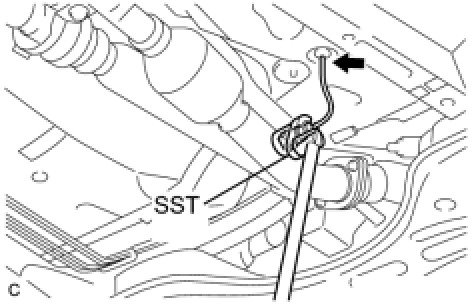

1. REMOVE HEATED OXYGEN SENSOR (for 4WD)
(a) Disconnect the heated oxygen sensor connector.





(b) Separate the wire harness grommet.
(c) Using SST, remove the heated oxygen sensor.
SST: 09224-00010

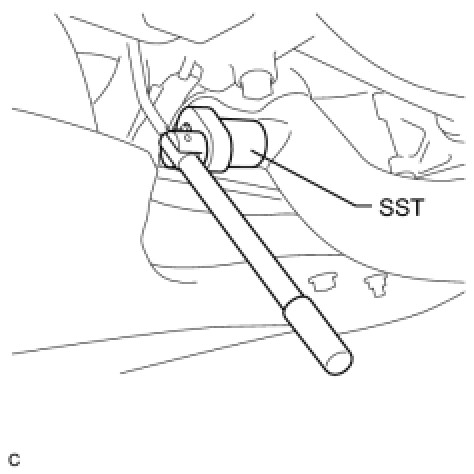

2. REMOVE HEATED OXYGEN SENSOR (for 2WD)





(a) Disconnect the heated oxygen sensor connector.





(b) Using SST, remove the heated oxygen sensor.
SST: 09224-00010
