Oil Pan, Engine

NO. 2 OIL PAN SUB-ASSEMBLY

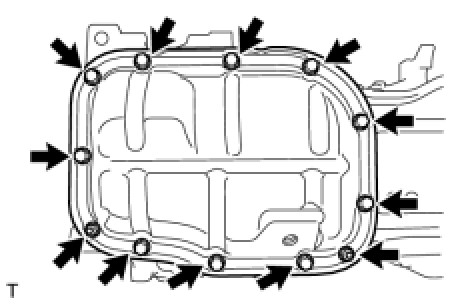

Install the No. 2 oil pan with the 10 bolts and 2 nuts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
