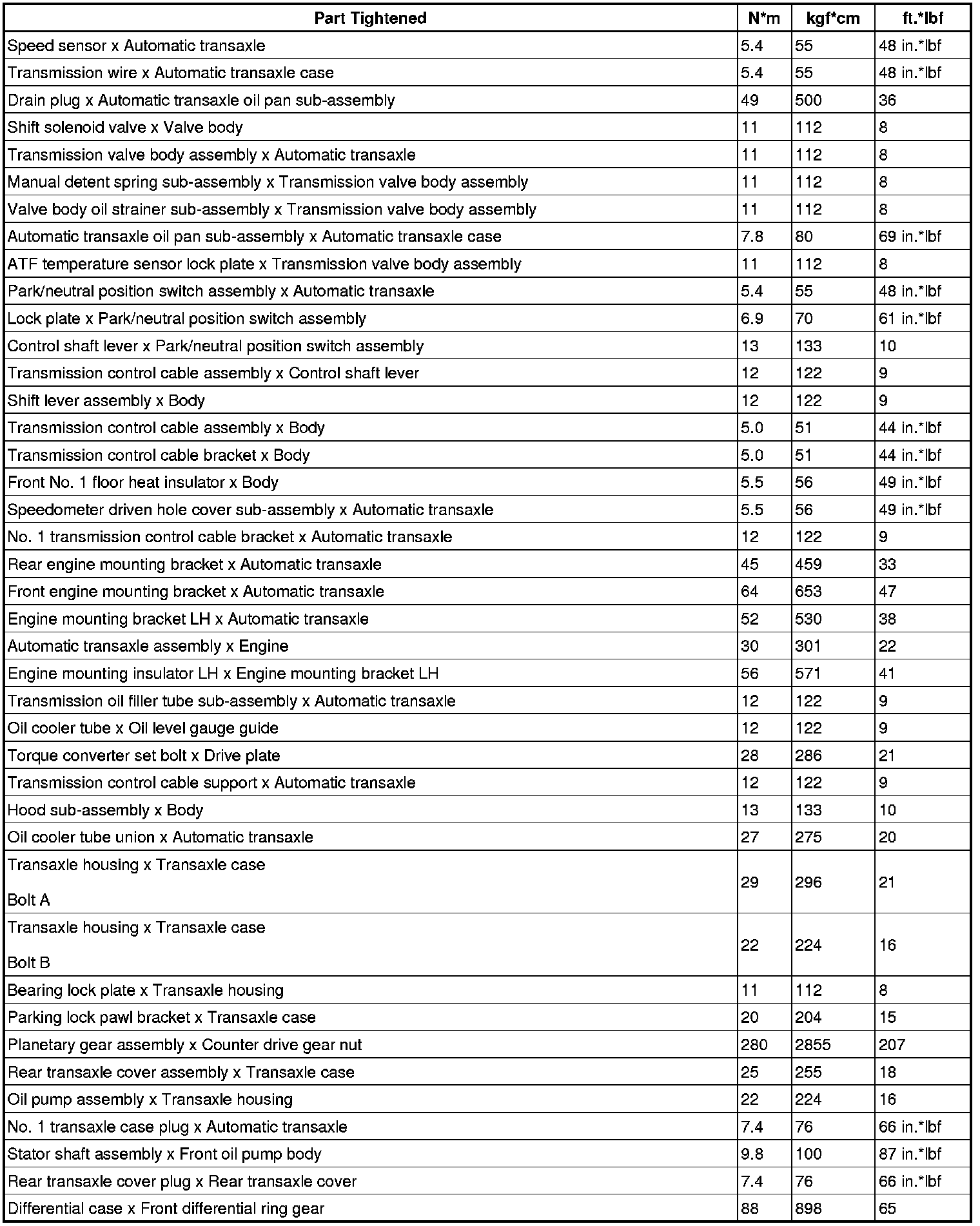

Torque Specifications








SPECIFICATIONS: U341E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
