Back-Up Light Switch: Components

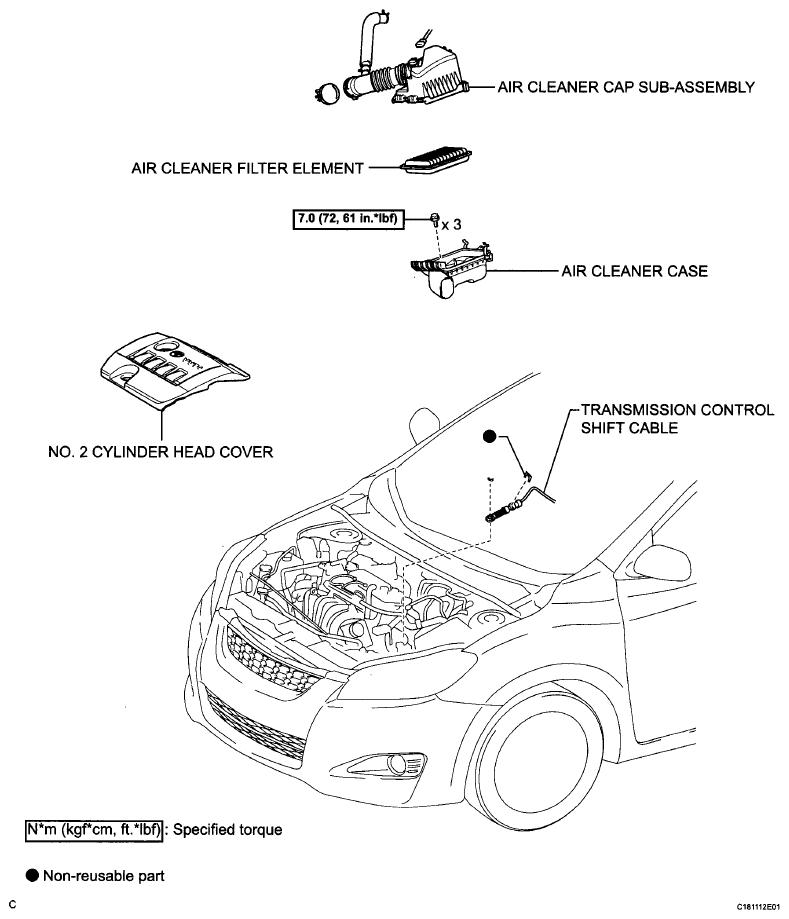

Fig 1: Back-Up Light Switch Replacement Components With Torque Specifications (1 Of 2)
G06045069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

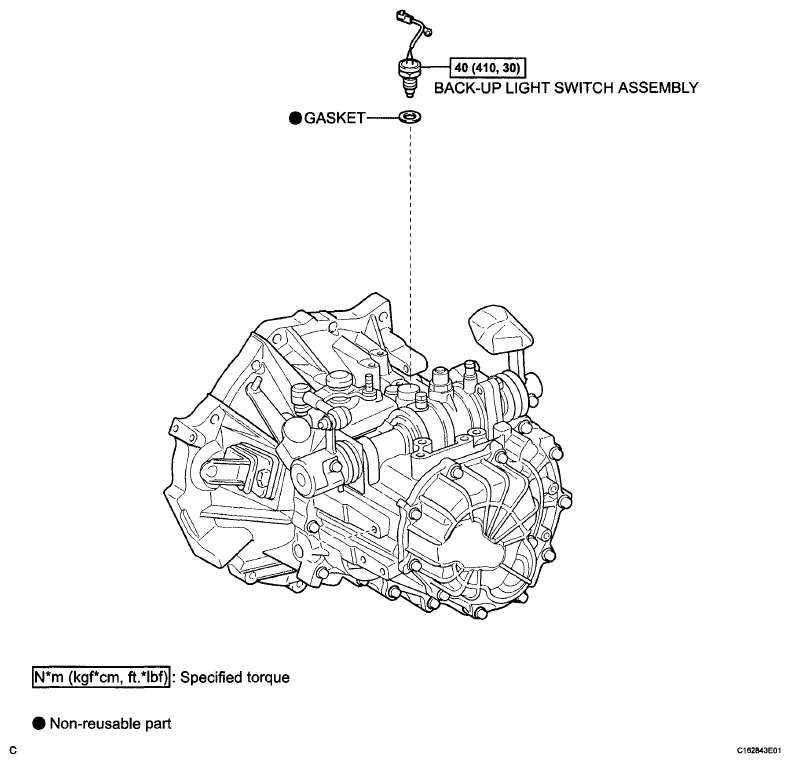

Fig 2: Back-Up Light Switch Replacement Components With Torque Specifications (2 Of 2)
G06012703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
