Mode 6 - TOYOTA
>>
CAMRY
>>
2AZ-FE 2.4L HV
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
2AZ-FE 2.4L HV

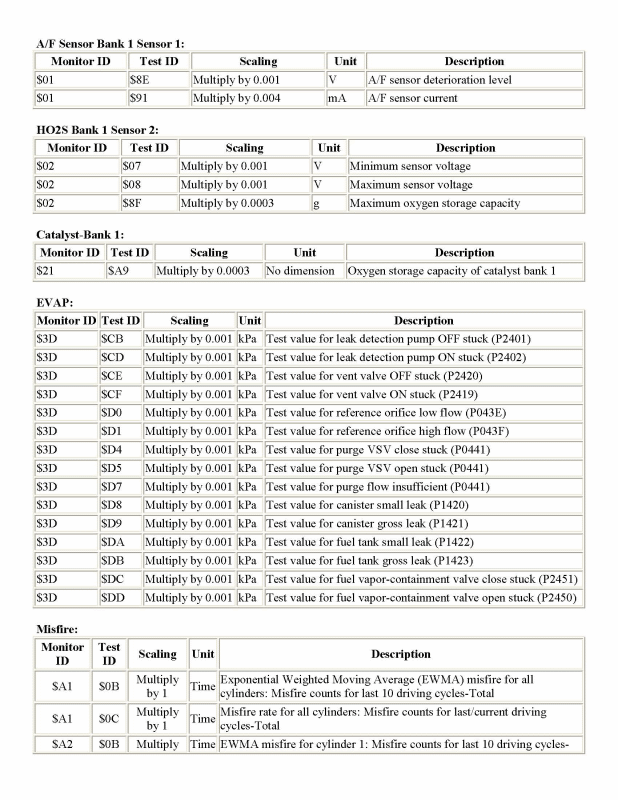

Fig 1: Mode 6 Data For Camry Hybrid (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

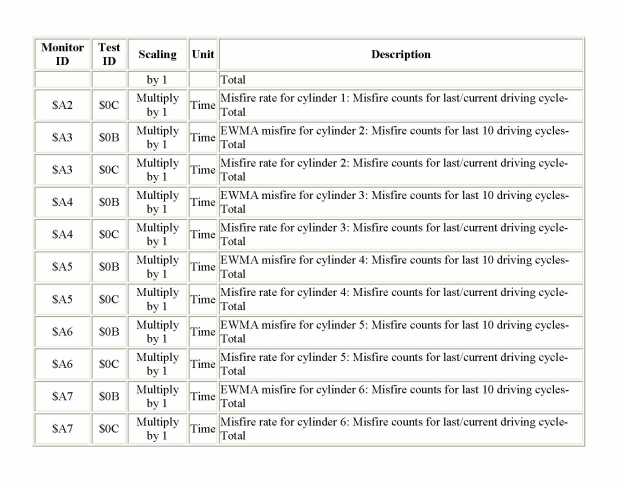

Fig 2: Mode 6 Data For Camry Hybrid (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
