BRAKE ACTUATOR (w/o VSC): Components

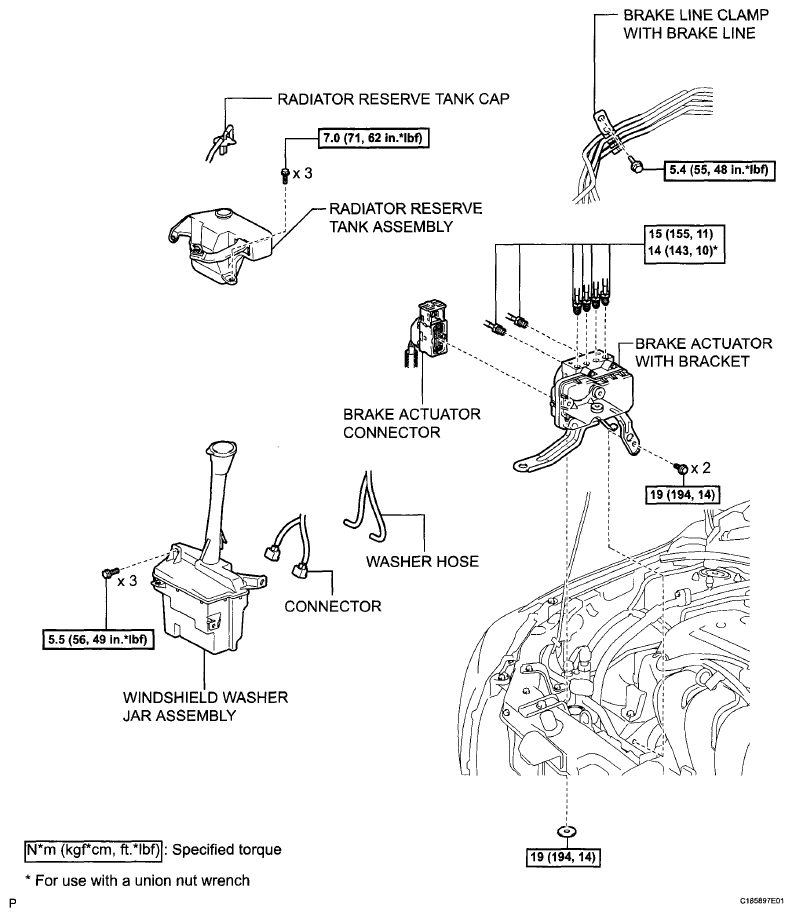

Fig 1: Brake Actuator Related Replacement Components With Torque Specifications

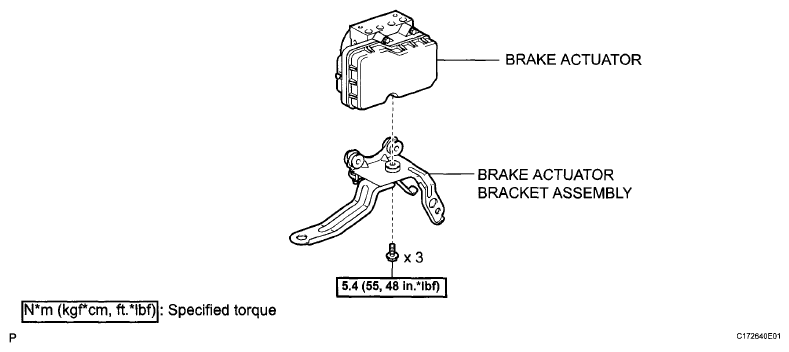

Fig 2: Brake Actuator And Brake Actuator Bracket Assembly With Torque Specifications
