System Diagram

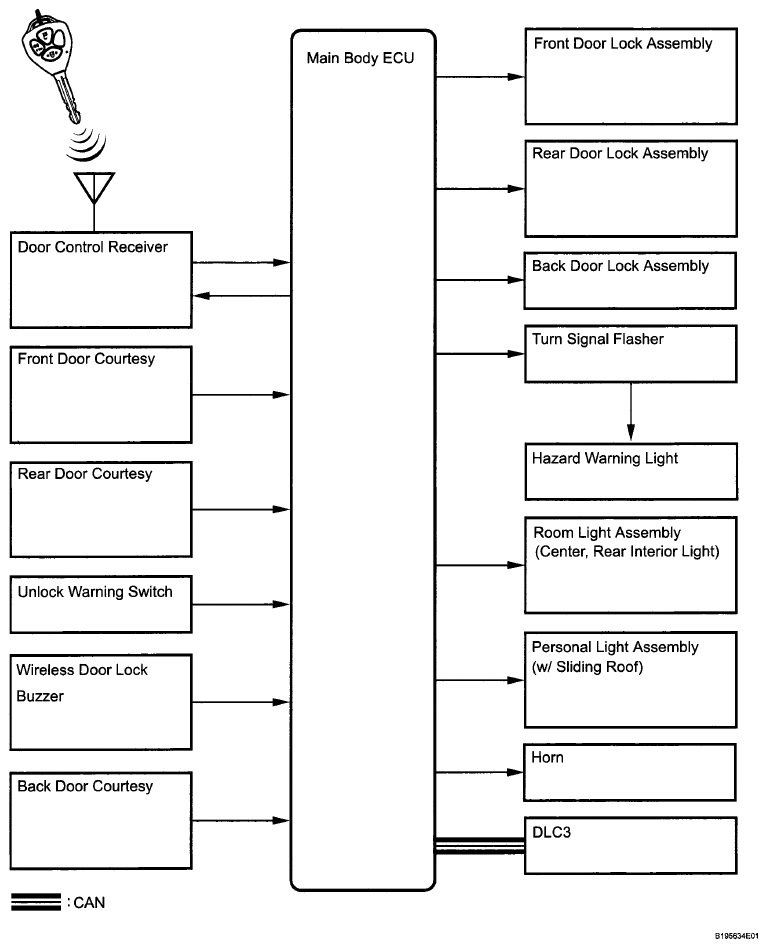

Fig 1: Wireless Door Lock Control System Diagram
G06036334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
