Front Door Lock: Components

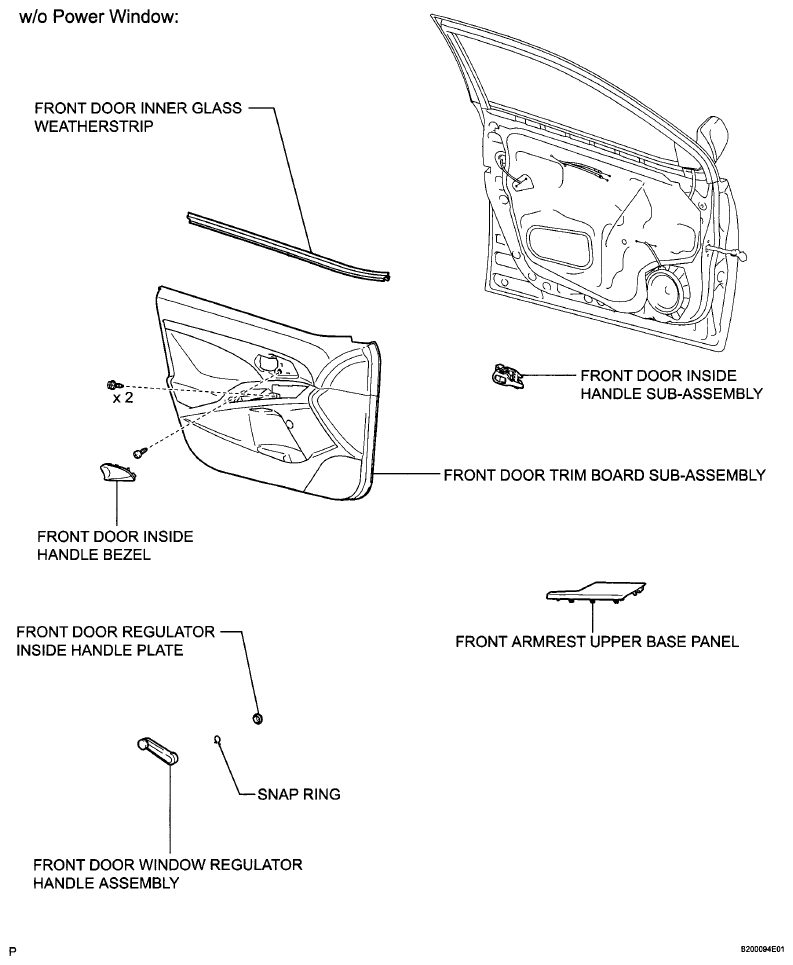

Fig 1: Identifying Front Door Lock Components (1 Of 4)
G06036388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

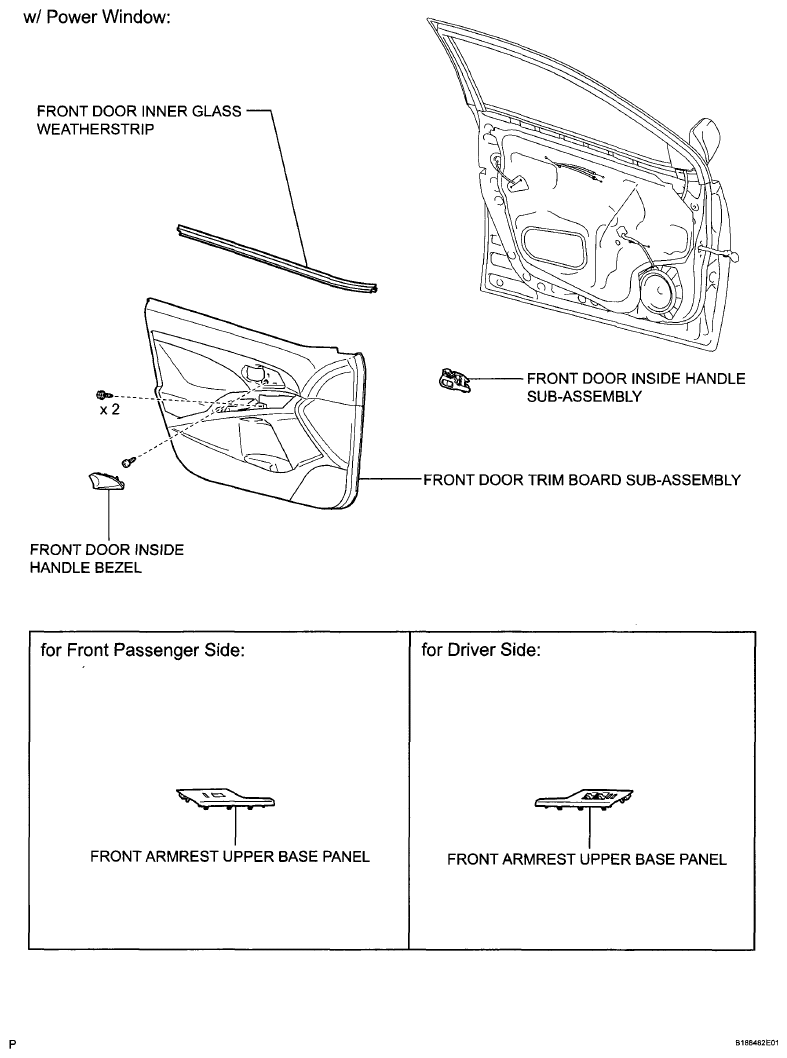

Fig 2: Identifying Front Door Lock Components (2 Of 4)
G06036389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

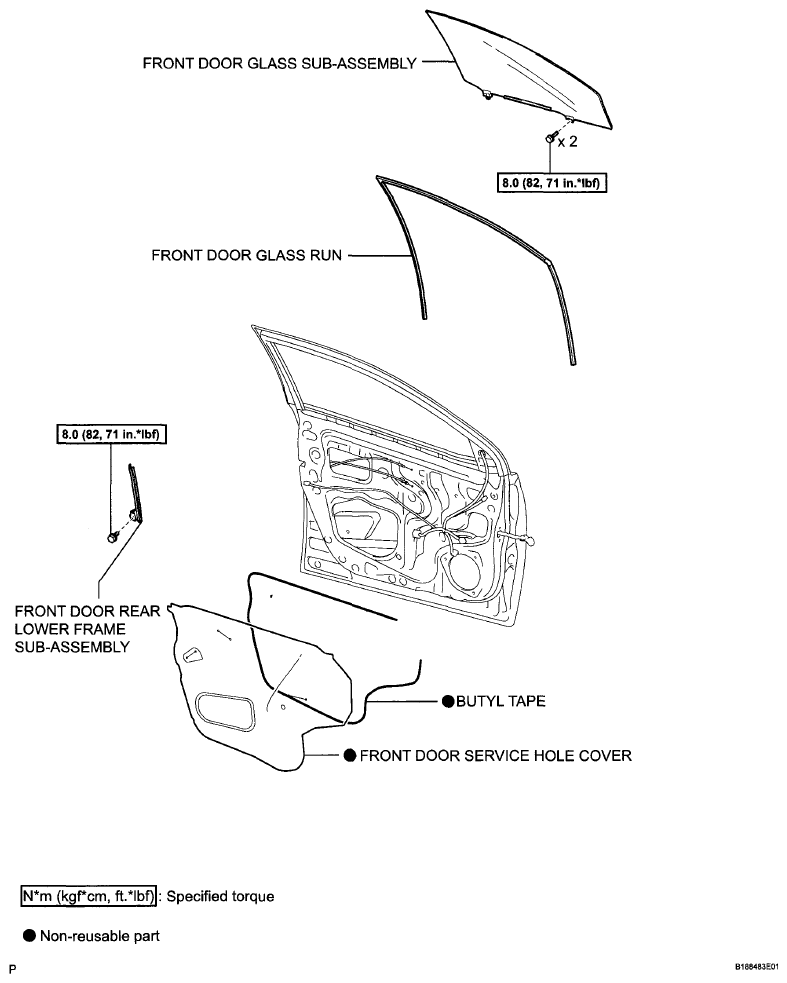

Fig 3: Front Door Lock Replacement Components With Torque Specifications (3 Of 4)
G06036390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

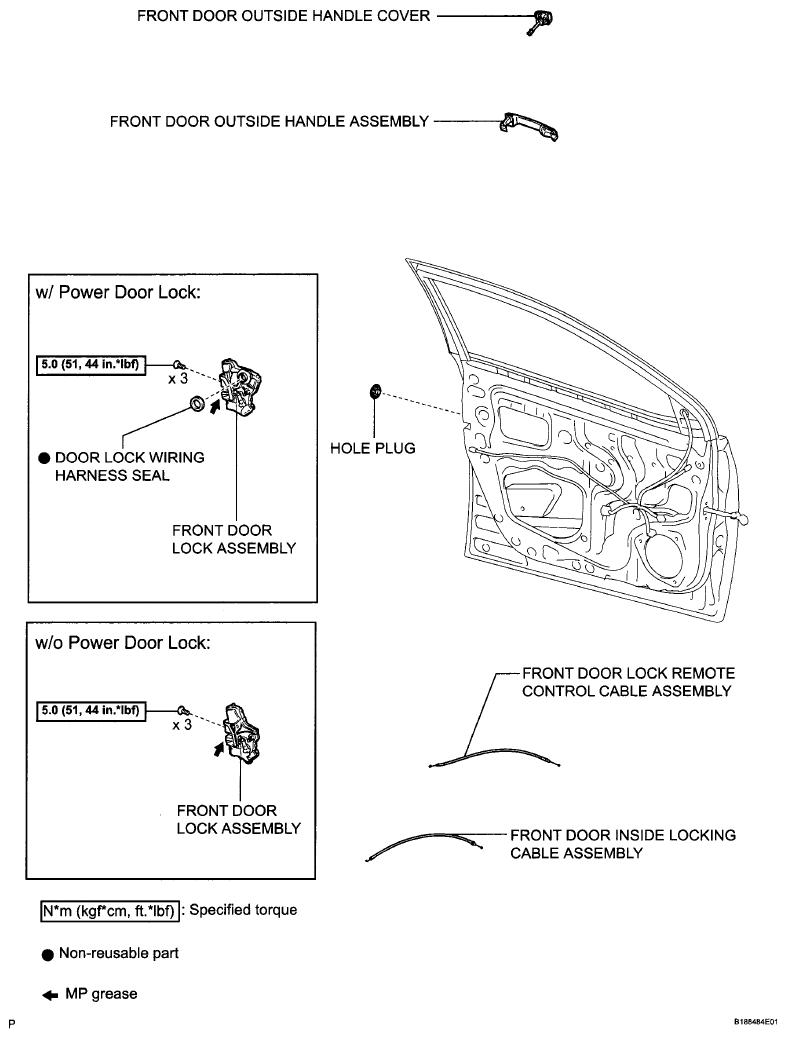

Fig 4: Front Door Lock Replacement Components With Torque Specifications (4 Of 4)
G06036391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
