System Diagram

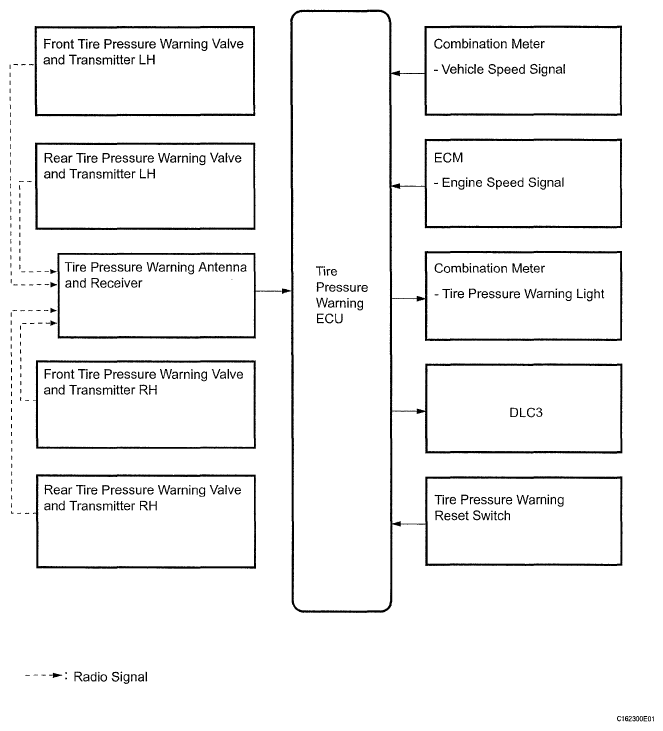

Fig 1: Tire Pressure Warning System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each tire pressure warning valve and transmitter sends information on the temperature inside the tire, the transmitter ID, and the tire pressure.
