Navigation Receiver: Removal

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
    1. Remove the 4 bolts and navigation receiver assembly with bracket.
    2. Disconnect each connector.

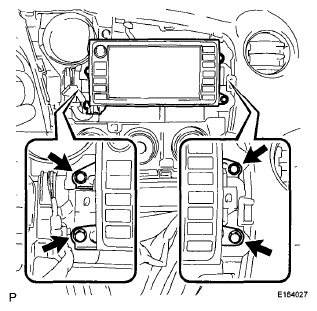

      Fig 1: Locating Navigation Receiver Assembly With Bracket And Bolts
      G06035991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 4 screws and No. 1 radio bracket.
      Fig 2: Locating No. 1 Radio Bracket And Screws
      G06035992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 4 screws and No. 2 radio bracket.
  5. REMOVE NAVIGATION RECEIVER ASSEMBLY
