Parts Location

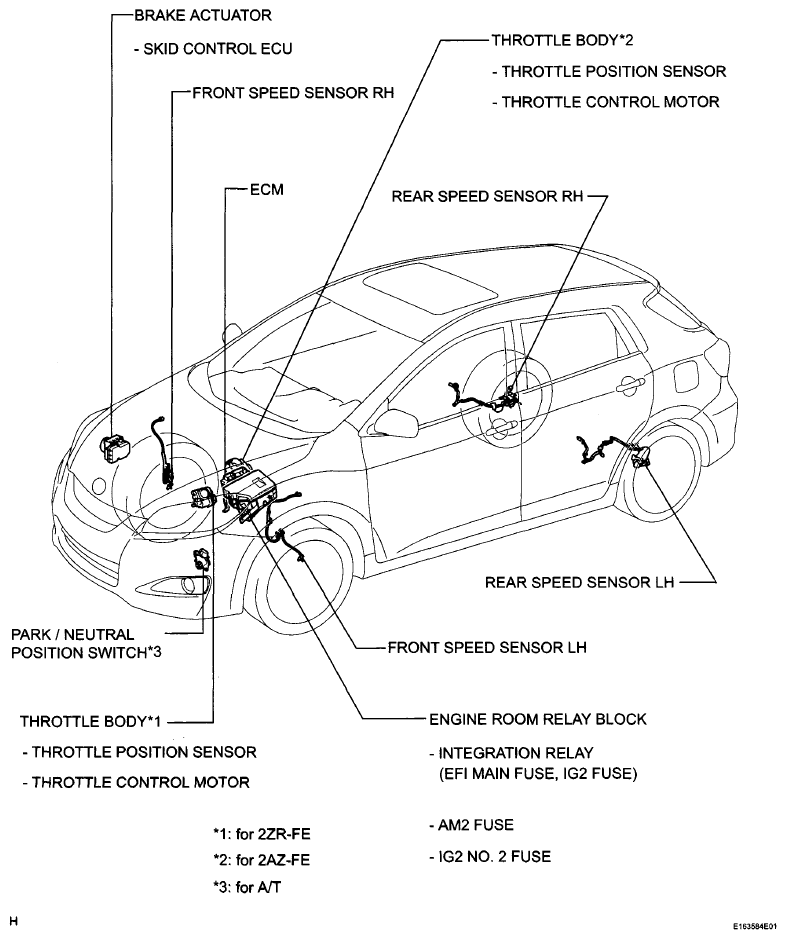

Fig 1: Identifying Cruise Control System Parts Location (1 Of 2)
G06043017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

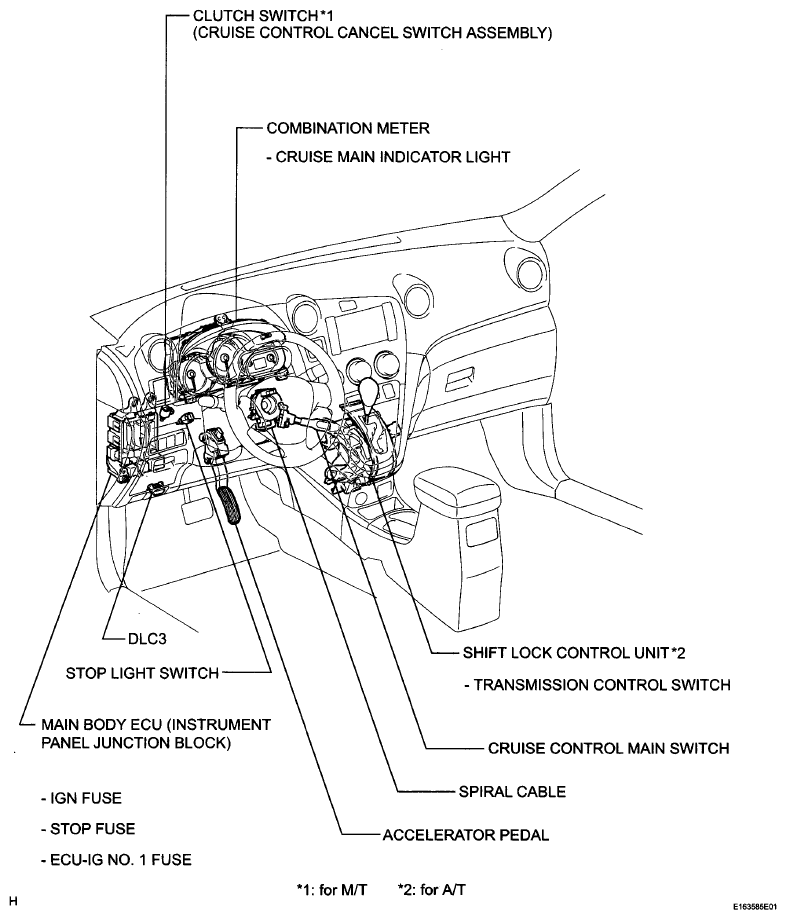

Fig 2: Identifying Cruise Control System Parts Location (2 Of 2)
G06043018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
