Network Gateway Ecu: Installation

INSTALL NETWORK GATEWAY ECU
1. Install the network gateway ECU with the bolt.

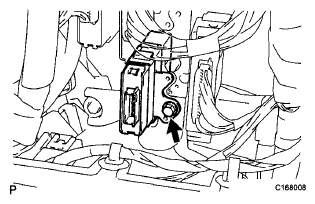

  Fig 1: Locating Network Gateway ECU And Mounting Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

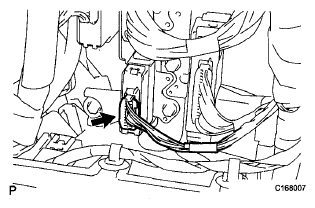

  Fig 2: Locating Network Gateway ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
