System Diagram

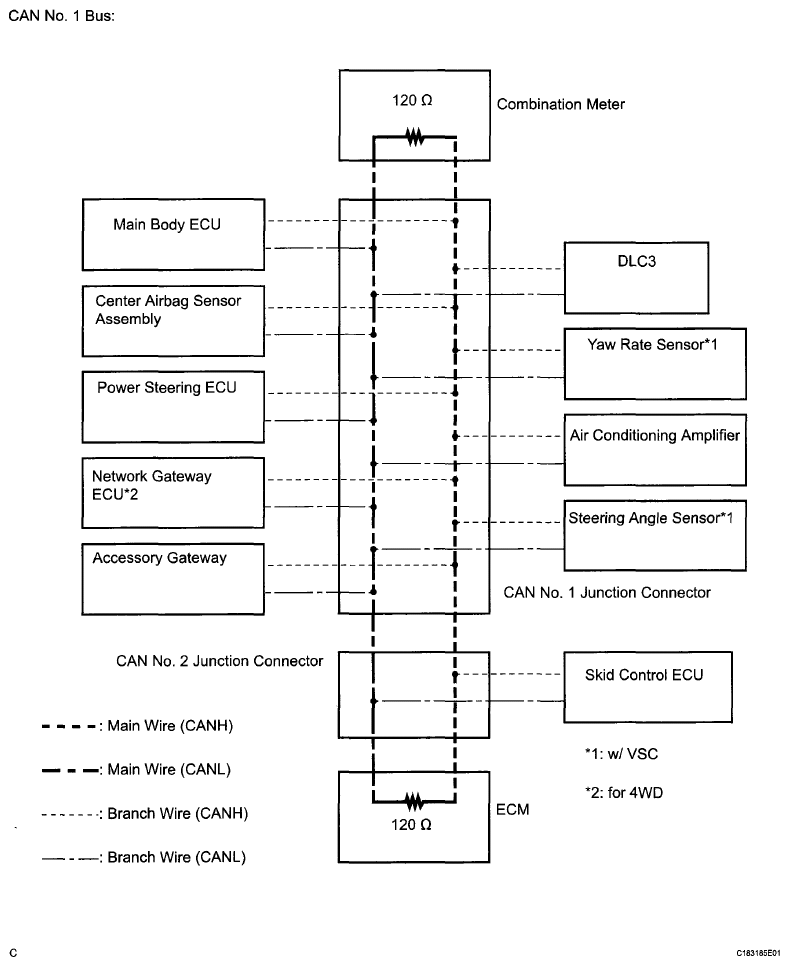

Fig 1: CAN Communication System Diagram (CAN No.1 Bus)
G06036119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

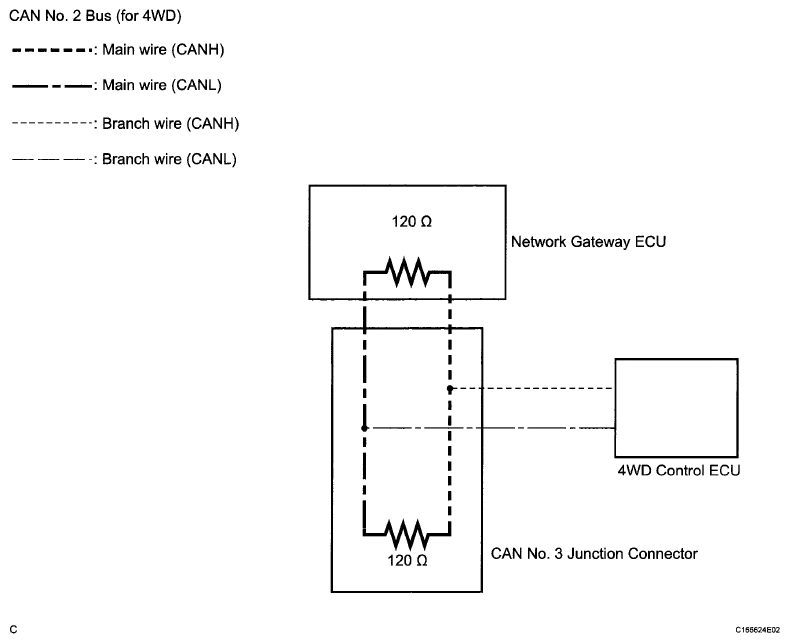

Fig 2: CAN Communication System Diagram (CAN No.2 Bus)
G06036120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
