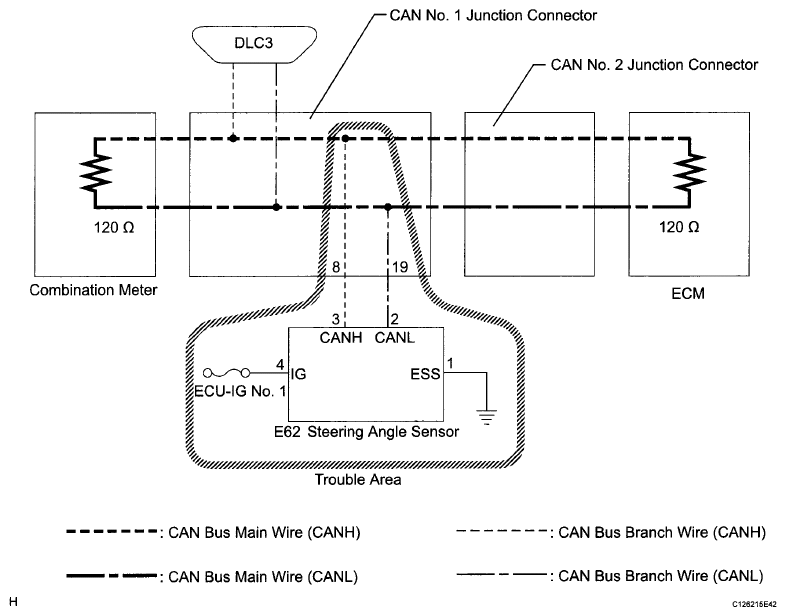

Steering Angle Sensor Communication Stop Mode: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
