Gateway ECU Communication Stop Mode: Wiring Diagram

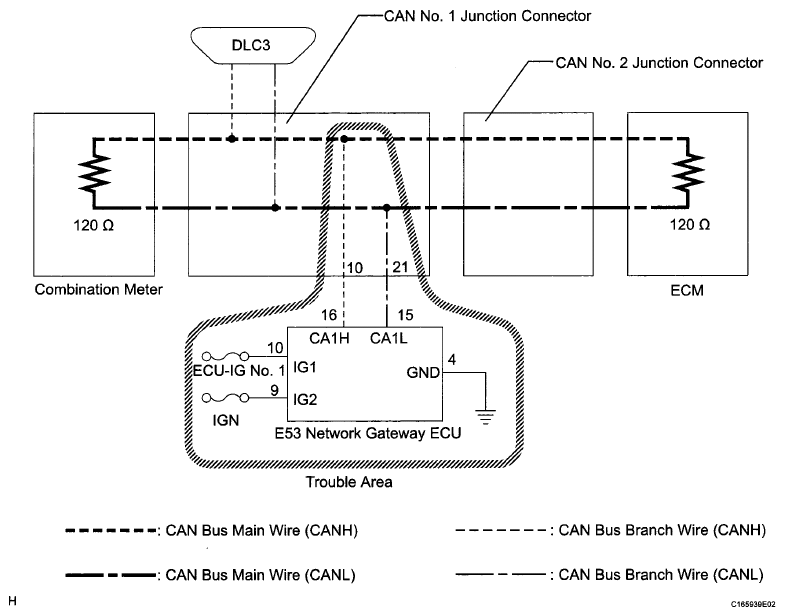

Fig 1: Gateway ECU Communication - Wiring Diagram
G06036163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
