Engine Coolant Temperature Sensor: Components

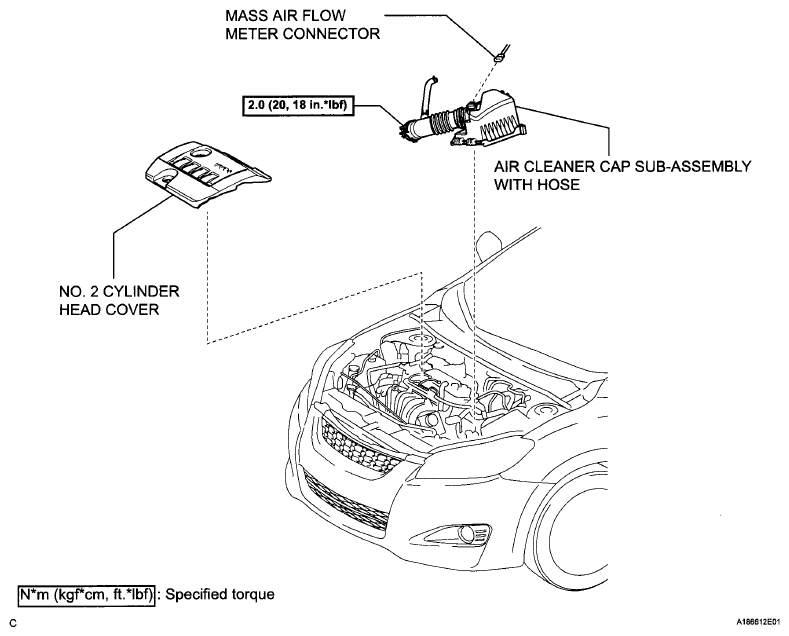

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components And Torque Specifications (1 Of 2)
G06040768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

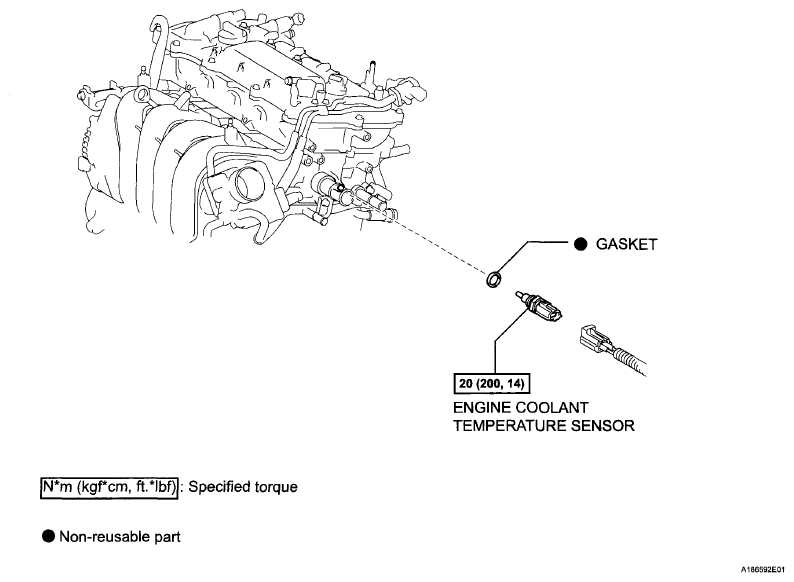

Fig 2: Identifying Engine Coolant Temperature Sensor Replacement Components And Torque Specifications (2 Of 2)
G06008158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
