Luggage Speaker: Components

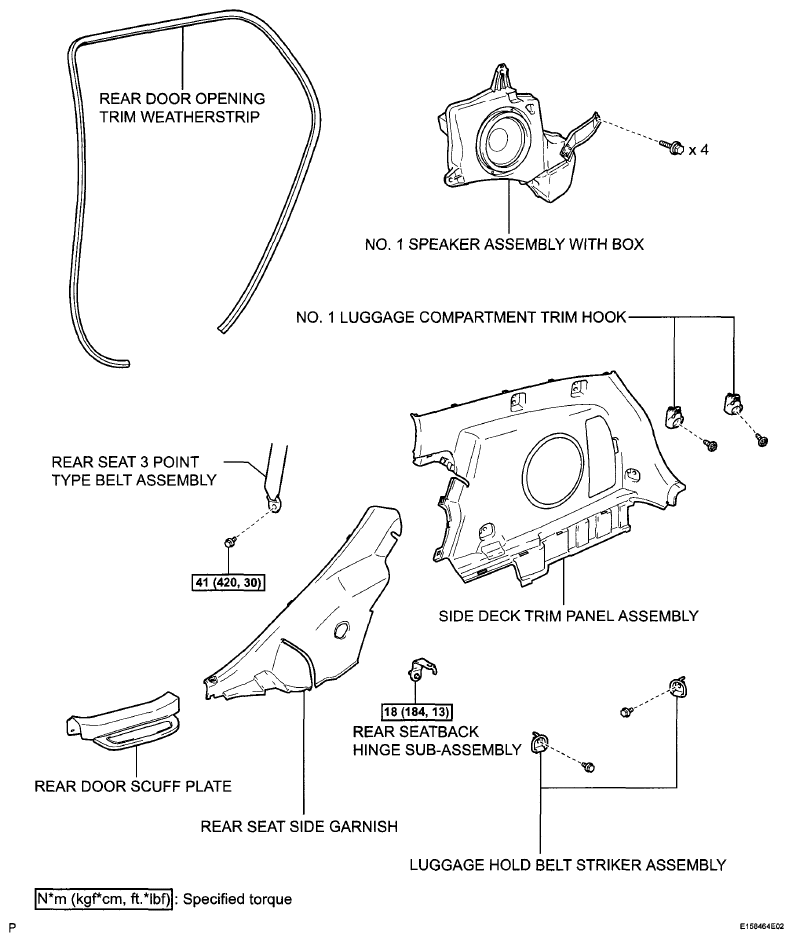

Fig 1: Luggage Speaker Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Radio Antenna Cord Replacement Components With Torque Specifications (8 Of 14)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Luggage Speaker Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
