Vehicle Stability Control System

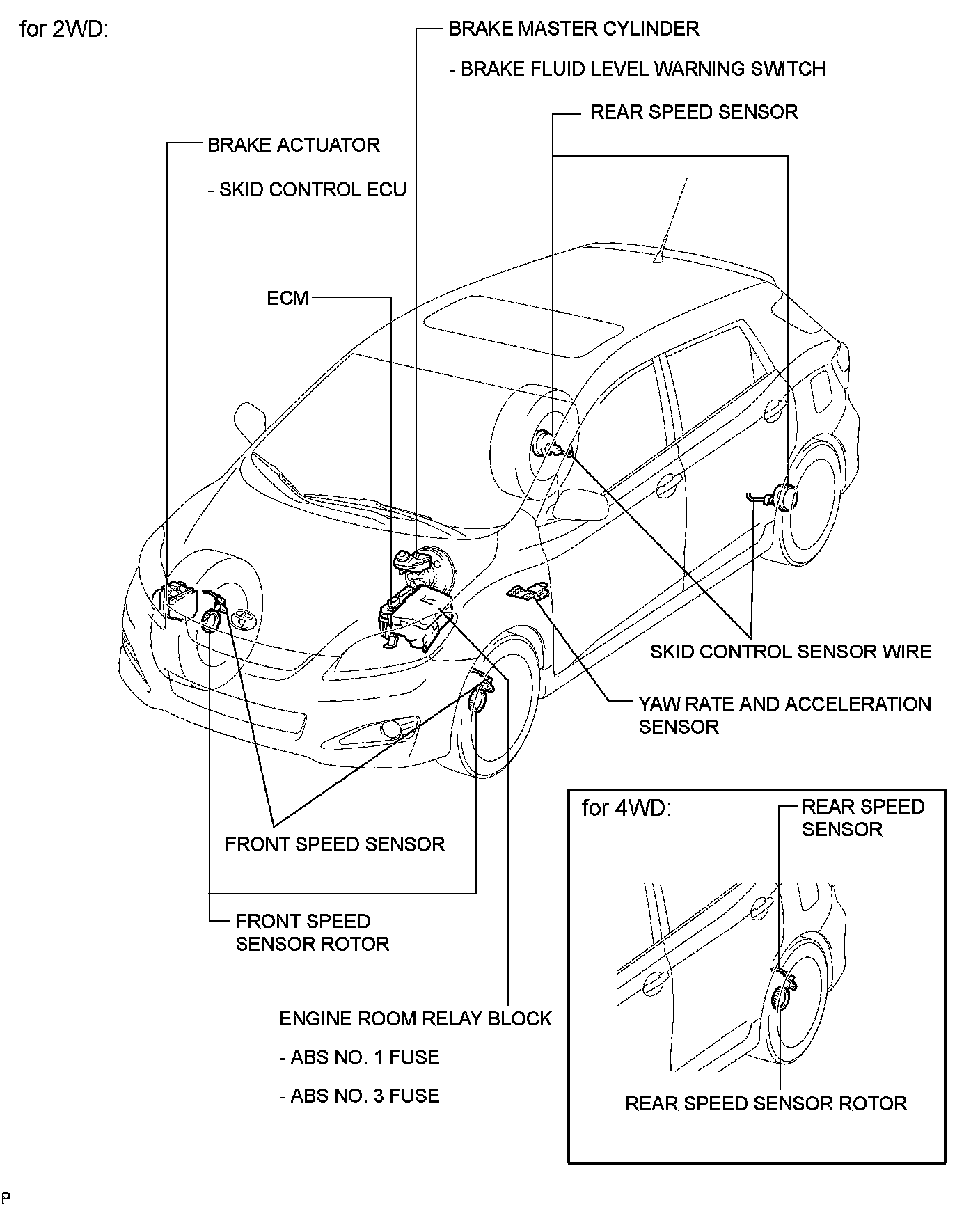

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
