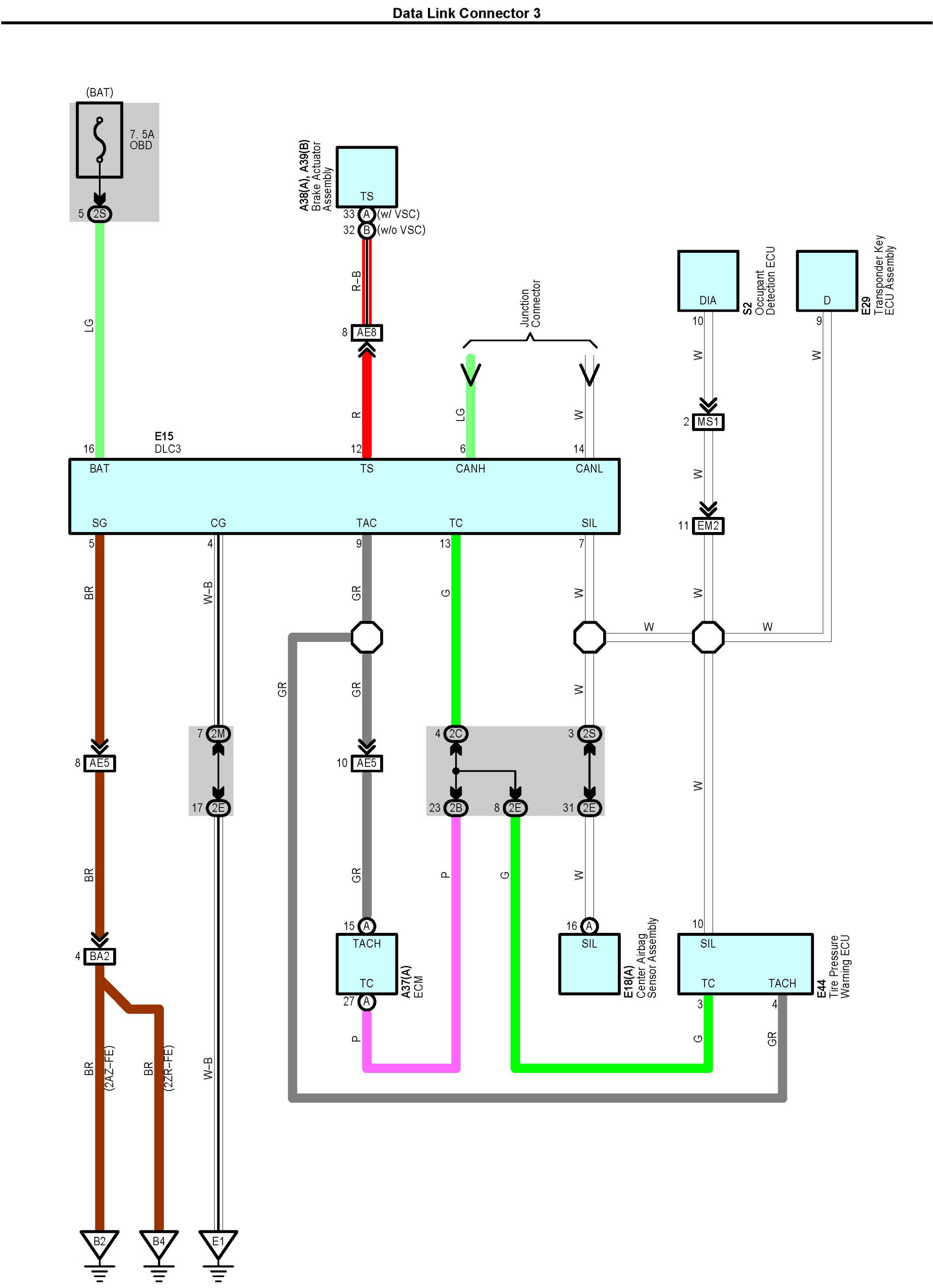

Electrical Diagrams

Data Link Connector 3:

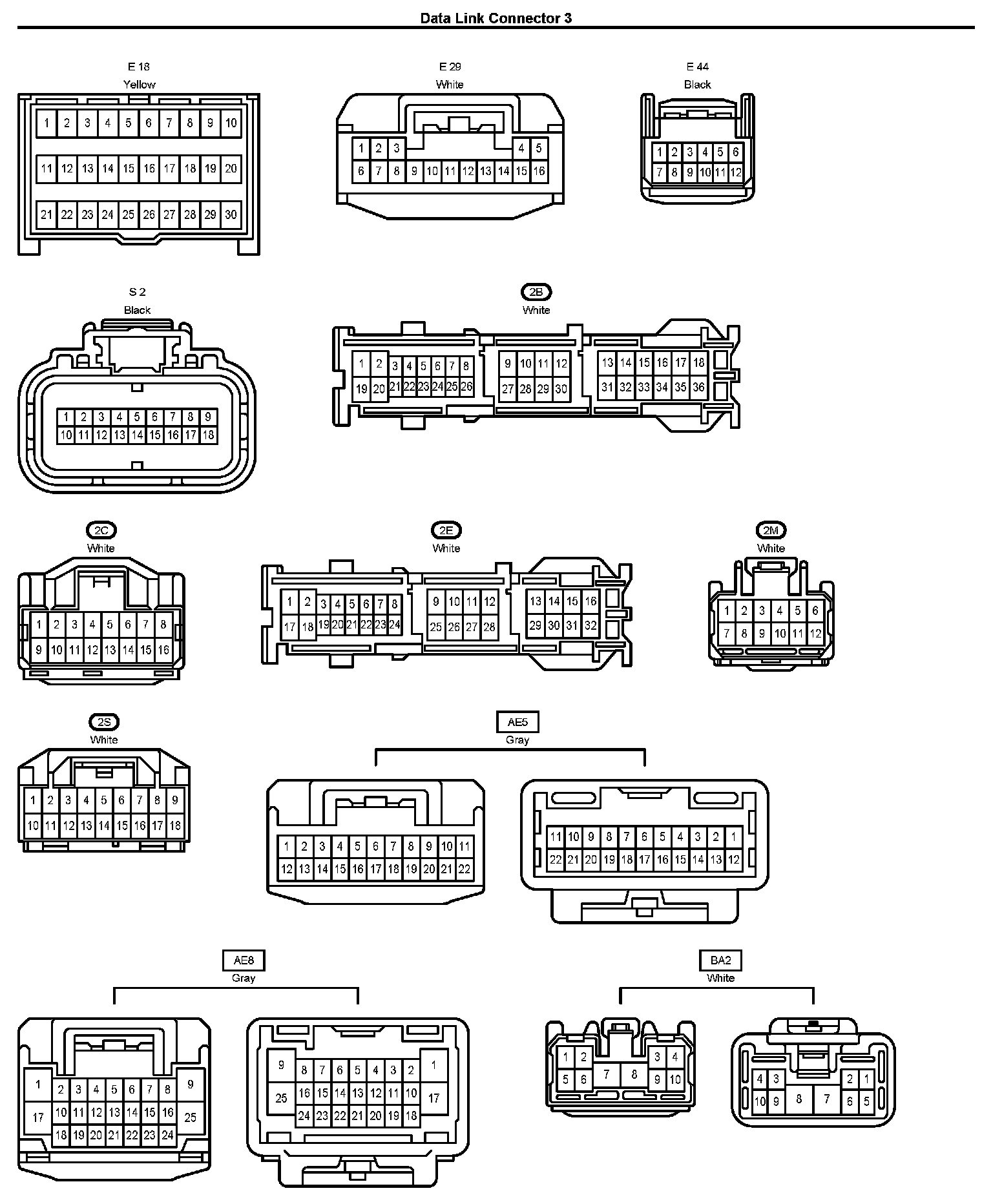

Connectors Part 1:

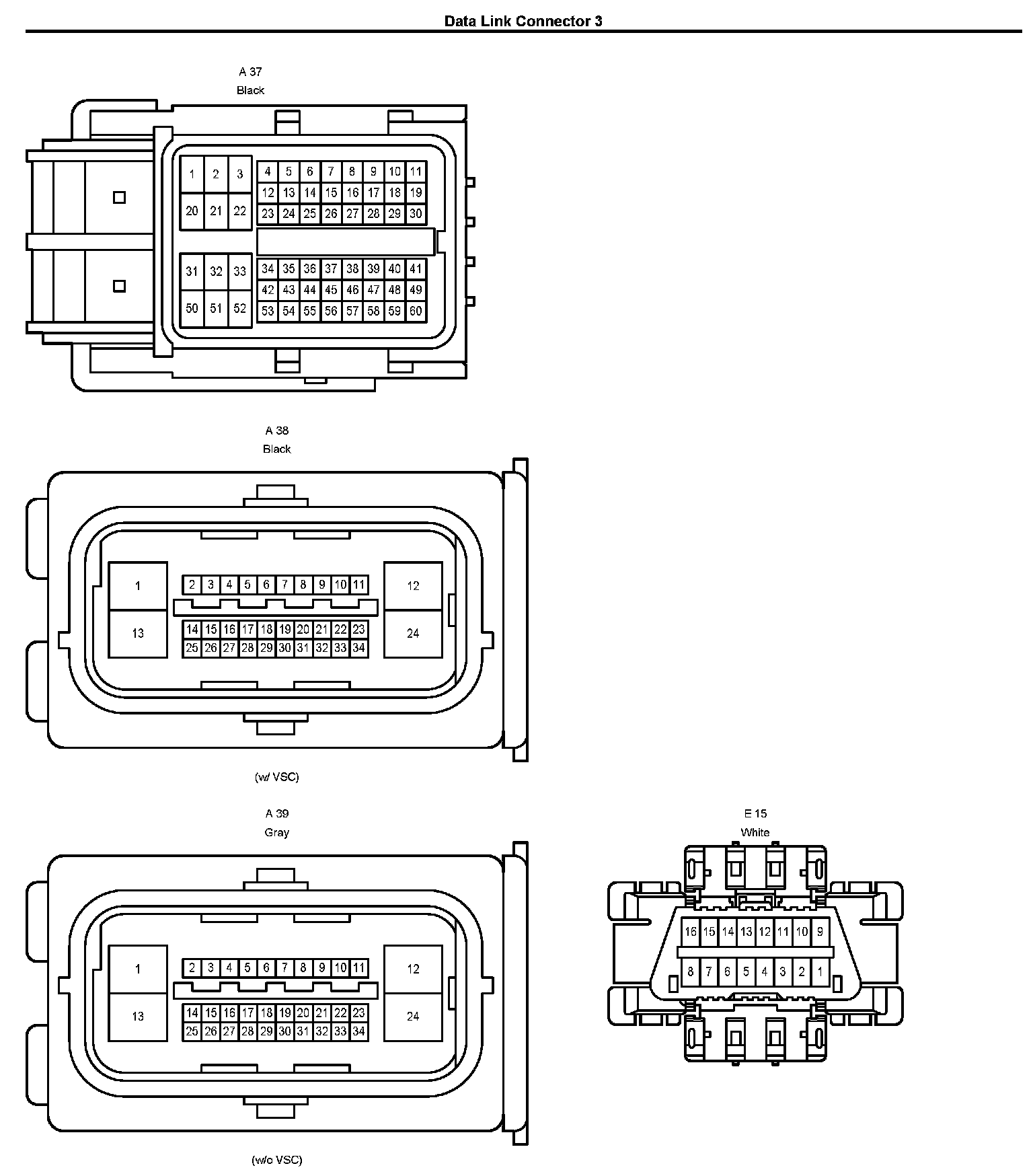

Connectors Part 2:

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
