Initialization

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: INITIALIZATION

INITIALIZATION

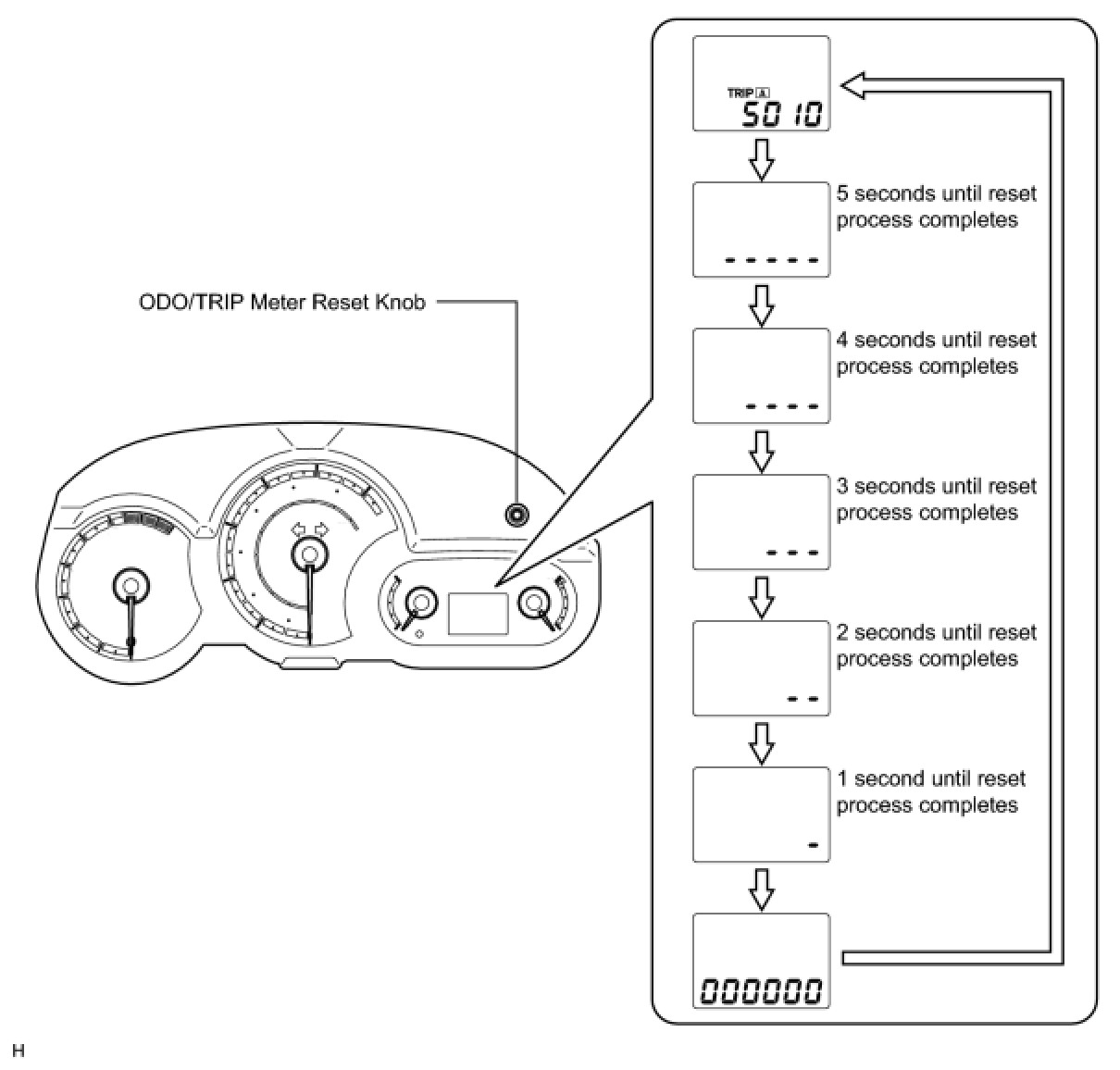

1. OIL MAINTENANCE REMINDER RESET PROCEDURE
HINT:
- The ODO/TRIP meter reset knob is located on the right side of the combination meter.
- This reset operation is required only for U.S.A.

(a) Turn the ignition switch to ON.
(b) Press the ODO/TRIP meter reset knob until the TRIP A meter appears.
(c) Turn the ignition switch off.
(d) Turn the ignition switch to ON while pressing and holding the ODO/TRIP meter reset knob. Hold the ODO/TRIP meter reset knob until the following conditions are met and 5 seconds have passed.




- The TRIP A meter shows "000000".
- The master caution indicator light illuminates.

(e) When "000000" disappears and the master caution indicator light turns off, the reset is complete.
