Heating and Air Conditioning: Locations

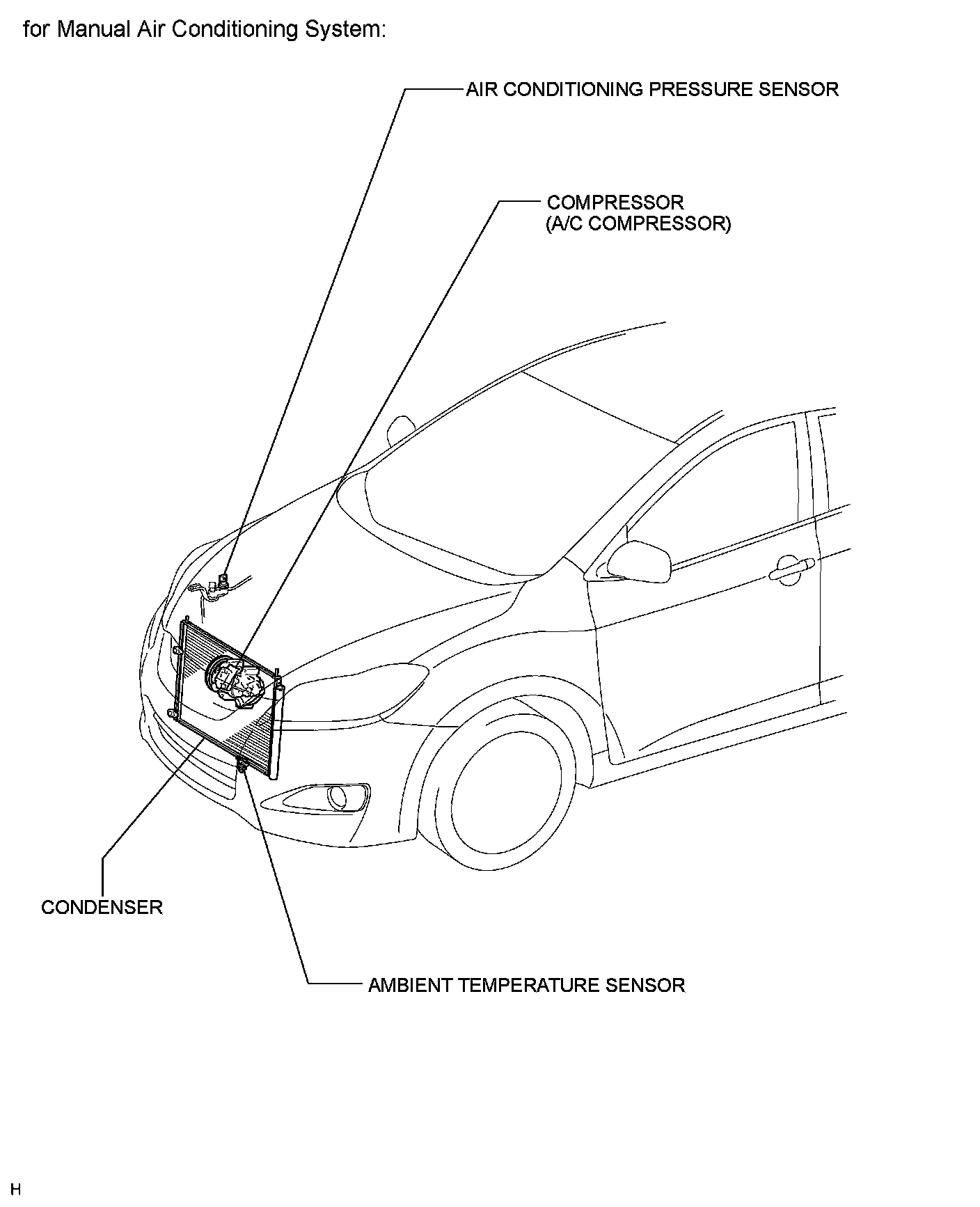

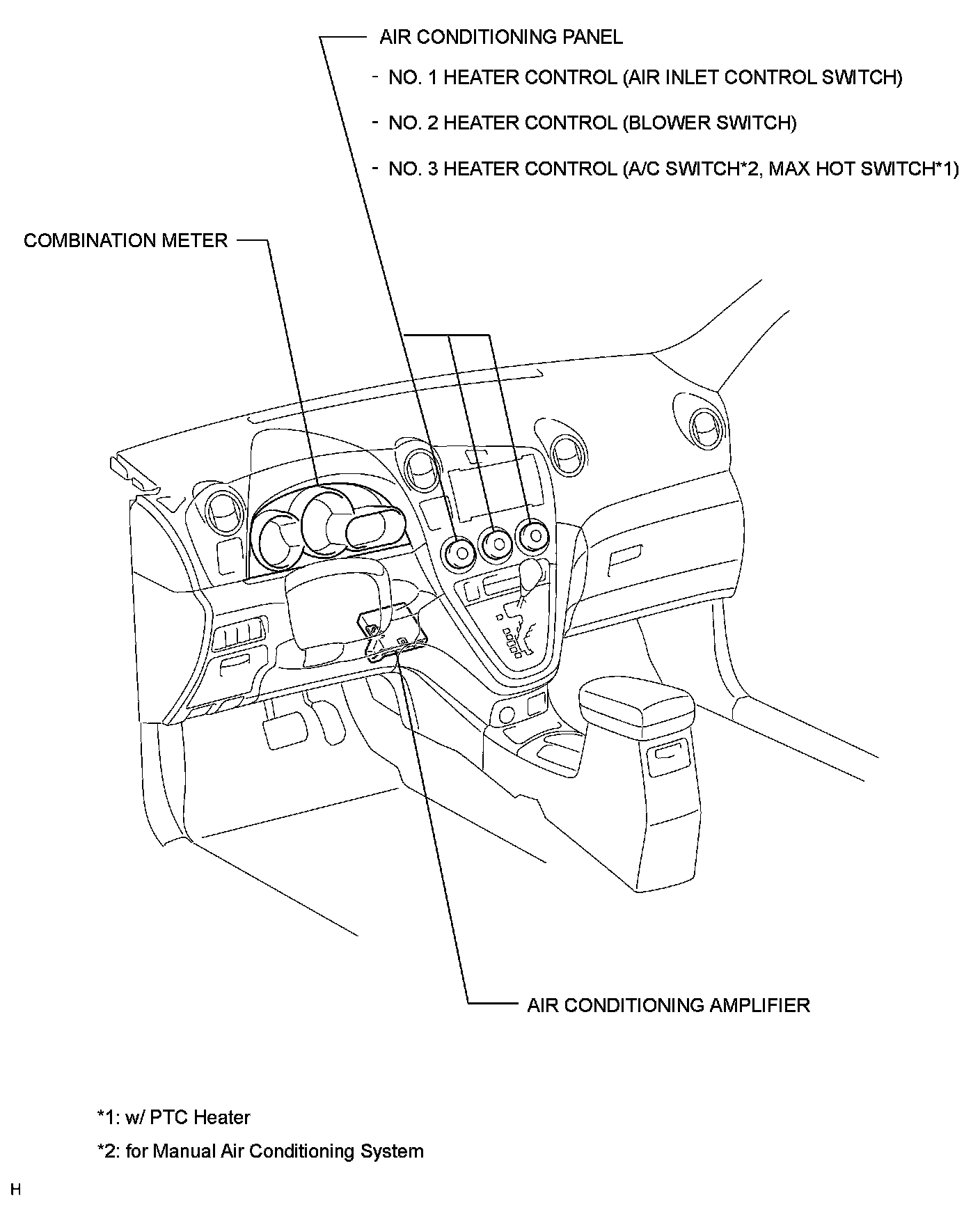

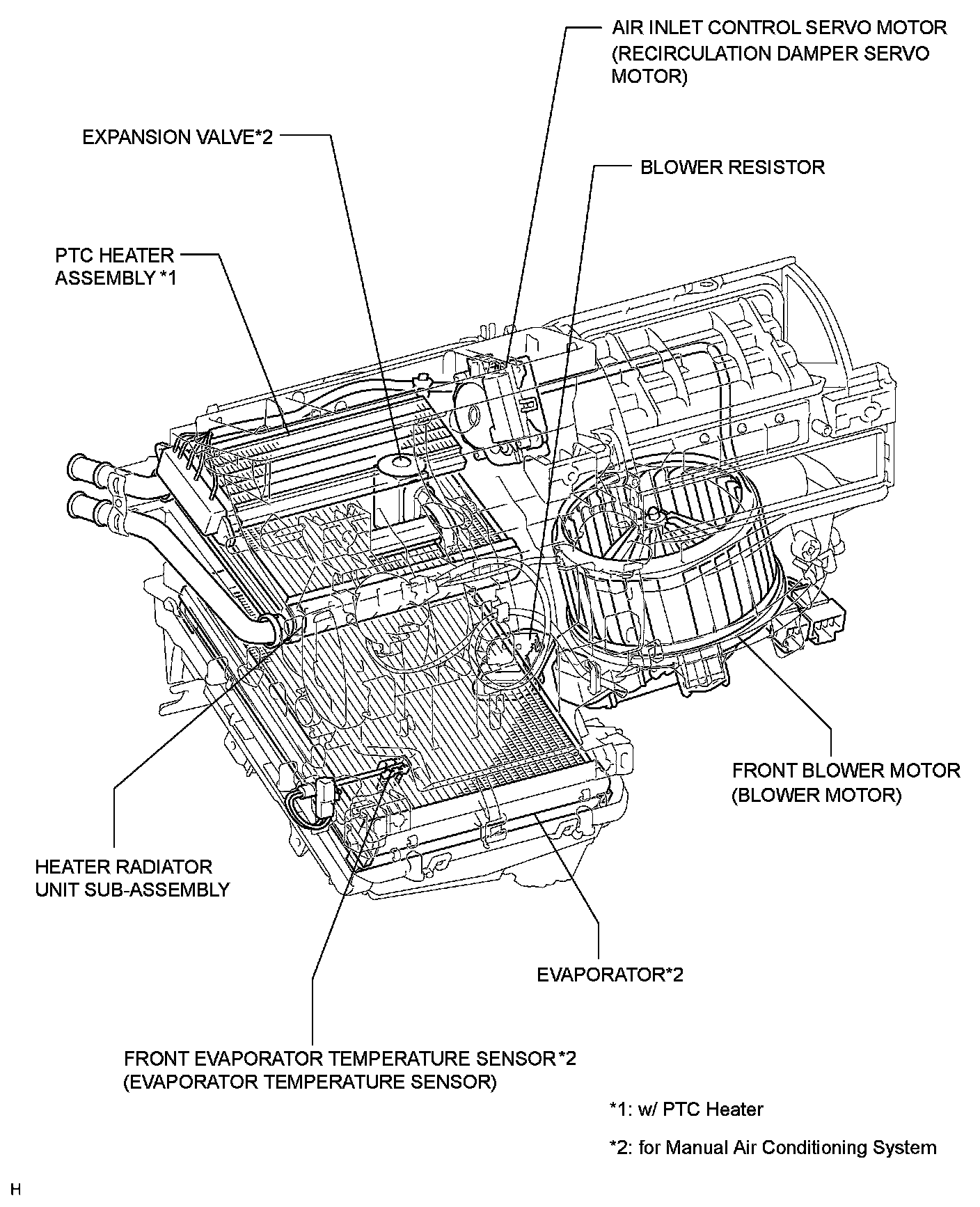

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
