Installation

HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

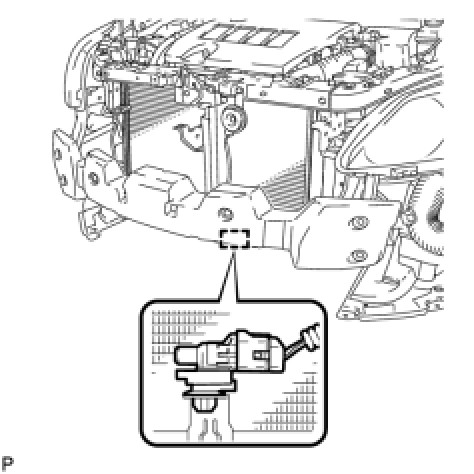

1. INSTALL AMBIENT TEMPERATURE SENSOR





(a) Engage the clamp to install the ambient temperature sensor.
(b) Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY (w/o Front Spoiler) Installation
3. INSTALL FRONT BUMPER ASSEMBLY (w/ Front Spoiler) Installation
4. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
5. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
6. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments
7. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
