Installation

DOOR LOCK: BACK DOOR LOCK: INSTALLATION

INSTALLATION

1. INSTALL BACK DOOR LOCK ASSEMBLY

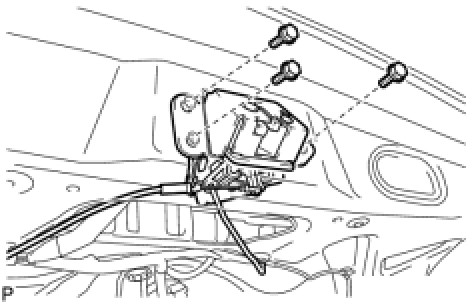

(a) Install the back door lock assembly with the 3 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)

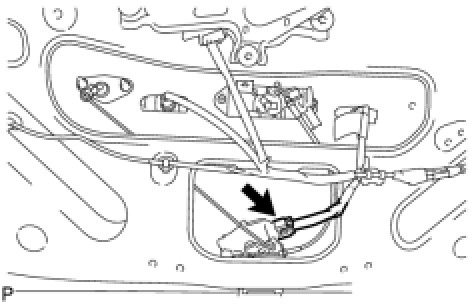

(b) Connect the connector.

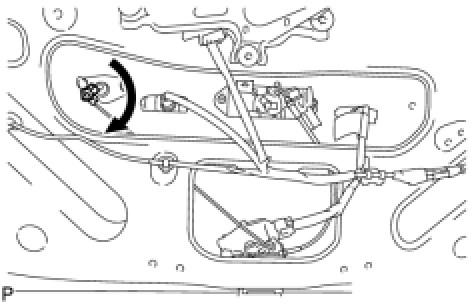

(c) Connect the rod as shown in the illustration.

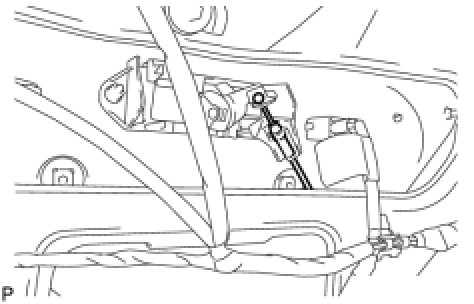

(d) Connect the back door lock control cable sub-assembly.
2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly
3. INSTALL BACK DOOR SIDE GARNISH LH Reassembly
4. INSTALL BACK DOOR SIDE GARNISH RH Reassembly
5. INSTALL BACK DOOR CENTER GARNISH Reassembly
