RADIO RECEIVER (w/Multi-display): Components

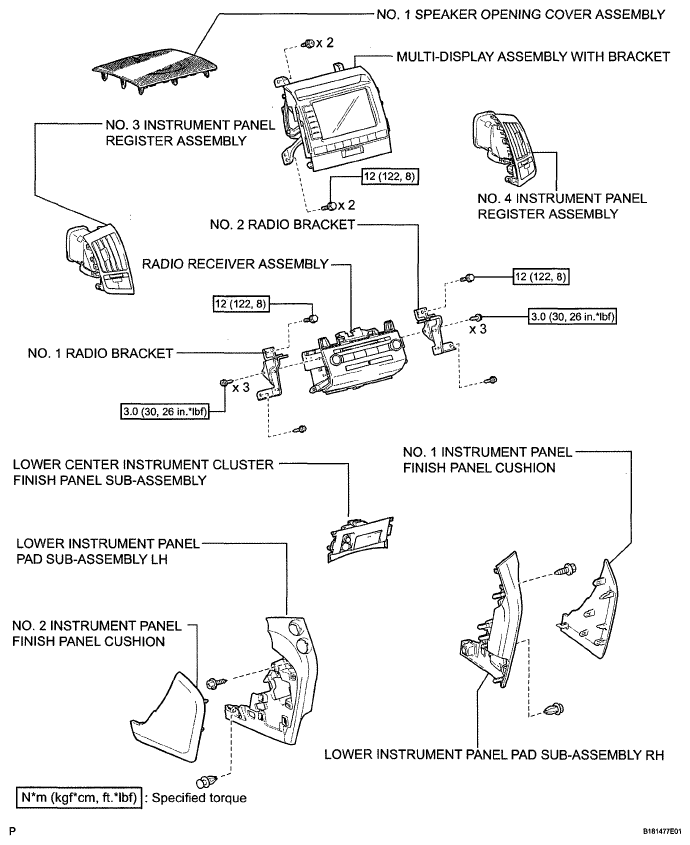

Fig 1: Identifying Radio Receiver Replacement Components With Torque Specifications (W/Multi-Display)
G05630444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
