Ignition Coil And Spark Plug: Components

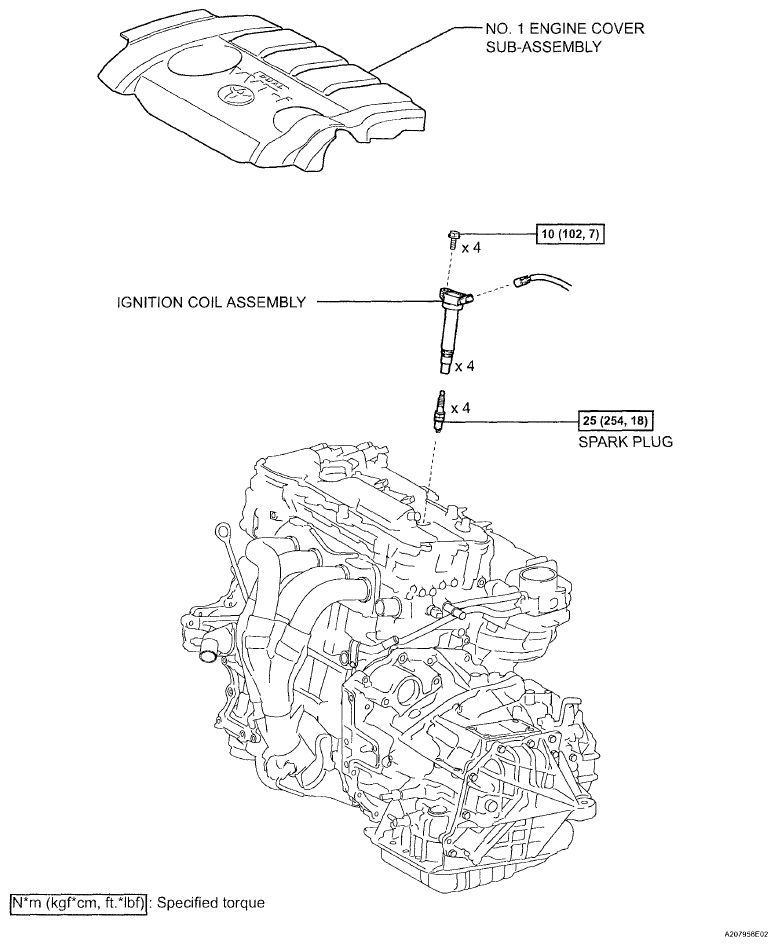

Fig 1: Identifying Ignition Coil And Spark Plug Components
G06115661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
