Removal

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH Removal
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH Removal
3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
4. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY Removal
5. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System) Removal
6. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

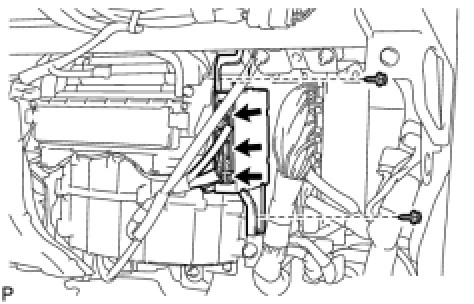

(a) Disconnect each connector.
(b) Remove the 2 screws and the air conditioning amplifier assembly.
