Installation

2AZ-FE STARTING: IGNITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

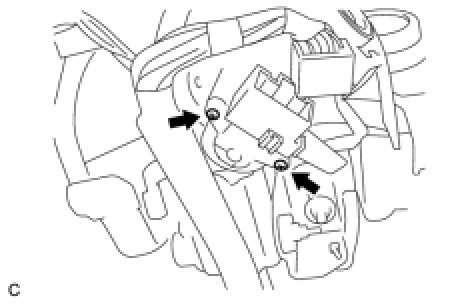

(a) Install the ignition switch with the 2 screws.

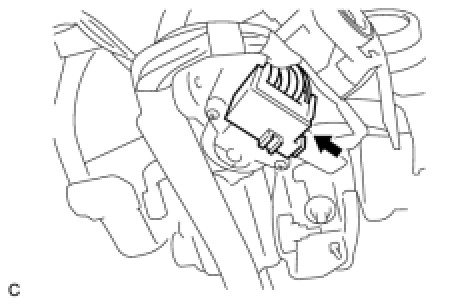

(b) Connect the connector.
2. INSTALL UPPER STEERING COLUMN COVER Installation
3. INSTALL LOWER STEERING COLUMN COVER Installation
4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
5. ADJUST SPIRAL CABLE Installation
6. INSTALL STEERING WHEEL ASSEMBLY Installation
7. INSTALL STEERING PAD Installation
8. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
9. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
10. INSPECT STEERING WHEEL CENTER POINT
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
HINT: Installation.

12. INSPECT STEERING PAD Installation
13. INSPECT SRS WARNING LIGHT
HINT: Diagnosis System.
