Water Pump

WATER PUMP ASSEMBLY

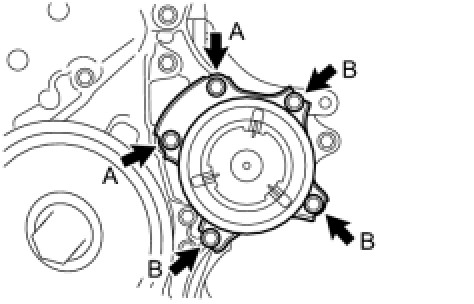

Install the water pump assembly to the timing chain cover with the 5 bolts.
Bolt A
Torque 26 Nm (260 kgf-cm, 19 ft-lbf)
Bolt B
Torque 24 Nm (245 kgf-cm, 18 ft-lbf)

Bolt Length:
